Copyright © 2015, Juniper Networks, Inc.
Fasten the four-post mounting shelf to the rear support bracket by partially inserting
8.
the screws provided in the accessory kit into the open holes on top of the four-post
mounting shelf.
NOTE:
Several holes are provided on top of the shelf. Two holes on each
side of the shelf will align with the holes in the rear support bracket.
Tighten all the screws completely.
9.

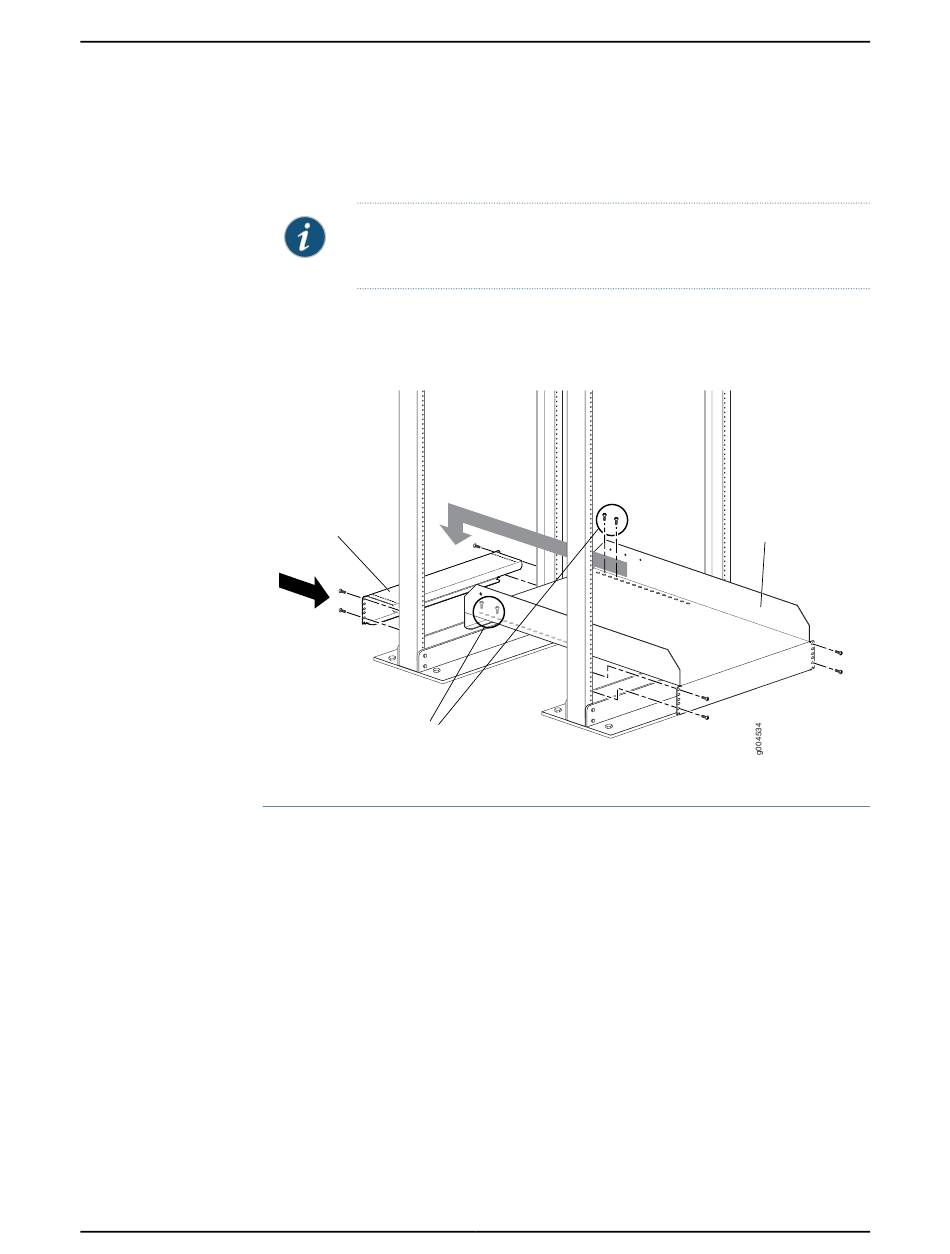

Figure 2: Installing the TX Matrix Plus Mounting Hardware for a Four-Post
Rack
Four-post mounting shelf
fits over the rear support
bracket.
Rear support bracket
These screws attach the four-post
mounting shelf to the rear support
bracket.
Remove the Center-Mounting Brackets
The center-mounting brackets are not used for a four-post rack, and must be removed
from the chassis.
To remove the center-mounting brackets from the chassis:
Loosen the screws from each bracket (see
1.
Remove each bracket.
2.
Remove the Center-Mounting Brackets
Four-post mounting shelf
Figure 3 on page
8).
7
