www.leeandplumpton.co.uk
ASSEMBLY INSTRUCTIONS
RANGE
Elect Coffee, Meeting and Poseur Tables
REF:
Coffee Table, Round and Square Top 600 and 800mm wide,
Meeting Table Round and Square Top 600 and 800mm wide,
Poseur Table Round Top 600mm wide.
Read this leaflet before
assembly
COMPONENT PARTS
Item 1
Brushed S/Steel Upright Leg
Qty,1
A/1785, A/1786, A/1787
Item 3
Item 4
Hex Head Screws
3/4" x 10g Pan Pozi BZP
Qty 4
Qty 8
A/1785, A/1786, A/1787
F/0475
TOOLS REQUIRED
• Pozi head screwdriver
2 People
Required
Item 2
X-Frame
Qty,1
A/1785, A/1786, A/1787
BEFORE YOU BEGIN...
• Check you have all the tools and components required
• Keep children and animals away from small parts
• Ensure you have adequate space
• Assemble product on a flat, clean surface
• Apply manual handling guidelines when building this item

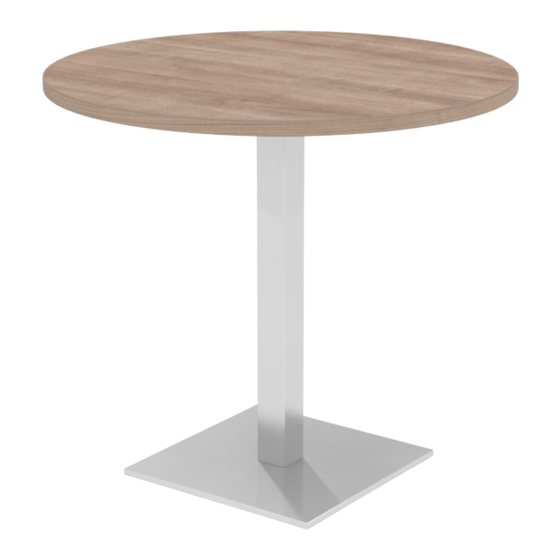

Meeting Table Round and Square Top 600mm wide shown.
Item 5
Elect Table Top
Qty,1
1222, 1223, 1224, 1225
No.114 A/1883 Revision A 10/10/2018
Item 6
Base Plinth
Qty,1
A/1785, A/1786, A/1787
1
Advertisement
Related Manuals for Lee & Plumpton Meeting
Summary of Contents for Lee & Plumpton Meeting
-
Page 1: Tools Required
RANGE Elect Coffee, Meeting and Poseur Tables REF: Coffee Table, Round and Square Top 600 and 800mm wide, Meeting Table Round and Square Top 600 and 800mm wide, Poseur Table Round Top 600mm wide. Read this leaflet before 2 People... -
Page 2: Care And Maintenance
ASSEMBLY INSTRUCTIONS STEP 1 Hold the Upright Leg (1) vertically. Both ends are identical so it does not matter which end is up. Place the X-Frame (2) onto the Leg and attach it with Screws (3). Fully tighten the Screws. STEP 2 Lay the Top (5) upside down on a flat, soft surface.
