Altronix TSL2 Installation Manual page 2

and/or Sub-Assembly Boards and Sielox AC-1700 Modules
1. Fasten standoffs (provided) to pems that match the hole pattern for Altronix Power Supply/Chargers or Altronix
Sub-Assembly boards (Fig. 2, pg. 2). Fasten metal standoffs in the correct locations to provide proper grounding,
see below (Fig. 2, pg. 2).
Note: each Altronix sub-assembly position can accommodate one (1) ACM8/ACM8CB, PD4UL/PD4ULCB,
PD8UL/PD8ULCB, MOM5, PDS8(CB) or VR6.
2. Mount boards to standoffs utilizing 5/16" pan head screws (provided) (Fig. 2, 2a, pg. 2).
3. Mount Sielox AC-1700 modules into the correct positions (Fig. 2, pg. 2).
Note: Sielox AC-1700 boards have one (1) RJ45 jack each.
Please make sure that they are mounted correctly, as shown in Fig. 2 below
4. Fasten TSL2 backplane to Trove2 enclosure utilizing pan head screws (provided).

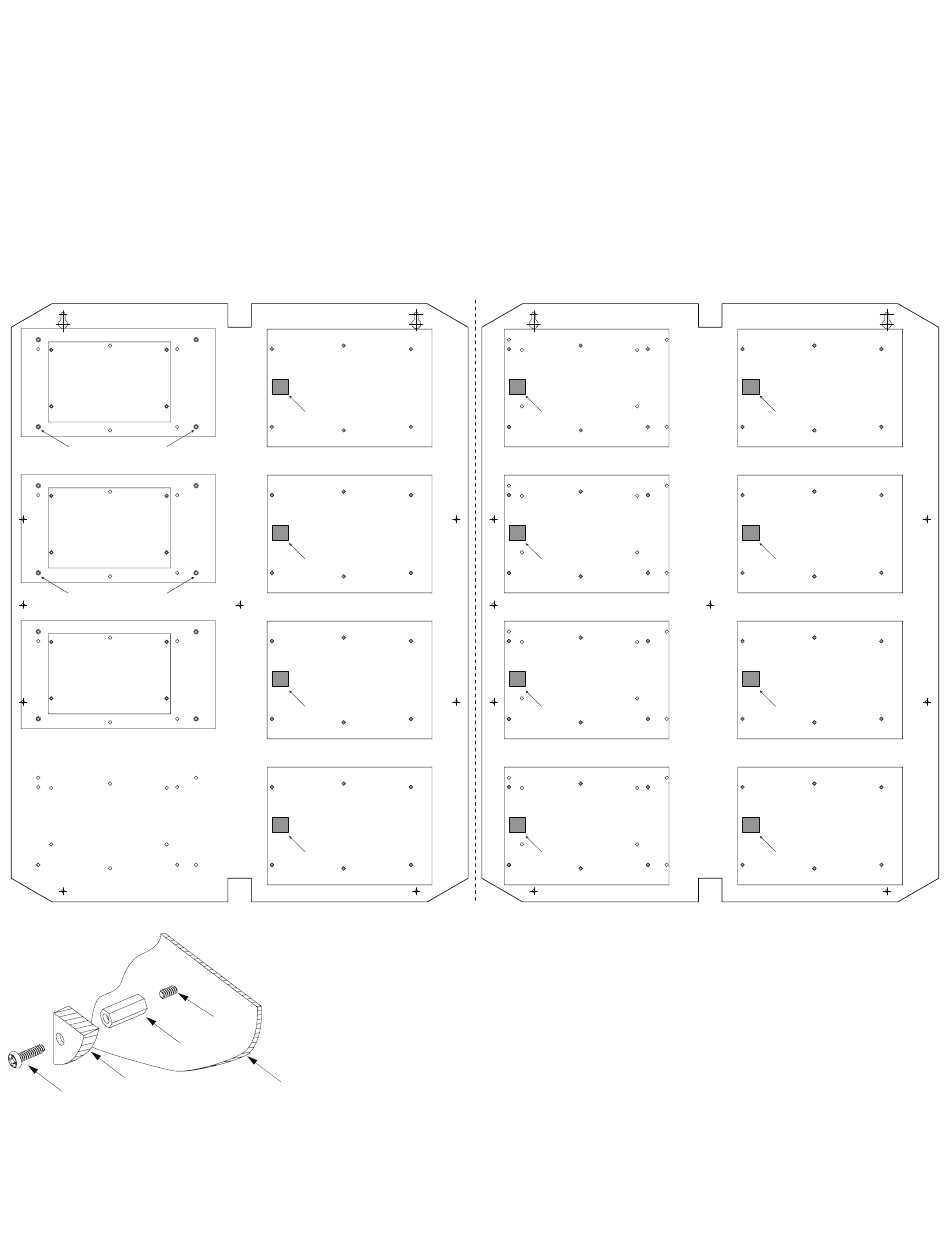

Fig. 2 - Trove2SL2/TSL2 Configurations
Altronix
Power Supply
or
Sub-Assembly
Metal Standoff Placement
Altronix
Power Supply
or
Sub-Assembly
Metal Standoff Placement
Altronix
Sub-Assembly
Fig. 2a
Standoff
Power Supply or
Sub-Assembly
Pan Head
Screw
- 2 -
TSL2: Configuration of Altronix Power Supply
Sielox
AC-1700
RJ45 Jack
Sielox
AC-1700
RJ45 Jack
Sielox
AC-1700
RJ45 Jack
Sielox
AC-1700
RJ45 Jack
Pem
Backplane
Sielox
AC-1700
RJ45 Jack
Sielox
AC-1700
RJ45 Jack
Sielox
AC-1700
RJ45 Jack
Sielox
AC-1700
RJ45 Jack
Sielox
AC-1700
RJ45 Jack
Sielox
AC-1700
RJ45 Jack
Sielox
AC-1700
RJ45 Jack
Sielox
AC-1700
RJ45 Jack
Trove2SL2
