Access & Power Integration

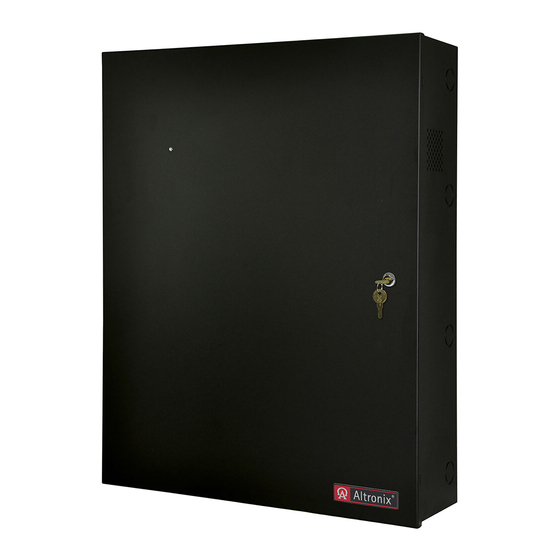

Altronix Trove2/Mercury Kits with PTC Outputs
T2MK34D
Fully assembled 4 door kit includes:
- Trove2 enclosure with
TM2 Altronix/Mercury backplane
- (1) AL600ULXB - Power Supply/Charger
- (1) ACM4CB - PTC Access Power Controller
- (1) VR6 - Voltage Regulator
- (1) PDS8CB - Dual Input PTC Power Distribution Module
T2MK38D
Fully assembled 8 door kit includes:
- Trove2 enclosure with
TM2 Altronix/Mercury backplane
- (1) AL600ULXB - Power Supply/Charger
- (1) ACM8CB - PTC Access Power Controller
- (1) VR6 - Voltage Regulator
- (1) PDS8CB - Dual Input PTC Power Distribution Module
T2MK78D
Fully assembled 8 door kit includes:
- Trove2 enclosure with
TM2 Altronix/Mercury backplane
- (1) AL1024ULXB2 - Power Supply/Charger
- (1) ACM8CB- PTC Access Power Controller
- (1) VR6 - Voltage Regulator
- (1) PDS8CB - Dual Input PTC Power Distribution Module
All components of these Trove kits are UL Listed sub-assemblies.
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.
Installation Guide
All registered trademarks are property of their respective owners.
Rev. TMKDL111121
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
T2MK7516D
Fully assembled 16 door kit includes:
- Trove2 enclosure with TM2 Altronix/Mercury
backplane and TMV2 door backplane
- (1) AL1024ULXB2 - Power Supply/Charger
- (1) AL1012ULXB - Power Supply/Charger
- (2) ACM8CB - PTC Access Power Controllers
- (1) PD16WCB - PTC Power Distribution Module
T2MK7716D
Fully assembled 16 door kit includes:
- Trove2 enclosure with TM2 Altronix/Mercury
backplane and TMV2 door backplane
- (2) AL1024ULXB2 - Power Supply/Chargers
- (2) ACM8CB - PTC Access Power Controllers
- (1) VR6 - Voltage Regulator
- (1) PDS8CB - Dual Input PTC Power Distribution Module
More than just power.™
Advertisement
Related Manuals for Altronix TROVE T2MK34D
Summary of Contents for Altronix TROVE T2MK34D
- Page 1 Access & Power Integration Altronix Trove2/Mercury Kits with PTC Outputs T2MK34D T2MK7516D Fully assembled 4 door kit includes: Fully assembled 16 door kit includes: - Trove2 enclosure with - Trove2 enclosure with TM2 Altronix/Mercury TM2 Altronix/Mercury backplane backplane and TMV2 door backplane...
-
Page 2: Configuration Chart
Overview: Altronix Trove Mercury kits are pre-assembled and consist of Trove2M2 enclosure with factory installed Altronix power supply/charger(s) and sub-assemblies. These kits also accommodate various combinations of Mercury boards for up to sixteen (16) doors in a single enclosure. Configuration Chart:... - Page 3 NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8 Altronix ACM8CB (T2MK38D) Altronix - PDS8CB Altronix VR6 is mounted under PDS8CB Trove2/Mercury PTC ULXB Kits Installation Guide - 3 -...
- Page 4 NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8 Altronix PDS8CB Altronix VR6 is mounted under PDS8CB - 4 - Trove2/Mercury PTC ULXB Kits Installation Guide...
- Page 5 Spacer Altronix- AL1012ULXB Backplane BAT FAIL NC C NO NC C NO AC FAIL Mercury Board XFMR INPUT Altronix - AL1024ULXB2 AC DELAY FACP TRIGGER INPUT IN GND IN GND IN GND IN GND IN GND IN GND IN GND IN GND...
- Page 6 OUT5 OUT6 OUT7 OUT8 Common (--- ) Common (--- ) DM2 + DM2 + Common Power Outputs (NEG) Altronix VR6 is mounted under PDS8CB Backplane AC DELAY Mercury Board Altronix - AL1024ULXB2 AC DELAY FACP TRIGGER INPUT IN GND IN GND IN GND IN GND...
- Page 7 Altronix Sub-Assemblies and/or Adapters: 1. Fasten spacers to pems which match the hole pattern (C) for Altronix Sub-Assemblies (Fig. 6, 6a, pg. 7). 2. Mount boards to spacers utilizing pan head screws provided with the product (Fig. 6, pg. 7).
- Page 8 5.25” (133.4mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty IITrove2/Mercury ULXB PTC Kits K11U MEMBER...
