Access & Power Integration
Altronix/SALTO Kits
Models Include:
T1SAK34
4 Door Kit with Fused Outputs

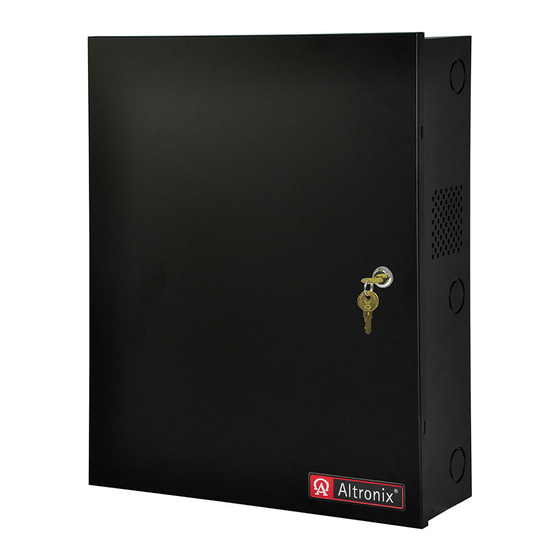

Fully assembled kit includes:
- Trove1 enclosure with TSA1 Altronix/SALTO backplane
- (1) AL600ULXB - Power Supply/Charger
- (1) ACM4 - Fused Access Power Controller
- (1) VR6 - Voltage Regulator
- (1) PDS8 - Dual Input Power Distribution Module
T2SAK78
8 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove2 enclosure with TSA2 Altronix/SALTO backplane
- (1) AL1024ULXB2 - Power Supply/Charger
- (1) ACM8 - Fused Access Power Controller
- (1) VR6 - Voltage Regulator
- (1) PDS8 - Dual Input Power Distribution Module
All components of these Trove kits are UL Listed sub-assemblies.
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.
Installation Guide
All registered trademarks are property of their respective owners.
Rev. TSAKL122121
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
T2SAK7512
12 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove2 enclosure with TSA2 Altronix/SALTO backplane
- (1) AL1024ULXB2 - Power Supply/Charger
- (1) AL1012ULXB - Power Supply/Charger
- (1) ACM8 - Fused Access Power Controller
- (1) ACM4 - Fused Access Power Controller
- (1) PDS8 - Dual Input Power Distribution Module
More than just power.™
Advertisement
Related Manuals for Altronix Trove T1SAK34
Summary of Contents for Altronix Trove T1SAK34
- Page 1 12 Door Kit with Fused Outputs Fully assembled kit includes: Fully assembled kit includes: - Trove1 enclosure with TSA1 Altronix/SALTO backplane - Trove2 enclosure with TSA2 Altronix/SALTO backplane - (1) AL600ULXB - Power Supply/Charger - (1) AL1024ULXB2 - Power Supply/Charger...
-
Page 2: Configuration Chart
Install the three lower screws and make sure to tighten all screws. 3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) in desired location, opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure approximately 2” from the right side Fig. - Page 3 OUT7 OUT8 COM (-) HS4 Module Altronix COM (-) PWR2+ PWR2+ AL600ULXB Pan Head Screw Common Power Outputs (NEG) Altronix VR6 is mounted under PDS8 TRIGGER INPUT IN GND IN GND IN GND IN GND LED1 LED2 LED3 LED4 Altronix - ACM4...
- Page 4 Fuse1 Fuse2 Fuse3 Fuse4 Fuse5 Fuse6 Fuse7 Fuse8 OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8 COM (-) COM(-) PWR2+ PWR2+ Common Power Outputs (NEG) Altronix VR6 is mounted under PDS8 - 4 - Trove SALTO ULXB Kits Installation Guide...
- Page 5 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8 Altronix ACM4 IN2 Fuse POWER CONTROL +INP- +RET- INTERFACE FACP + INP1 - + INP2 - Altronix - PDS8 Trove SALTO ULXB Kits Installation Guide - 5 -...
- Page 6 Notes: - 6 - Trove SALTO ULXB Kits Installation Guide...
- Page 7 T1SAK34 Enclosure Dimensions (H x W x D): 18” x 14.5” x 4.625” (457mm x 368mm x 118mm) 14.5” (321.3mm) 7.25” (184.2mm) 1.45” (36.8mm) 1.95” (49.5mm) 4.5” (114.3mm) 13.0” (330.2mm) 1.25” (31.8mm) 1.25” (31.8mm) 1.5” (38.1mm) 1.5” (38.1mm) 0.6” (15.2mm) 0.57”...
- Page 8 5.25” (133.4mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty MEMBER IITrove SALTO ULXB Kits L21U...
