Access & Power Integration
T1DMK3F4
4 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove1 enclosure with TDM1 Altronix/DMP backplane
- One (1) eFlow6NB - Power Supply/Charger
- One (1) VR6 - Voltage Regulator
- One (1) PDS8 - Dual Input Fused Power Distribution Module

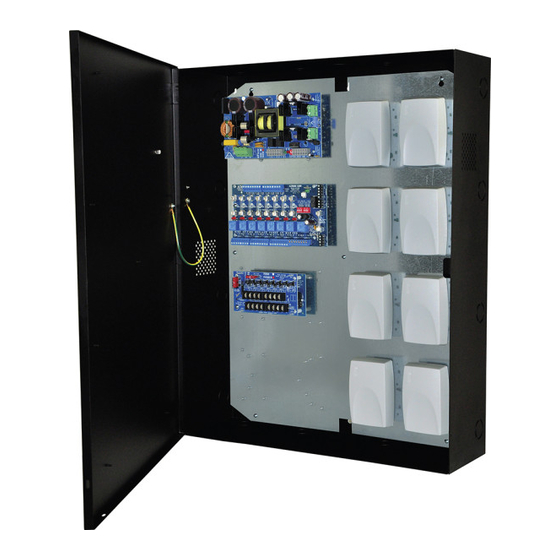

T2DMK7F8
8 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove2 enclosure with TDM2 Altronix/DMP backplane
- One (1) eFlow104NB - Power Supply/Charger
- One (1) ACM8 - Access Power Controller
- One (1) VR6 - Voltage Regulator
- One (1) PDS8 - Dual Input Fused Power Distribution Module
All components of these Trove kits are UL Listed sub-assemblies.
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.
Installation Guide
All registered trademarks are property of their respective owners.
Rev. TDMK_040419
Installing Company: _____________________ Service Rep. Name: __________________________________________
Address: ________________________________________________________ Phone #: _________________________
More than just power.™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix TROVE T1DMK3F4
Summary of Contents for Altronix TROVE T1DMK3F4
- Page 1 T1DMK3F4 4 Door Kit with Fused Outputs Fully assembled kit includes: - Trove1 enclosure with TDM1 Altronix/DMP backplane - One (1) eFlow6NB - Power Supply/Charger - One (1) VR6 - Voltage Regulator - One (1) PDS8 - Dual Input Fused Power Distribution Module...
- Page 2 Overview: Altronix T1DMK3F4 and T2DMK7F8 Trove DMP kits are pre-assembled and consist of Trove enclosures/backplanes with factory installed Altronix power supply/chargers and sub-assemblies. T1DMK3F4 accommodates up to four (4) DMP 734/734N Wiegand modules for up to four (4) doors in a single enclosure.
- Page 3 Out2 <1 off 2> DMP 734 or 734N Out1 Wiegand <1 off 2> IN2 Fuse + INP1 -- + INP2 -- Altronix VR6 mounted under PDS8 Backplane Fig. 2a Fig. 2b Mounting Standoff Placement Standoff DMP 734 plastic housing Pan Head...
- Page 4 OUT4 OUT5 OUT6 OUT7 OUT8 Common (--- ) Common (--- ) DM2 + DM2 + Common Power Outputs (NEG) Altronix VR6 mounted under PDS8 Backplane Fig. 3a Fig. 3b Mounting Standoff Placement Standoff DMP 734 plastic housing Pan Head Screw...
- Page 5 Notes: Trove DMP Kits - 5 -...
- Page 6 - UL Listed in the U.S. and Canada. - Local or remote control of up to (2) two Altronix eFlow power output(s) via LAN and/or WAN. - Monitor real time diagnostics: DC output voltage, output current, AC & battery status/service, input trigger state change, output state change and unit temperature.
- Page 7 T1DMK3F4 Enclosure Dimensions (H x W x D approximate): 18” x 14.5” x 4.625” (457mm x 368mm x 118mm) 14.5” (368mm) 7.25” (184.15mm) 1.45” 1.948” (36.83mm) (49.483mm) 4.5” (114.3mm) 13.0” 1.25” 1.25” (330.2mm) (31.75mm) (31.75mm) 1.5” 1.5” 0.5897” (38.09mm) (38.09mm) (14.98mm) 0.569”...
- Page 8 (50.8mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IITrove DMP Kits...
