Hardware layout and configuration
4.18 microSD™ connector CN9
Pin
number
1
2
3
4
5
24/30

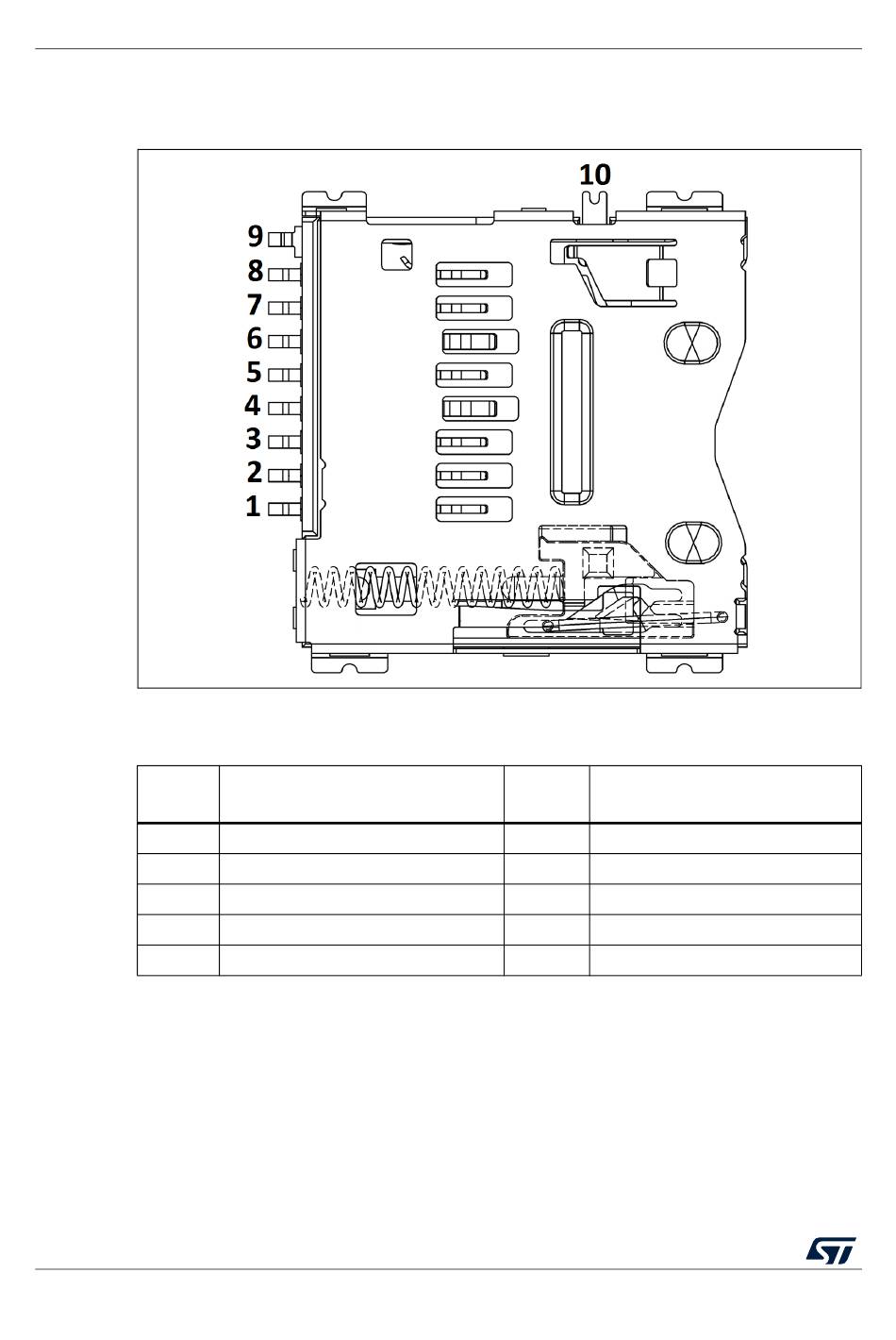

Figure 10. microSD™ connector CN9 (front view)
Table 11. microSD™ connector CN9
Description
SDIO_D2 (PC10)
SDIO_D3 (PC11)
SDIO_CMD (PD2)
+3.3V
SDIO_CLK (PC12)
UM1932 Rev 3
Pin
Description
number
6
7 SDIO_D0 (PC8)
8 SDIO_D1 (PC9)
9
10 MicroSDcard_detect (PG2)
UM1932
GND
GND
