CONTROLLER OVERVIEW

Home Screen

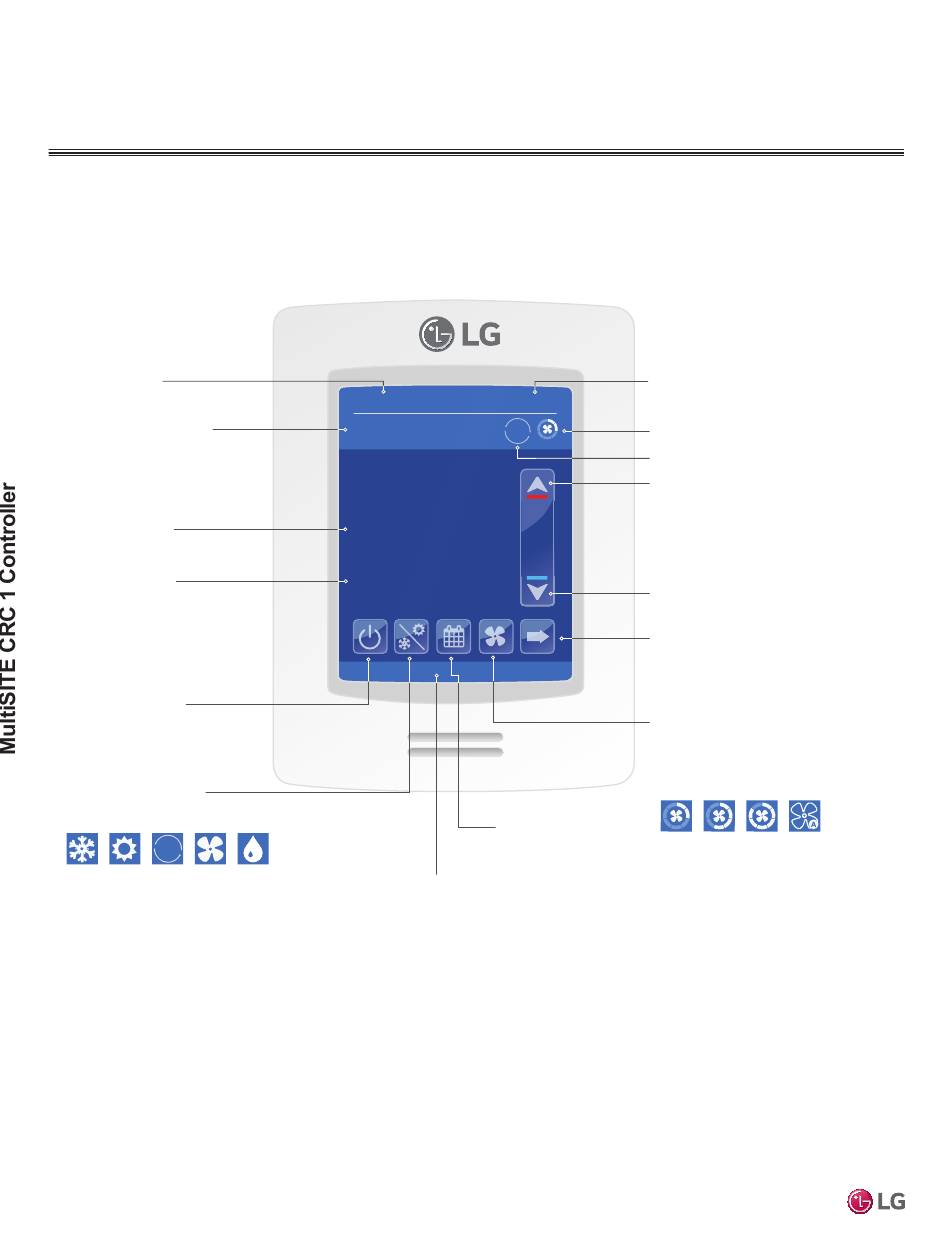

The controller home screen is shown and described below.
Current Date
Occupancy Status
Occupied (Occ) or
Unoccupied (Unocc)
Room Indoor
Temperature
Room Indoor
Humidity
On/Off
Turn the display
on or off
Operation Mode
Set Cool, Heat, Auto
Cool, Auto Heat,
Fan, Dry modes
Auto
Note: Pressing and holding the
Operation Mode icon takes the user
to the Operation Mode page.
Note:
Available functions/features may differ based on the connected system.
When any change is made to a parameter, the value is automatically saved in memory when the next
parameter is selected or another page is opened.
Arrows auto-increment/decrement at higher speed when holding button for more than 2.5 seconds.
8
09-26-2017
Occ Auto Heat
Indoor °F
74°
Humidity
66 %
Locked by central controller
Short Network Message
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. "LG" is a registered trademark of LG Corp.
Current Time
2:43 PM
Current Fan Speed Setting
Auto
Operation Mode Status
Up Arrow
Raise Temperature Setpoint
78
68
Down Arrow
Lower Temperature Setpoint
More
Provides end user with
access to less often used
functions.
Fan Speed
Set fan to Slow, Low, Low-Med,
Medium, Med-High, High, Power,
Auto. (Available options depend
on IDU model.)
Schedule
Set weekly
schedule
Note: Long-press of the Fan
Speed button when in cooling
mode triggers Power Cooling
mode. If in Power Cooling mode,
last airflow segment on top is lit
in purple and the text changes
from "Fan" to "Power Cool". This
mode lasts for 30 minutes and
then reverts back to the previous
fan speed.
