Replacing Fuses
If the instrument does not seem to get power after you press the Power button, confirm
that the power cord is securely connected to a functioning power outlet and to the power
port on the rear of the instrument.
If the power failed while the instrument was running, verify that the power cord is not loose
or disconnected and that power to the power outlet is functioning properly.
If these checks fail to remedy the loss of power, replace the fuses. See
Specifications on page 59
CAUTION! Do not touch or loosen screws or parts other than those specifically
designated in the instructions. Doing so could cause misalignment and possibly void
the warranty.

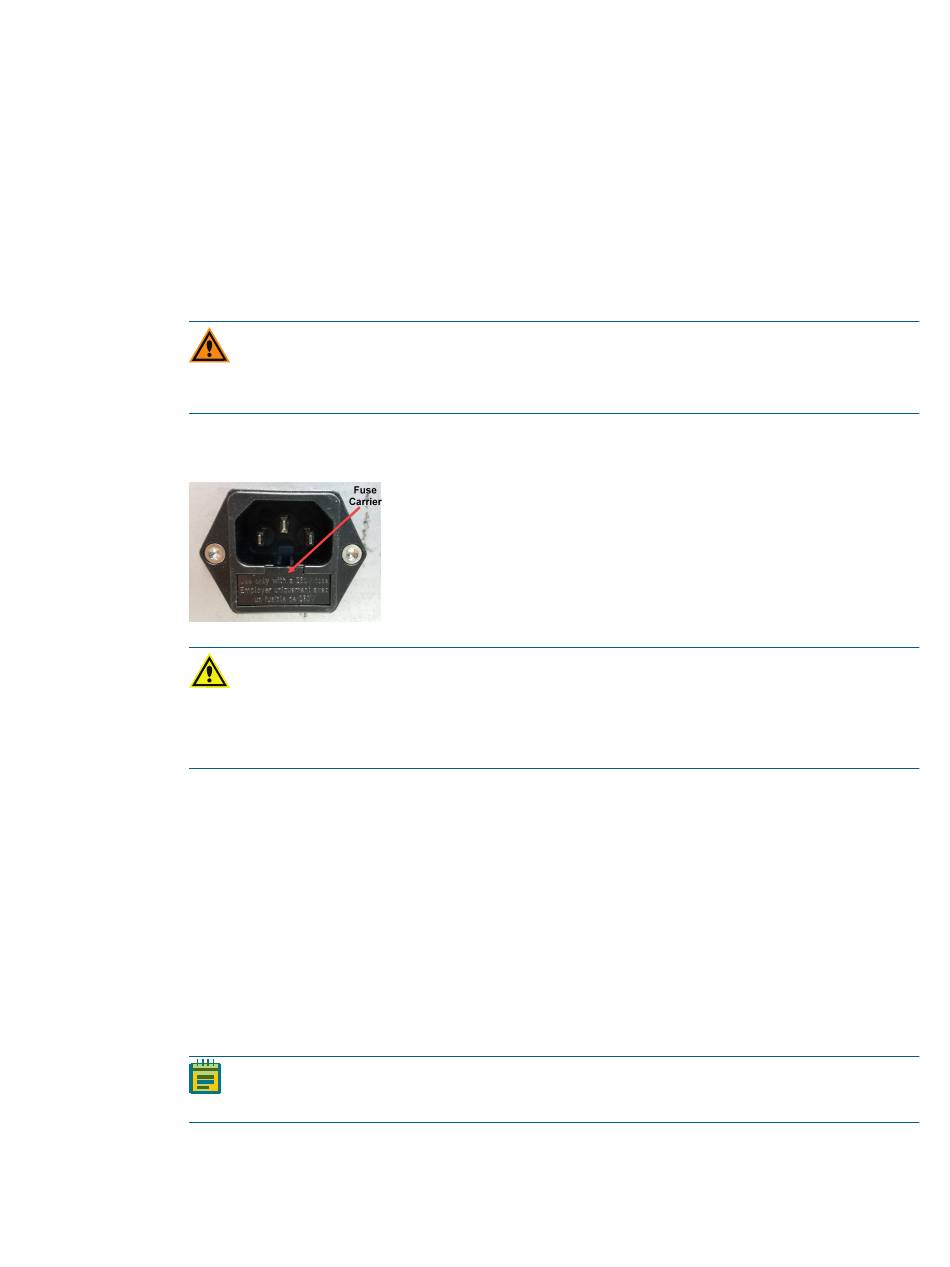

The fuses are located in the fuse carrier, which is below the power port at the rear of the
instrument.
WARNING!
power cord from the main power source before you perform a maintenance
procedure that requires removal of a panel or cover or disassembly of an interior
instrument component.
To replace fuses:
1. Press and hold the Power button to power off the instrument.
2. Disconnect the power cord from the power port.
3. Gently press on the carrier-release tab (below the power port) with a small flat-head
screwdriver, and pull the fuse carrier to remove it from the instrument.
4. Gently pull the old fuses from the carrier by hand.
5. Gently place the new fuses into the carrier.
6. Press the fuse carrier into the instrument until the carrier snaps into place.
7. Connect the power cord into the power port.
8. Press the Power button to power on the instrument.
Note: If the instrument still does not power on after you change the fuses, contact
Molecular Devices Technical Support. See
5063666 F
for fuse details.
