Universal Low-Dropout (LDO) Linear Voltage Regulator
This user's guide describes the operational use of the MultiPkgLDOEVM-823 evaluation module (EVM) as
a reference design for engineering demonstration and evaluation of Texas Instruments low-dropout (LDO)
linear regulators, in DRB, DRV, DQN, and DBV packages. Included in this user's guide are setup and
operating instructions, layout guidelines, a printed circuit board (PCB) layout, a schematic diagram, and a
bill of materials (BOM).
Throughout this document, the terms demonstration kit, evaluation board, and evaluation module are
synonymous with the MultiPkgLDOEVM-823.
...................................................................................................................
1
1.1
2
3
3.1
3.2
3.3
3.4
3.5
4
4.1
4.2
4.3
4.4
4.5
5
5.1
5.2
5.3
SBVU035 - October 2017
Submit Documentation Feedback
MultiPkgLDOEVM-823 Evaluation Module
...................................................................................................
...........................................................................................................
................................................................................................................
...........................................................................................
...........................................................................................................
............................................................................................................
............................................................................................................
................................................................................................................
...........................................................................................
...........................................................................................................
............................................................................................................
............................................................................................................
..............................................................................................................
.........................................................................................
.........................................................................................................
Universal Low-Dropout (LDO) Linear Voltage Regulator MultiPkgLDOEVM-
Copyright © 2017, Texas Instruments Incorporated
Contents
............................................................
............................................................
...........................................................
User's Guide
SBVU035 - October 2017
3
3
3
4
4
4
6
6
6
7
7
7
9
9
9
10
10
10
11
1
823 Evaluation Module

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MultiPkgLDOEVM-823 and is the answer not in the manual?

Questions and answers

Related Manuals for Texas Instruments MultiPkgLDOEVM-823

Summary of Contents for Texas Instruments MultiPkgLDOEVM-823

  • Page 1: Table Of Contents

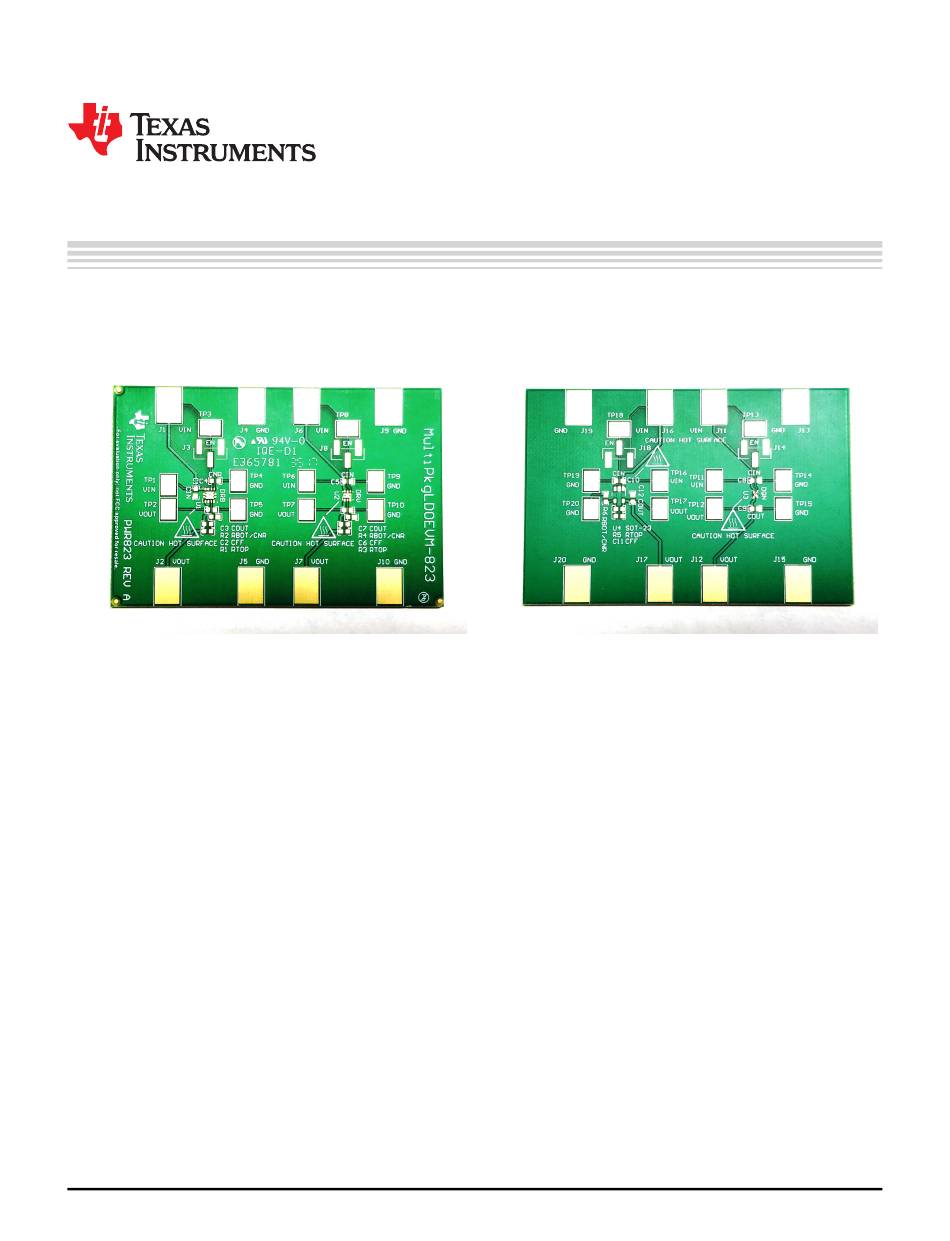

    Universal Low-Dropout (LDO) Linear Voltage Regulator MultiPkgLDOEVM-823 Evaluation Module This user’s guide describes the operational use of the MultiPkgLDOEVM-823 evaluation module (EVM) as a reference design for engineering demonstration and evaluation of Texas Instruments low-dropout (LDO) linear regulators, in DRB, DRV, DQN, and DBV packages. Included in this user’s guide are setup and operating instructions, layout guidelines, a printed circuit board (PCB) layout, a schematic diagram, and a bill of materials (BOM).
