INSTALL INSTRUCTIONS C-TMW-CV-01
1995-2011 FORD CROWN VICTORIA TUNNEL MOUNT KIT
TOOLS REQUIRED:
Ratcheting Wrench
Metric Socket Set
HARDWARE:
QTY DESCRIPTION
20
¼" x ¾" Hex head bolt
8
¼" Serrated nut
12
¼" Flat washer
12
¼" Split lock washer
4
¼" nut
Note: Additional 1/4" hardware is provided for mounting C-HDM-200 series poles to the Trak.

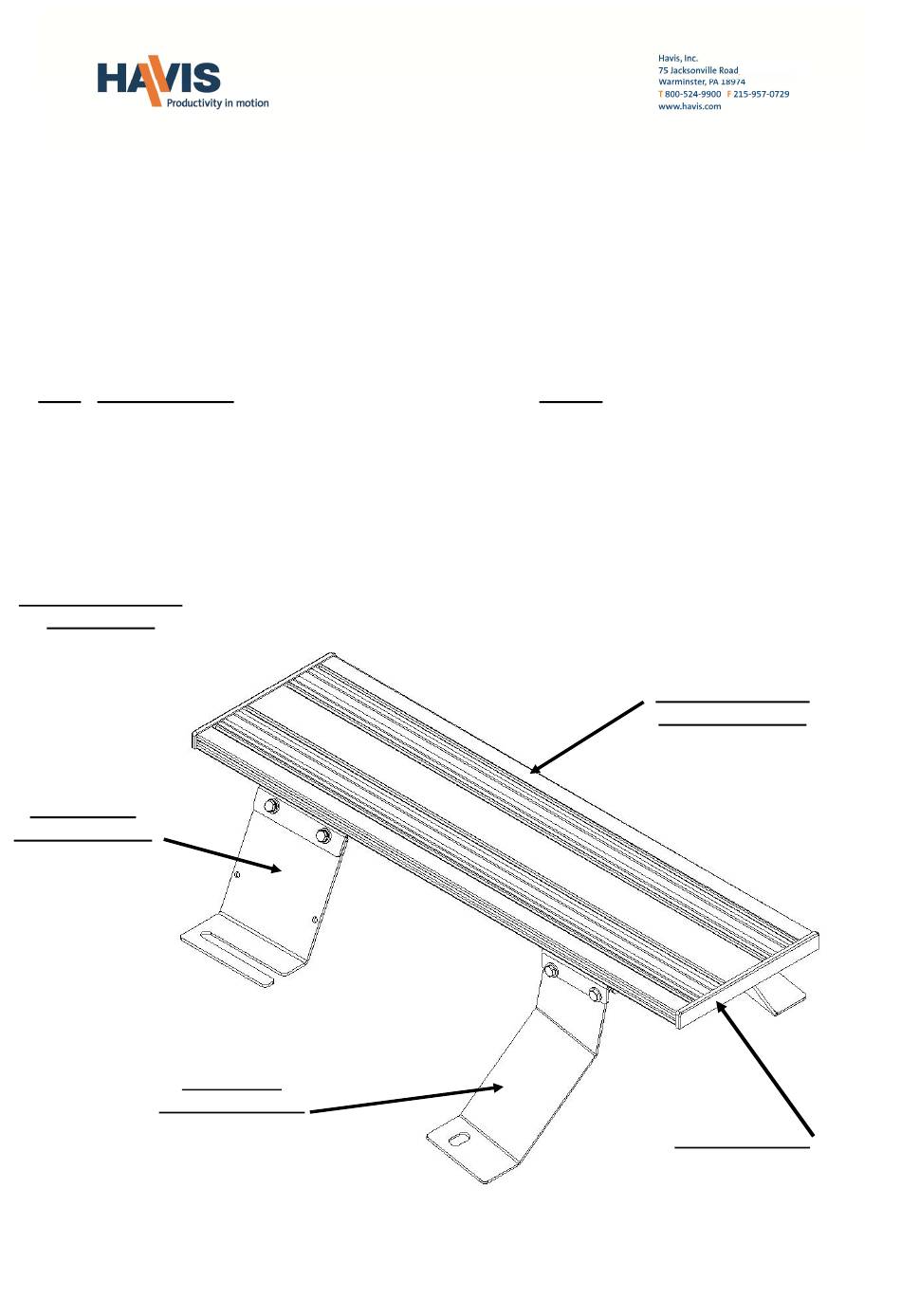

TUNNEL-MOUNT
ASSEMBLY
Front Hump
Bracket (C-B33)
Brackets (C-B53)
Rear Hump
Standard Socket Set
Tape Measure
Pencil
PART#
GSM33001
GSM30023
GSM31005
GSM31026
GSM30005
28" long x 8" wide
Tunnel Extrusion
Plastic End Cap
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Havis C-TMW-CV-01
Summary of Contents for Havis C-TMW-CV-01
- Page 1 INSTALL INSTRUCTIONS C-TMW-CV-01 1995-2011 FORD CROWN VICTORIA TUNNEL MOUNT KIT TOOLS REQUIRED: Ratcheting Wrench Standard Socket Set Metric Socket Set Tape Measure Pencil HARDWARE: QTY DESCRIPTION PART# ¼” x ¾” Hex head bolt GSM33001 ¼” Serrated nut GSM30023 ¼” Flat washer GSM31005 ¼”...
- Page 2 • Mount equipment console and other accessories on extrusion with ¼ hardware. • When all items are mounted, attach plastic caps on the ends of the extrusion with self adhesive tape. (already on end caps) C-TMW-CV-01 Final assembly shown C-TMW-CV-01_INST_4-15...
