INSTALL INSTRUCTIONS C-TMW-F250-02
TOOLS REQUIRED:
Ratcheting wrench
Standard socket set
PARTS and MOUNTING HARDWARE:
QTY DESCRIPTION
1
Front transmission hump bracket set
1
Rear transmission hump bracket set
28" x 8" Tunnel Plate
1
2
Extrusion plastic end caps
¼" x ¾" hex head bolt
20
¼" Flat Washers
12
¼" Lock Washers
12
¼" Serrated nut
8
C-TMW-F250-02

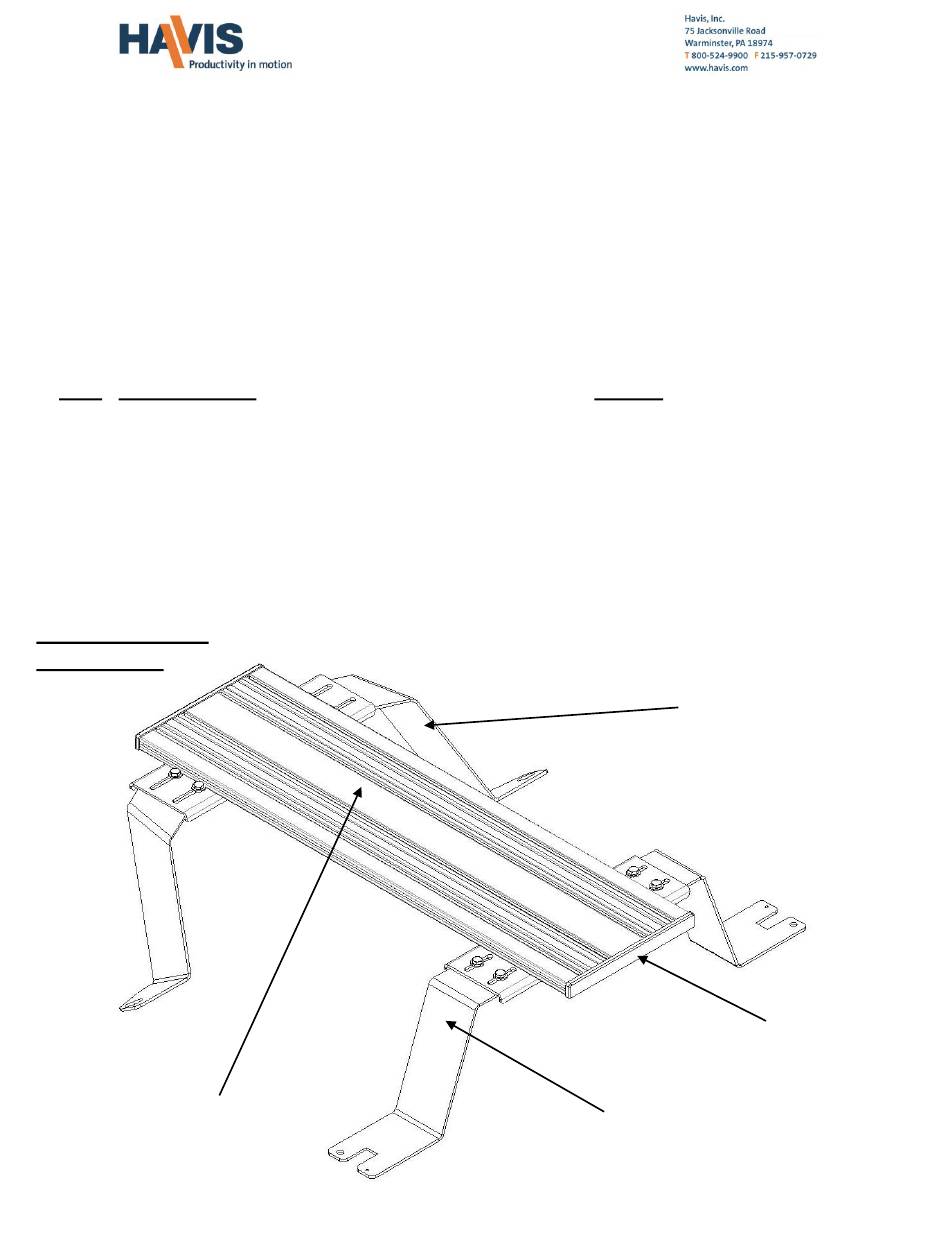

ASSEMBLY
C-TMW-28E
28" Tunnel Plate

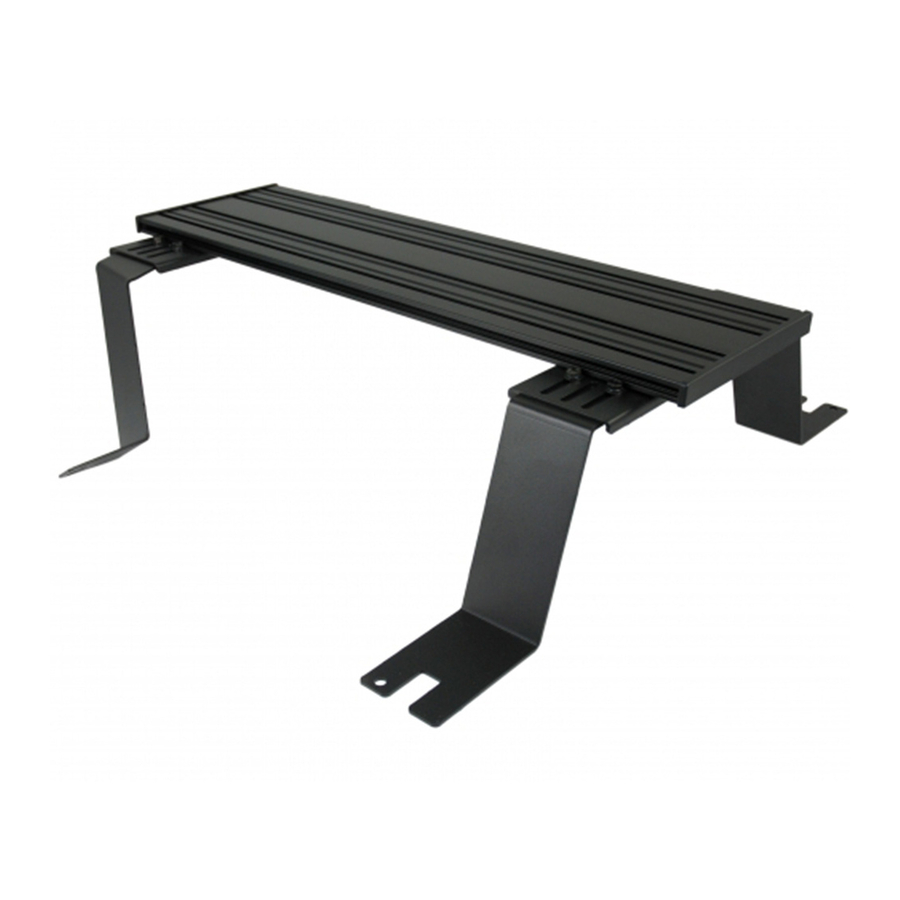

HEAVY DUTY TUNNEL PLATE
2011-2016 F-250, 350, 450, & 550
Metric socket set
T-55 Torx Bit
7/16" wrench
Pencil
PART #
C-B59
C-B51
C-TMW-28E
CM002527A
GSM33001
GSM31005
GSM31026
GSM30023
3-Piece transmission hump bracket
(2 – Legs and 1 – Crossover Bracket)
C-B51
3-Piece transmission hump bracket
(2 – Legs and 1 – Crossover Bracket
C-B59
CM002527A
Extrusion plastic end cap
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Havis C-TMW-F250-02
Summary of Contents for Havis C-TMW-F250-02
- Page 1 INSTALL INSTRUCTIONS C-TMW-F250-02 HEAVY DUTY TUNNEL PLATE 2011-2016 F-250, 350, 450, & 550 TOOLS REQUIRED: 7/16” wrench Ratcheting wrench Metric socket set Standard socket set T-55 Torx Bit Pencil PARTS and MOUNTING HARDWARE: QTY DESCRIPTION PART # Front transmission hump bracket set...
- Page 2 Always Read all instructions before installing any Havis, Inc. products. Use hardware provided with install kit For product support, email technicalsupport@havis.com or call 1-800-524-9900. INSTALLATION: NOTES: A. If you removed the OEM center seat, there will be studs in the floor for the center seat belt.
