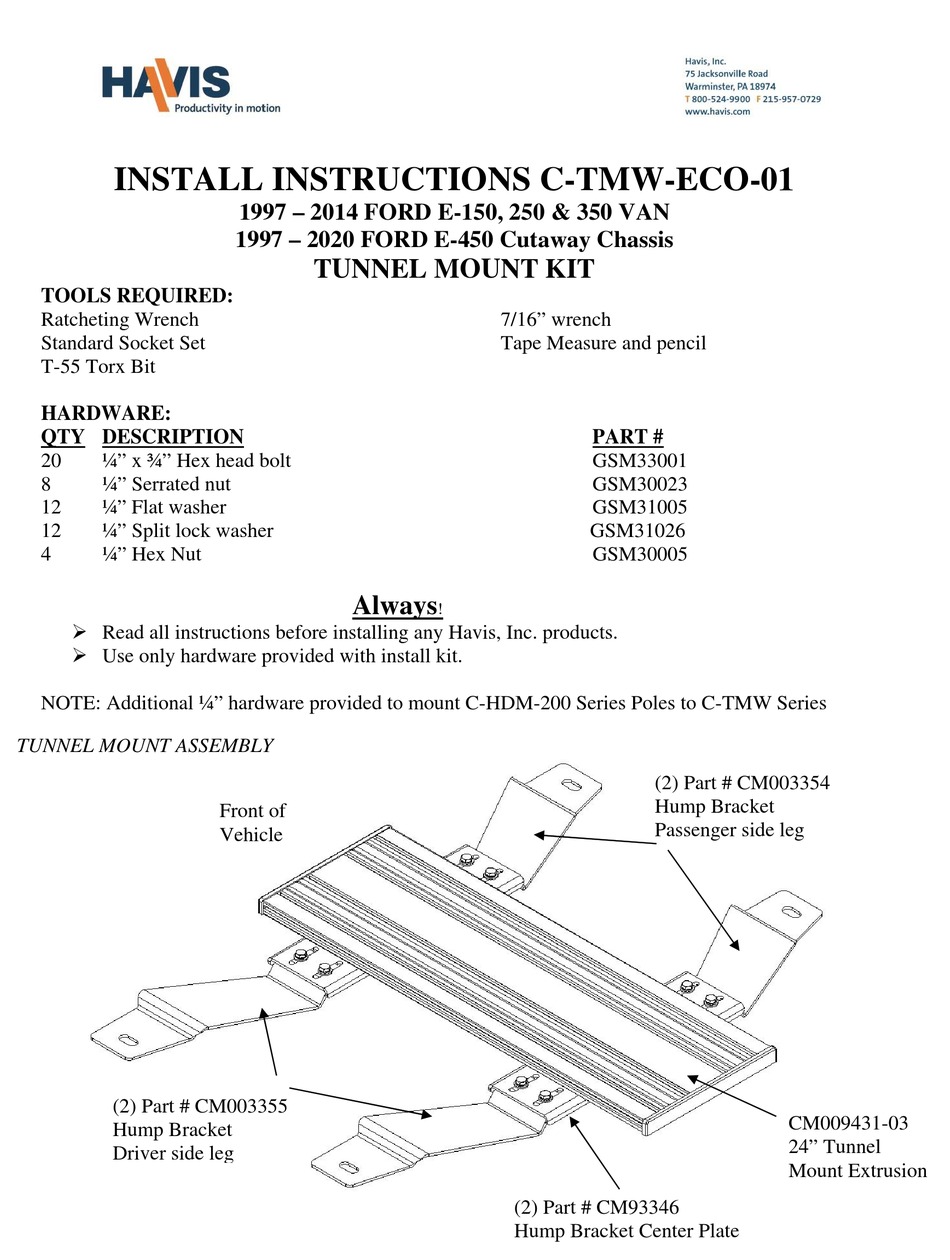

INSTALL INSTRUCTIONS C-TMW-ECO-01
TOOLS REQUIRED:
Ratcheting Wrench
Standard Socket Set
T-55 Torx Bit
HARDWARE:
QTY DESCRIPTION
20
¼" x ¾" Hex head bolt
8
¼" Serrated nut
12
¼" Flat washer
12
¼" Split lock washer
4
¼" Hex Nut
Read all instructions before installing any Havis, Inc. products.
Use only hardware provided with install kit.
NOTE: Additional ¼" hardware provided to mount C-HDM-200 Series Poles to C-TMW Series

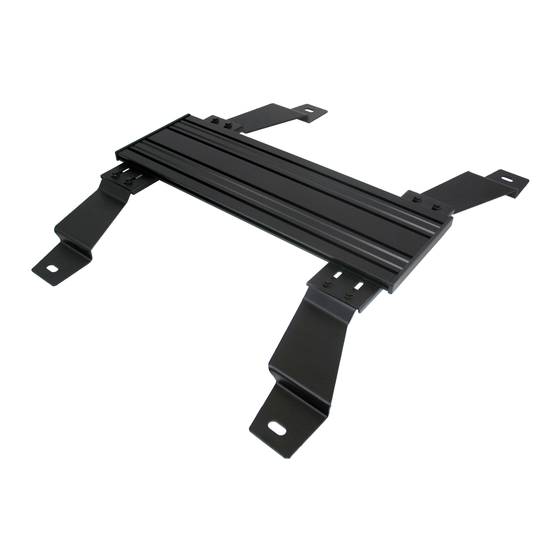

TUNNEL MOUNT ASSEMBLY
(2) Part # CM003355
Hump Bracket
Driver side leg
1997 – 2014 FORD E-150, 250 & 350 VAN
1997 – 2020 FORD E-450 Cutaway Chassis
TUNNEL MOUNT KIT
Always
Front of
Vehicle
7/16" wrench
Tape Measure and pencil
PART #
GSM33001
GSM30023
GSM31005
GSM31026
GSM30005
!
(2) Part # CM93346
Hump Bracket Center Plate
(2) Part # CM003354
Hump Bracket
Passenger side leg
CM009431-03
24" Tunnel
Mount Extrusion
Advertisement
Related Manuals for Havis C-TMW-ECO-01
Summary of Contents for Havis C-TMW-ECO-01
- Page 1 GSM31026 ¼” Hex Nut GSM30005 Always Read all instructions before installing any Havis, Inc. products. Use only hardware provided with install kit. NOTE: Additional ¼” hardware provided to mount C-HDM-200 Series Poles to C-TMW Series TUNNEL MOUNT ASSEMBLY...
- Page 2 Attach Tunnel Extrusion to center plates with Position extrusion as desired and tighten all hardware. ¼” x ¾” hex head bolts and serrated nuts. The C-TMW-ECO-01 is now ready to mount a console Note: The head of the bolt slides into the or other accessories.
