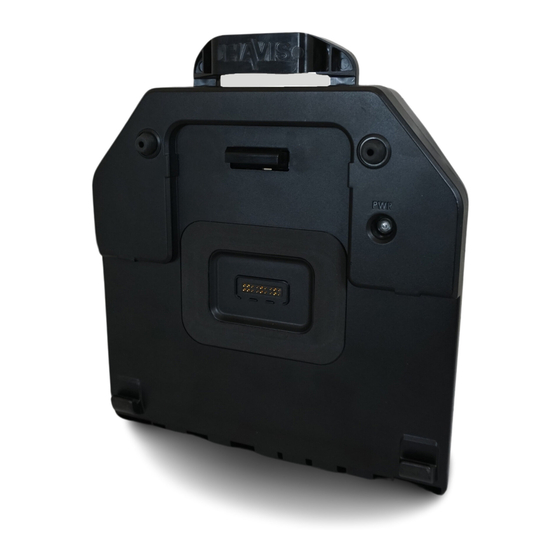

Havis DS-TAB-300 Series Owner's Manual

Ip rated docking station & tablet cases for dell latitude 7030/7230 rugged extreme tablet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
Havis IP Rated Docking Station & Tablet Cases
For Dell Latitude 7030/7230 Rugged Extreme Tablet
DS-TAB-300 Series
DS-TAB-301
DS-TAB-302
TA-100 Series
TA-101
TA-102 (Not Shown)
DS-TAB-300^TA-100-SERIES_OMN_11-23
Havis, Inc.
75 Jacksonville Road
Warminster, PA 18974

Advertisement

Table of Contents
loading

Related Manuals for Havis DS-TAB-300 Series

Summary of Contents for Havis DS-TAB-300 Series

  • Page 1 Owner’s Manual Havis IP Rated Docking Station & Tablet Cases For Dell Latitude 7030/7230 Rugged Extreme Tablet DS-TAB-300 Series DS-TAB-301 DS-TAB-302 TA-100 Series TA-101 TA-102 (Not Shown) Havis, Inc. 75 Jacksonville Road Warminster, PA 18974 DS-TAB-300^TA-100-SERIES_OMN_11-23...

  • Page 2: Before Beginning

    NE PAS CONNECTER DIRECTEMENT A LA SOURCE DE TENSION DU VEHICULE : Ce produit requiert un source de courant certifié, de qualité automobile et approuvé par Dell/Havis, pour une puissance de sortie de 19.5 V, comme le LPS-185, ou une alimentation isolée appropriée comme le LPS-186 ou le LPS-187.

  • Page 3: Specifications

    Manufacturers Address: 75 Jacksonville Road, Warminster, PA 18974 USA Declares under our sole responsibility that the product: Product name: Havis Docking Station For X Tablets, where ‘X’ denotes tablets listed in product compatibility matrix. Model: DS-TAB-30X, where ‘X’ may be any alphanumeric character and which describes product options.
  • Page 4 Parts Included (DS-TAB-300 Series) Docking Station Barrel Lock & Lock Cover Release Handle Bumpers Latch Hook LED Power Indicator Docking Connector Front Hooks Mounting Holes (x4) (VESA 75mm Hole Pattern)
  • Page 5 Parts Included (DS-TAB-300 Series) (continued) Hardware Kit (30-012847) This Hardware Kit includes: 1. Zip Ties (x5) 2. Keys (x2) 3. M4 x 0.7 x 12mm Long Screws (x5) 4. Flat Washers, M4 (x5) 5. Lock Washers, M4 (x5) 6. Grease Pack (x1) 7.

  • Page 6: Cable Installation

    IP-65 Cable Installation Sealing Element Grease Pack (12 required for installation)
  • Page 7 IP-65 Cable Installation 1) Identify the number of peripherals to be connected and measure respective cable diameters. 2) Using Sealing Element sizing from Page 6, choose appropriate orientation and apply a small amount of provided Silicone Grease to the opposite side perimeter of the Sealing Element and insert into corresponding housing receptacle on the Docking Station, greased end first.
  • Page 8 IP-65 Cable Installation 1) Using the same Sealing Element orientation, insert a second Sealing Element into the I/O Cover at the same Cable Channel position. Repeat for all Cable Channels. Apply Silicone Grease all around 2) Before installing I/O Cover to Docking Station, ensure all Sealing Elements are fully seated and cables are aligned with Sealing Elements as shown.
  • Page 9 Cable Management (DS-TAB-300 Series) 1) Secure I/O Cover to Docking Station, being careful not to pinch cables. Use a T20 Torx bit (Not Included) and Thread Forming Screws. Torque to 8 – 10 in-lbs (0.9 – 1.1 Nm). Note: In order for the solution to meet its IP-65 rating, IP-65 Cable Sealing Installation (see pages 6 - 8) must be completed prior to securing the I/O Cover to the Docking Station.
  • Page 10 Power Input Configuration There are two different power supply options for the DS-TAB-300 Series Docking Station. Below are diagrams showing the power input set up for each specific configuration of the dock. External Power Supply Configurations DS-TAB-301 Power input cable...
  • Page 11 (Hardware Kit Item 4), and four (4) Lock Washers, M4 (Hardware Kit Item 5), secure the Docking Station to device. Torque screws to 15 in-lbs (1.7Nm) ± 10% A) Havis Desktop Stand installation (sold separately, Part # DS-DA-218). Washer, M4 Lock Washer, M4 M4 x 0.7 x 12mm...
  • Page 12 Parts Included (TA-100 Series) TA-101 TA-102 Hardware Kit (30-013102) Hardware Kit (30-013758) 1. M4 , 12mm Long Tamper Resistant 1. M4 , 12mm Long Tamper Resistant Machine Screw (x5) Machine Screw (x5) 2. T15 Pin-In-Torx Drive (x1) 2. T15 Pin-In-Torx Drive (x1) 3.
  • Page 13 Parts Included (TA-100 Series) Tablet Accessory (TA-101 Shown) Mounting Hole Pattern Tablet Locator Posts Tablet Docking Connector Latch Plate Floating Docking Connector DS-TAB-300 Hook Locators...
  • Page 14 Tablet Accessory Installation (TA-100 Series) 1. Hold the tablet in landscape orientation with the bottom angled towards the docking station. Lower the tablet into the docking station. ⚠ CAUTION DO NOT FORCE TABLET ONTO TABLET ACCESSORY. IF THERE IS RESISTANCE, MAKE SURE THE TABLET’S ALIGNMENT SOCKETS ALIGNS WITH THE TABLET ACCESSORY’S ALIGNMENT POSTS.
  • Page 15 Tablet Accessory Installation (TA-100 Series) 2. Pivot the top of the tablet into the docking station. 3. While lightly applying downward pressure to the tablet, attach the tablet using: • (x4) M4 x 12mm security Torx screws (Hardware Kit Item #1) •...

  • Page 16: Operation - Docking

    Alignment Sockets on the bottom piece Front Hooks on the of the TA-100 Series Tablet Accessory DS-TAB-300 Series Docking Station 1) Ensure the Docking Station is unlocked. 2) Hold Tablet Accessory with bottom angled toward Docking Station. Lower Tablet Accessory onto the Docking Station so the Alignment Pockets on the Tablet Accessory align with the Front Hooks on the Docking Station.
  • Page 17 Operation – Docking (continued) 3) Pivot Tablet Accessory into the Docking Station until the Docking Station’s Latch Hook engages with the Latch Hook Recess on the Tablet Accessory Case. A click will be heard when docked correctly. Latch Hook engages with Tablet Accessory Latch Plate 4) For theft deterrence, secure Tablet Accessory by locking Docking Station with supplied key (Hardware Kit Item 2).

  • Page 18: Operation - Undocking

    Operation - Undocking 1) If previously locked, unlock Docking Station using the supplied key. 2) While holding Tablet Accessory with one hand, Pull the Release Handle on the top of Docking Station. 3) While pulling the Release Handle grab the Tablet Accessory, rock the top forward and carefully lift out of Docking Station, top end first.

  • Page 19: Related Products

    Related Products Havis offers a wide variety of accessory products specifically for use with your Docking Station. For more information or to order, please visit www.havis.com. DS-DA-339 Power Cable Power cable for DS-TAB-302 DS-DA-218 Desktop Stand Durable stand for mounting the DS-TAB-300 Series Docking Station on the production shop floor.

This manual is also suitable for:

Ta-100 seriesDs-tab-301Ds-tab-302Ta-101Ta-102
