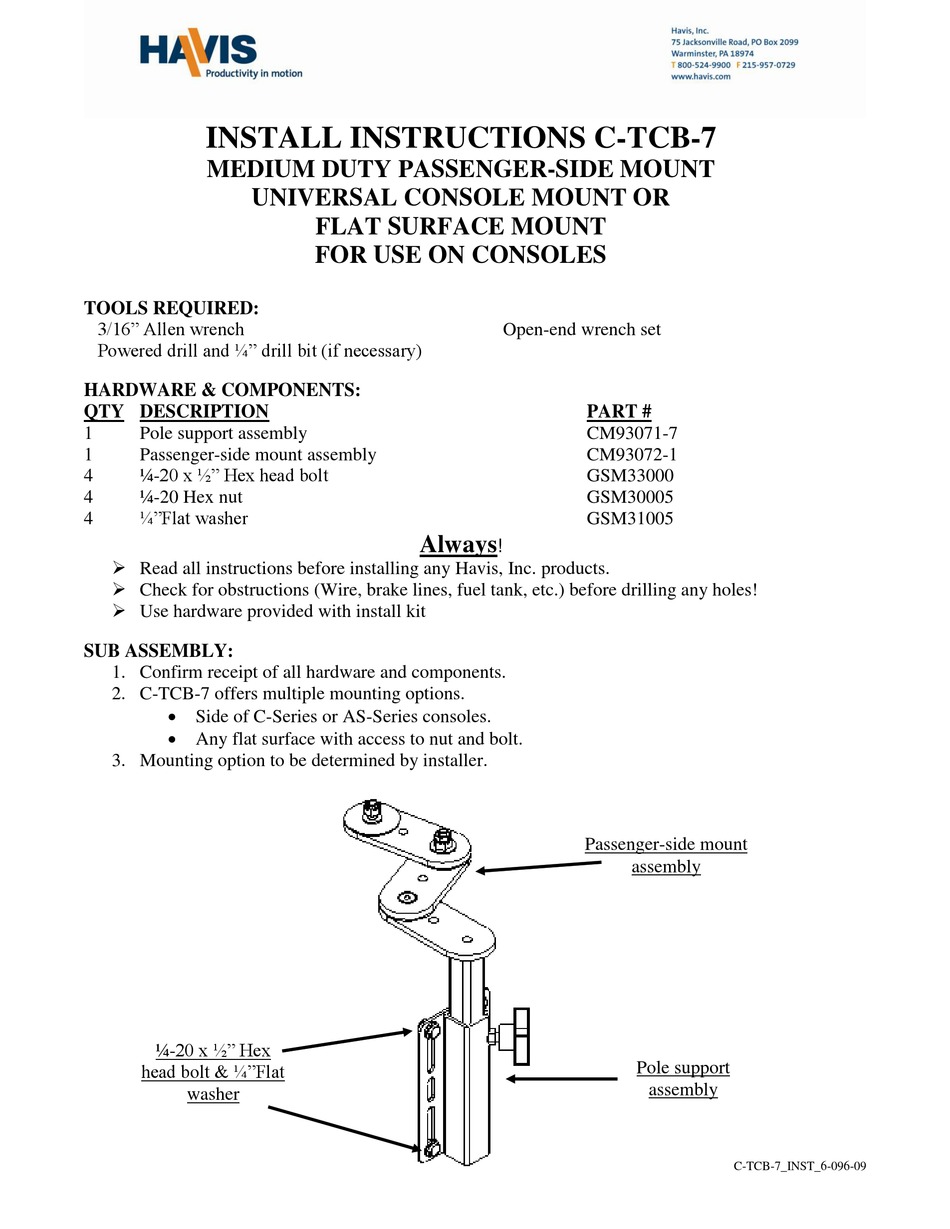

Havis C-TCB-7 Install Instructions

INSTALL INSTRUCTIONS C-TCB-7
MEDIUM DUTY PASSENGER-SIDE MOUNT
UNIVERSAL CONSOLE MOUNT OR

TOOLS REQUIRED:

3/16" Allen wrench
Powered drill and ¼" drill bit (if necessary)
HARDWARE & COMPONENTS:
QTY DESCRIPTION
1 Pole support assembly
1 Passenger-side mount assembly
¼-20 x ½" Hex head bolt
4
4 ¼-20 Hex nut
¼"Flat washer
4
 Read all instructions before installing any Havis, Inc. products.
 Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
 Use hardware provided with install kit

SUB ASSEMBLY:

1. Confirm receipt of all hardware and components.
2. C-TCB-7 offers multiple mounting options.
 Side of C-Series or AS-Series consoles.
 Any flat surface with access to nut and bolt.
3. Mounting option to be determined by installer.
¼-20 x ½" Hex
head bolt & ¼"Flat
washer
FLAT SURFACE MOUNT
FOR USE ON CONSOLES
Always
Open-end wrench set
PART #
CM93071-7
CM93072-1
GSM33000
GSM30005
GSM31005
!
Passenger-side mount
assembly
Pole support
assembly
C-TCB-7_INST_6-096-09
