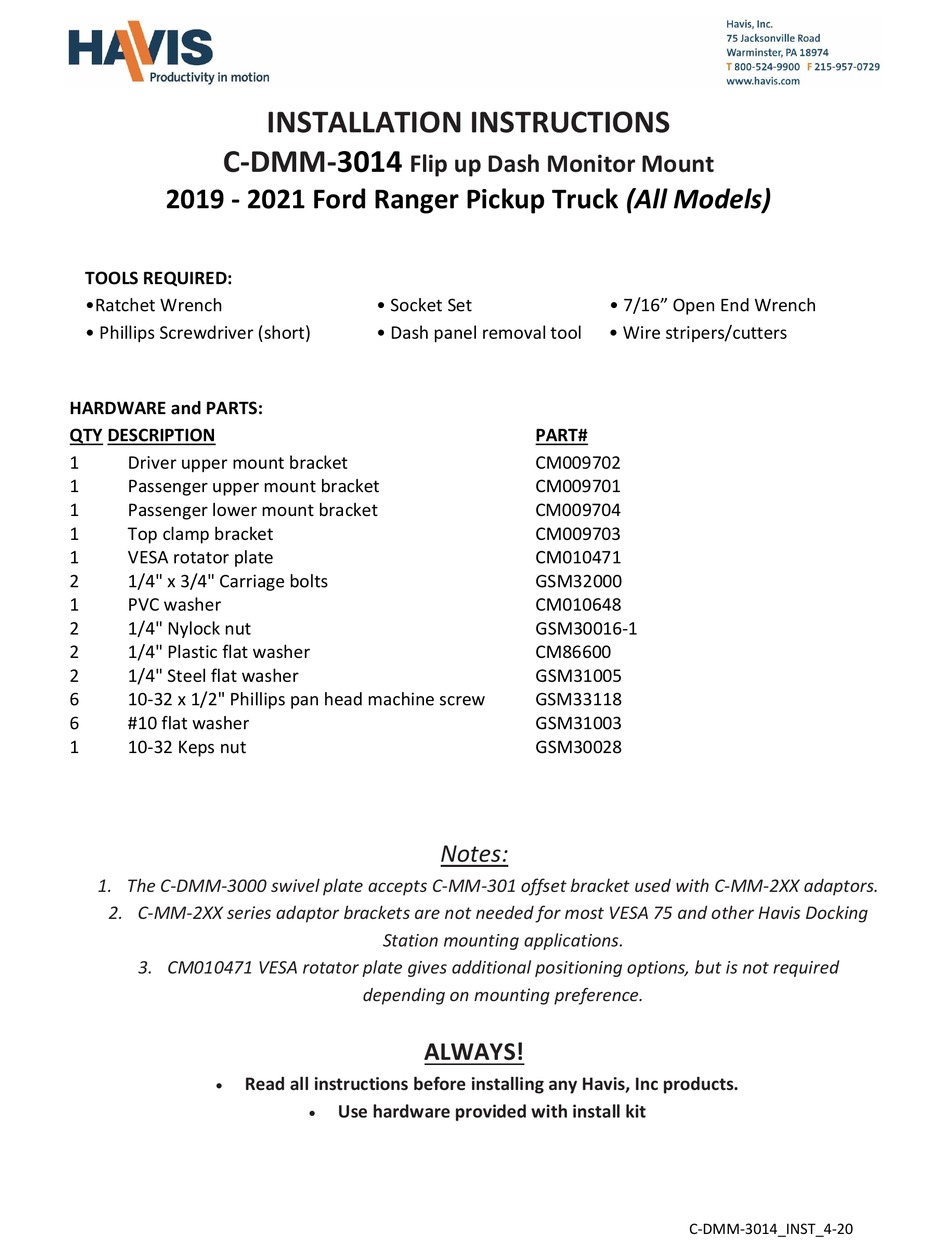

Havis C-DMM-3014 Installation Instructions Manual

Flip up dash monitor mount 2019-2021 ford ranger pickup truck (all models)

Advertisement

C-DMM-3014
2019 - 2021 Ford Ranger Pickup Truck (All Models)

TOOLS REQUIRED:

•Ratchet Wrench
• Phillips Screwdriver (short)

HARDWARE and PARTS:

QTY DESCRIPTION
1
Driver upper mount bracket
1
Passenger upper mount bracket
1
Passenger lower mount bracket
1
Top clamp bracket
1
VESA rotator plate
2
1/4" x 3/4" Carriage bolts
1
PVC washer
2
1/4" Nylock nut
2
1/4" Plastic flat washer
2
1/4" Steel flat washer
6
10-32 x 1/2" Phillips pan head machine screw
6
#10 flat washer
1
10-32 Keps nut
1. The C-DMM-3000 swivel plate accepts C-MM-301 offset bracket used with C-MM-2XX adaptors.
2. C-MM-2XX series adaptor brackets are not needed for most VESA 75 and other Havis Docking
3. CM010471 VESA rotator plate gives additional positioning options, but is not required
Read all instructions before installing any Havis, Inc products.
INSTALLATION INSTRUCTIONS
Flip up Dash Monitor Mount
• Socket Set
• Dash panel removal tool
Notes:
Station mounting applications.
depending on mounting preference.
ALWAYS!
Use hardware provided with install kit
• 7/16" Open End Wrench
• Wire stripers/cutters
PART#
CM009702
CM009701
CM009704
CM009703
CM010471
GSM32000
CM010648
GSM30016-1
CM86600
GSM31005
GSM33118
GSM31003
GSM30028
C-DMM-3014_INST_4-20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-DMM-3014 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Havis C-DMM-3014

  • Page 1 Notes: 1. The C-DMM-3000 swivel plate accepts C-MM-301 offset bracket used with C-MM-2XX adaptors. 2. C-MM-2XX series adaptor brackets are not needed for most VESA 75 and other Havis Docking Station mounting applications. 3. CM010471 VESA rotator plate gives additional positioning options, but is not required depending on mounting preference.
  • Page 2 C-DMM-3014 Frame /Tray and hinge mount Assembly GSM33118 10-32 x 1/2" screw assembly GSM31003 # 10 flat washer CM009703 CM009702 Top clamp Driver side upper bracket CM86600 mount bracket 1/4" Plastic washer GSM31005 1/4" Steel washer GSM30016-1 1/4" Nylock nut GSM32000 –...
  • Page 3 2019 Ford Ranger center instrument panel Carefully unsnap and remove the center top dash prior to installation. tray with panel removal tool. Carefully unsnap and remove passenger side Carefully unsnap and remove driver side vent and trim next to steering column. vent and trim assembly.
  • Page 4 Slide passenger side upper mount bracket (end with no threaded hole) down from tray opening and Temporarily remove upper passenger side OEM position bracket behind passenger side OEM display display mount screw (7mm socket) mount. Do the same for driver side. Slide top clamp bracket into the tray opening Reattach OEM display and upper brackets underneath the plastic cross...
  • Page 5 Remove lower passenger side OEM display mount Carefully reattach all dash trim panels. screw and attach passenger side lower mount bracket with OEM screw. (7mm socket) Place frame / tray and hinge mount assembly View of passenger side lower mount bracket coming on to dash tray opening and align mount out through small gap underneath vent trim.
  • Page 6 Position VESA plate on back of Device as desired. Attach VESA plate with carriage bolts to the back Main frame assembly is now in place. of the dock. The gray PVC washer will go Double check all hardware and make sure between this bracket and the DMM swivel plate.
