Havis offers a wide variety of accessory products specifically for use
with the DS-GTC-210 Series Docking Station. For more information or
to order, please visit www.havis.com.
DS-DA-311
USB Extension Cable
Allows for more convienent access for up to two (2) of the
available USB 2.0 ports. Can be mounted to the right, left,
or both sides on DS-GTC-200 Series Docking Stations.
LPS-116
95W Power Supply
External in-vehicle power supply and cable for Getac
F110 Rugged Tablet with cigarette lighter adaptor.
DS-DA-102
Night Eyes II
In-vehicle night time viewing from six long lasting,
soft true, red LED lights on a flexible steel gooseneck.
DS-DA-218
Desktop Stand for Tablet Docking Stations
Durable stand for mounting tablet Docking Stations
for use in the home or office.
DS-DA-501
Replacement Keys
Set of two (2) replacement keys for DS-GTC-210
Series Docking Stations.
Havis, Inc.
75 Jacksonville Road
Warminster, PA 18974
www.havis.com
1-800-524-9900
DS-GTC-210-SERIES_OMN_11-17
Owner's Manual

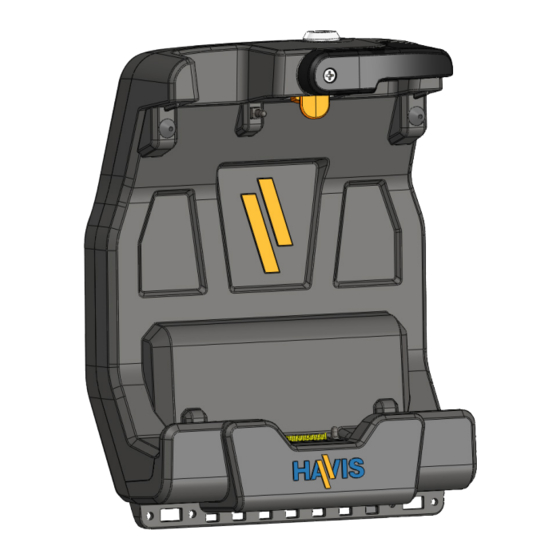

Havis Docking Station
For Getac F110 Rugged Tablet
DS-GTC-210 Series
DS-GTC-211
DS-GTC-212
DS-GTC-213
DS-GTC-211-3
DS-GTC-212-3
DS-GTC-213-3
www.havis.com
1-800-524-9900
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Havis DS-GTC-210 Series
Summary of Contents for Havis DS-GTC-210 Series
- Page 1 For Getac F110 Rugged Tablet DS-GTC-210 Series Related Products DS-GTC-211 DS-GTC-212 DS-GTC-213 Havis offers a wide variety of accessory products specifically for use DS-GTC-211-3 DS-GTC-212-3 DS-GTC-213-3 with the DS-GTC-210 Series Docking Station. For more information or to order, please visit www.havis.com.
- Page 2 (Original Instructions) DS-DA-311 - Remote USB Extension Cable Havis is pleased to provide this Owner’s Manual to aid in the proper (For further Installation Instructions, refer to the Instructions included with DS-DA-311) installation and use of the DS-GTC-210 Series Docking Station for Determine if USB will exit the left or right side of Docking Station.
- Page 3 Bruce Jonik, Director of Engineering , Havis, Inc. FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-GTC-21X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment.
- Page 4 Parts Included Operation - Docking Docking Station Hold tablet in landscape orientation, with bottom angled toward Docking Station. Lower tablet into the bottom of the Docking Station. Latch Handle Barrel Lock Latch Tab Locator Pin Bumpers Docking Connector Pivot tablet so the top aligns with the Locator Pin at the top of the Docking Station.
- Page 5 (optional) DS-GTC-212-3, DS-GTC-213-3 Alignment Posts Alignment Sockets Antenna A: WLAN (WiFi) DS-GTC-210 Series Docking Station Antenna B: WWAN Back Side of Getac F110 Rugged Tablet (Cellular) Antenna C: GPS Ensure Docking Station is unlatched by lifting Latch Handle. Power Input...
- Page 6 Typical Motion Device Example (not included) Collect cables and secure to the mounting system. This loop must be large enough (Note: Mounting system not included) to allow full range of expected rotation and extension without stressing connections. www.havis.com • 1-800-524-9900...
