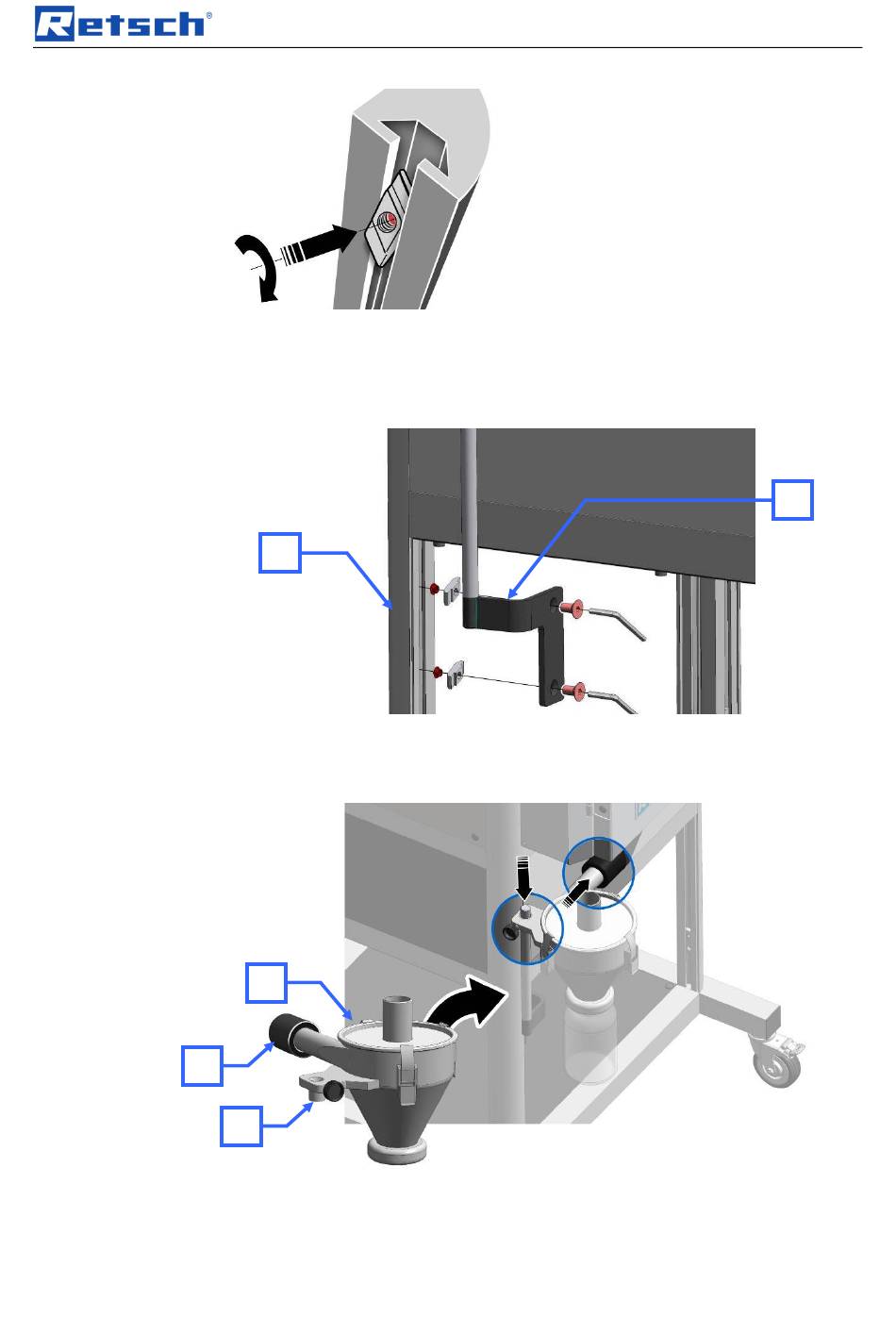

Fig. 5: Turning the sliding block
•
Push in the sliding block against the resistance of the plug and turn the
sliding block to the position indicated.
•
Insert the second sliding block in the same way.
GF
Fig. 6: Fastening the cyclone support
•
Fasten the cyclone support (Z3) on the front left-hand leg of the housing
(GF).
Z
Z1
Z2
Fig. 7: Installing the cyclone
•
Connect the cyclone (Z2) onto the rod of the stand on the cyclone support.
Assembling and using the cyclone
Z3
11
