Summary of Contents for Retsch BB300

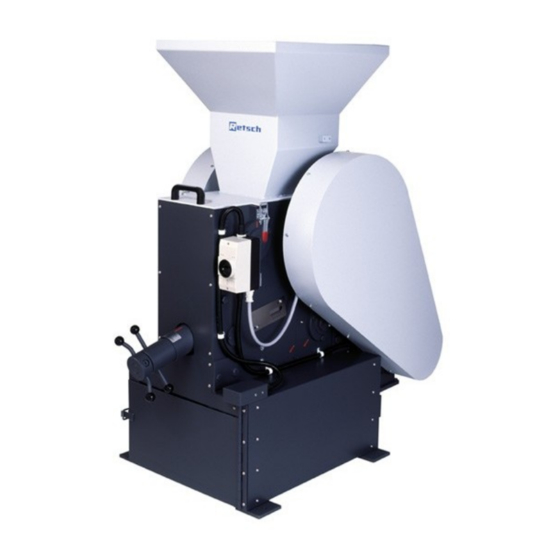

- Page 1 Operating instructions for jaw crusher type BB300 Retsch GmbH , 42781 Haan , Retsch-Allee 1-5, Germany 2/7/2012 0002...
-
Page 2: Notes On The Operating Instructions
This technical documentation comprises a reference work and a training guide. The individual chapters are self-contained units. These operating instructions do not contain any instructions on repairs. Should any repairs become necessary, please contact your supplier or Retsch GmbH. 07/02/2012 Retsch GmbH... -
Page 3: Table Of Contents
Capacity ......................16 General ....................17 Cleaning ......................17 Maintenance ....................17 Tests ......................... 17 Replacing crusher jaws .................. 18 Accessories ...................... 18 Copyright......................18 Modifications ....................18 Safety instructions (table) ................19 Appendix ..............following pages 07/02/2012 Retsch GmbH... -
Page 4: Safety
Target group: All persons dealing with the machine in any way The BB 300 is a modern, powerful product from Retsch GmbH. It reflects the state of the art. When the machine is handled correctly by persons familiar with this technical documentation, it is completely safe and reliable in operation. -
Page 5: Warning Symbols
Damage to property Repairs These operating instructions do not contain any instructions on repairs. For your own safety, only have repairs performed by Retsch GmbH or an authorised agent (service technicians). In such a case, please inform: The Retsch agency in your country... -
Page 6: Technical Data
// ores // rock // glass // ceramics // coal // minerals // slags // cement clinker etc. Should you require any further details, the Retsch applications laboratory will be pleased to assist. Do not modify the machine in any way, and use only spare parts and accessories approved by Retsch. -
Page 7: Equipment Dimensions
Filling of milling chamber: approx. 65% Equipment dimensions Height: approx. 1450 mm Width: approx. 670 mm Depth: approx. 1600 mm Weight: approx. 700 kg net Mounting surface required 670 mm x 1600 mm; no safety clearances necessary! 07/02/2012 Retsch GmbH... -
Page 8: Dimensional Chart
Dimensional chart 07/02/2012 Retsch GmbH... -
Page 9: Transport And Installation
Also ensure that the BB 300 is stored in a dry location for interim periods. Fig.1 Temperature fluctuations When there are severe temperature fluctuations (e.g. during air transport) the BB 300 is to be protected from condensation. The electrical components may otherwise be damaged. 07/02/2012 Retsch GmbH... -
Page 10: Parameters For The Installation Location
Fit the feed hopper. Insert the eight hexagon screws SK and tighten them well with a 13 mm AF spanner. Fig.2a Operation of the BB 300 without the feed hopper fitted is impermissible. Risk of crushing fingers and hands! 07/02/2012 Retsch GmbH... -
Page 11: Electrical Connection
Prior to initial start-up, check the direction of rotation. See the direction arrow on the motor. If the direction of rotation is incorrect, crushing performance is inadequate and mechanical components can be damaged. 07/02/2012 Retsch GmbH... -
Page 12: Operation
Operation Target group: Operators Controls and operation Graphical representation of the controls Fig.3 07/02/2012 Retsch GmbH... -
Page 13: Overview Table For The Graphic
Wear plates Prevent wear on the side parts. Accommodates crusher jaw K, facilitates adjustment of Fixed crusher arm gap width with spindle O. Accommodates crusher jaw K, performs the necessary Moving crusher arm crushing motion. 07/02/2012 Retsch GmbH... -
Page 14: Starting The Bb 300
Release the hexagon or knurled head screws S1 with an 8 mm AF Fig.5 spanner. Slide the “0” position on scale M to the zero position of pointer L. Re-tighten the hexagon or knurled head screws S1. 07/02/2012 Retsch GmbH... -
Page 15: Feeding In Process Material
If the crusher chamber W is filled more than 2/3 (3500ml), the guide plates on the feed hopper can be damaged and process material conveyed by the moving crusher arm into the crusher casing behind the crusher arm. 07/02/2012 Retsch GmbH... -
Page 16: Notes On Working Procedures
If the crusher chamber W is filled more than 2/3 (3500ml), the guide plates on the feed hopper can be damaged and process material conveyed by the moving crusher arm into the crusher casing behind the crusher arm. 07/02/2012 Retsch GmbH... -
Page 17: General
Limit switch E must operate, and the BB 300 stop. If the limit switch does not operate, it requires resetting as described below, or otherwise Fig.9 Close door D and catch E. The BB 300 must not start. Start the BB 300 at main switch A. 07/02/2012 Retsch GmbH... -
Page 18: Replacing Crusher Jaws
Copyright This documentation may only be duplicated or passed on to third parties, its contents passed on or otherwise used with the express approval of Retsch GmbH. Violators will be liable for damages. Modifications We reserve the right to make technical modifications without notice. -
Page 19: Safety Instructions (Table)
In the case of the delivery being incomplete and/or Later complaints can under certain circumstances no transport damage, you must inform the carrier and longer be considered. Retsch GmbH immediately (within 24 h). Environmental temperature Drops below 5°C Electronic and mechanical components can become Rises above 40°C... - Page 21 Authorized person for the compilation of technical documents: J. Bunke (technical documentation) The following records are held by Retsch GmbH in the form of Technical Documentation: Detailed records of engineering development, construction plans, study (analysis) of the measures required for conformity assurance, analysis of the residual risks involved and operating instructions in due form according to the approved regulations for preparation of user information data.
- Page 24 Copyright ® Copyright by Retsch GmbH Haan, Retsch-Allee 1-5 D-42781 Haan Federal Republic of Germany...
