Assembling and using the cyclone
10

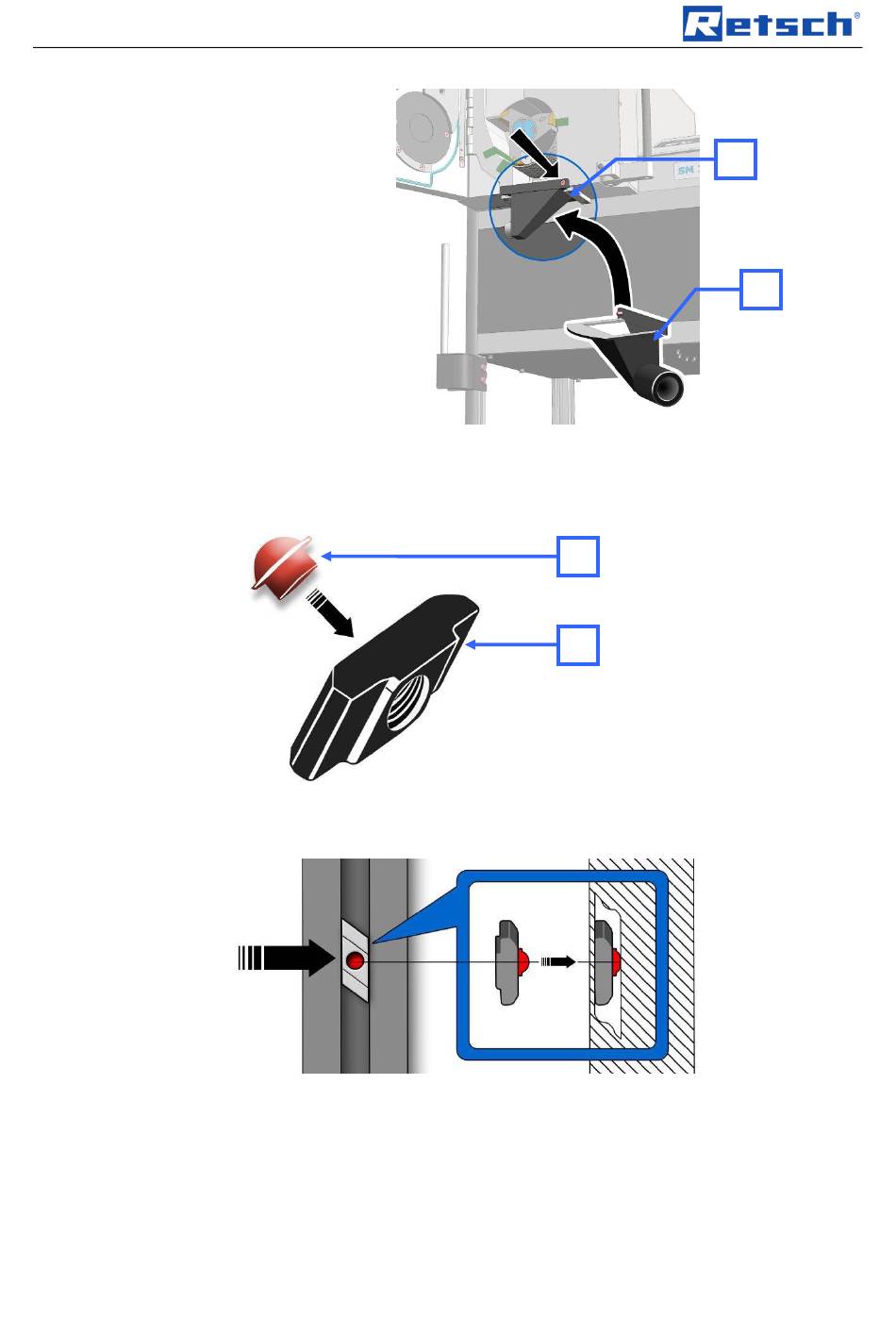

Fig. 2: Fastening the discharge flange
•
Insert the retrofit dust removal (U).
•
Tighten the screw (U1).
Fig. 3: Inserting the plug for the sliding block
•
Insert the plug (HS) into the back (flat surface) of the sliding block (NS).
Fig. 4: Inserting the sliding block
•
Guide the sliding block with plug into the aluminium profile.
U1
HS
NS
U
