3 )
A S S E M B L Y :
4x
2x
4x
I N S T A L L A T I O N
F I G U R E 3 . 1
F I G U R E 3 . 2
F I G U R E 3 . 3
G U I D E

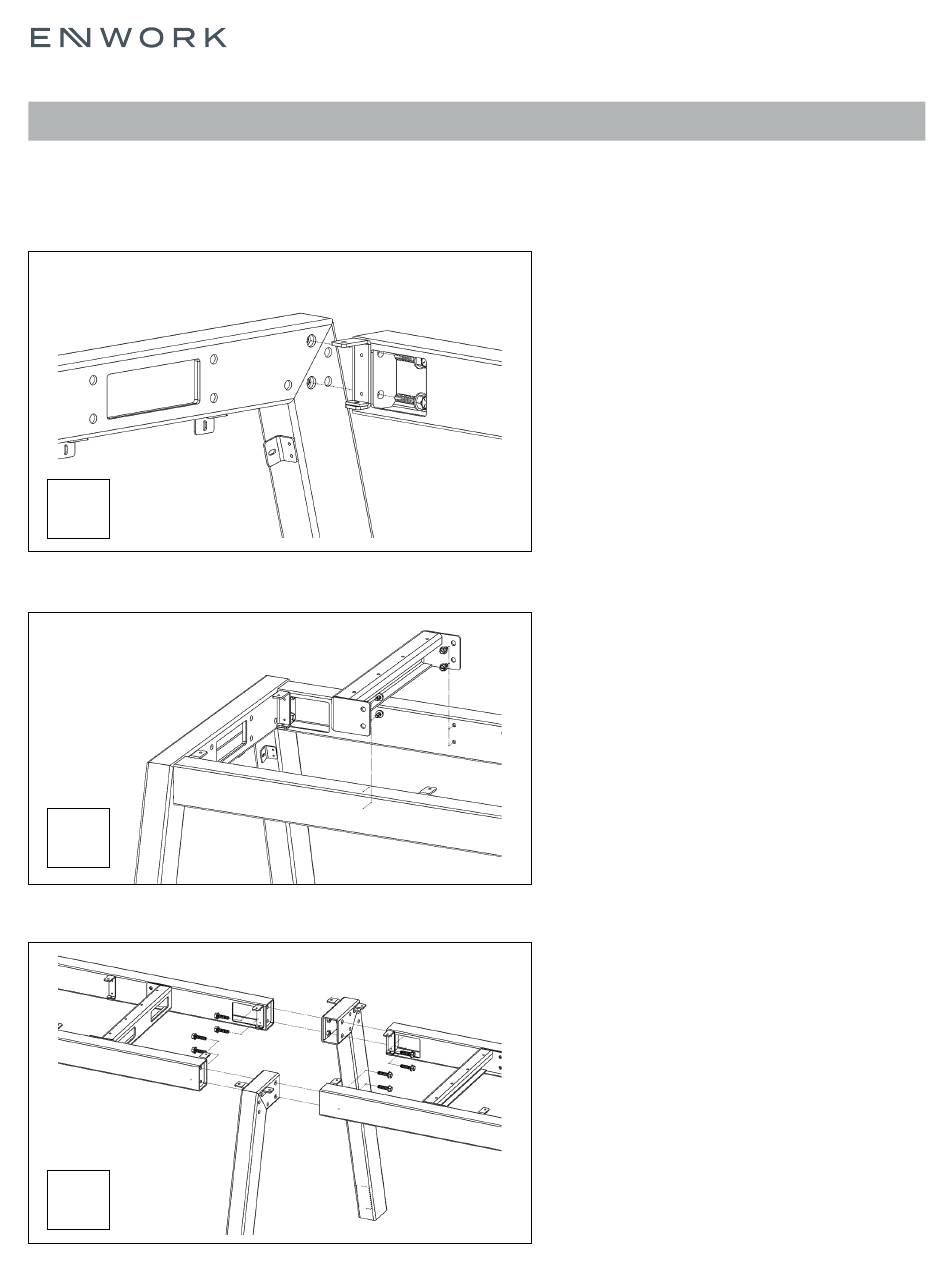

Attach Beam Weldment to End Leg
Weldment using 5/16-18 X 1-1/4" Serrated
Flange Bolt.
Note: Snug fit. DO NOT tighten
Attach Beam Stretcher to Beam Weldment using
5/16-18 x 1/2" Flange Bolt. Insure Beam Stretcher
tabs are facing the middle of the Beam Weldment.
Note: 2x Beam Stretcher per Beam Weldment
Snug fit. DO NOT tighten
When Mid Legs are required, attach Mid Leg
Weldment to Beam Weldment using 5/16-18 X
1-1/4" Serrated Flange Bolt.
Mid Legs may not apply to all applications.
Note: Snug fit. DO NOT tighten
