molex HTR4971E Specification Sheet

Hand crimp tool for board-in crimp terminals
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

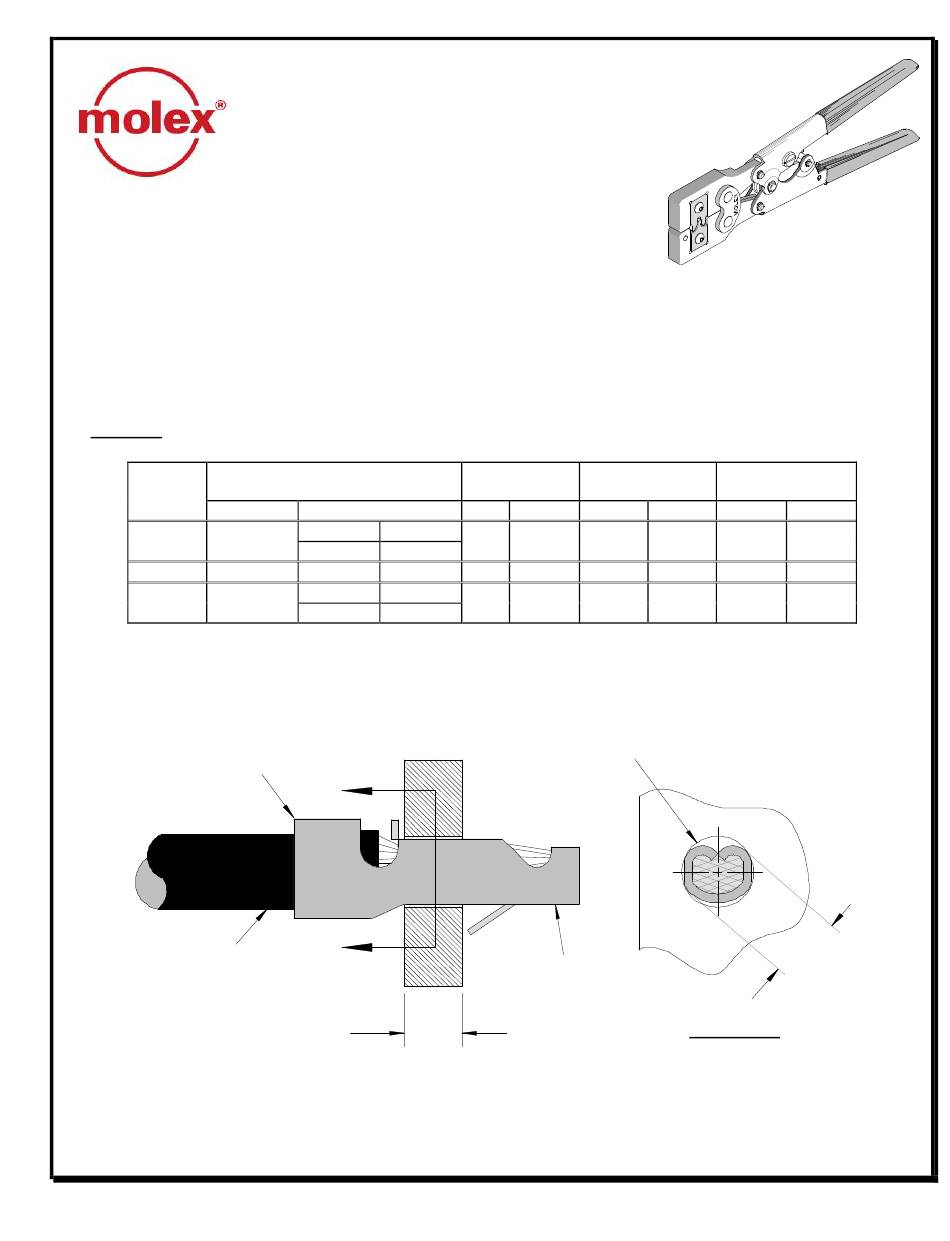

Hand Crimp Tool for Board-In Crimp Terminals
FEATURES
Simple trouble-free full cycle mechanism assures consistent complete terminations
All crimp cavities are fully machined in high carbon steel, then heat treated
Replaceable crimp inserts
SCOPE
Products: Board-In Crimp Terminal, 22-26 AWG.
Terminal
Series No.
Loose Piece
4811
41817
42001
CRIMPED TERMINAL
INSULATION
CRIMP
WIRE
1.57 ± ± ± ± 0.18 mm (.062 ± ± ± ± -.007")
Thick PC Board
Doc No: ATS-011010085
Revision: C
Hand Crimp Tool
Specification Sheet
Order No. 11-01-0085
Engineering No. HTR4971E
Terminal Order No.
Reel
16-02-0034 16-02-0047
16-02-0120 40-08-0631
16-02-0118
40-01-0610 40-08-0605
40-02-0601 40-08-0606
A
A
Figure 1
Release Date: 11-29-04
Revision Date: 04-18-08
Insulation Diameter
Wire Size
Maximum
AWG
mm²
mm
22-26 0.12-0.35
1.52
22-26 0.12-0.35
1.52
22-26 0.12-0.35
1.52
1.30 ± ± ± ± 0.06 mm (.051 ± ± ± ± -.002")
Diameter PC Board Hole
CONDUCTOR
CRIMP
UNCONTROLLED COPY
TYPE 3
Strip Length
In.
mm
In.
.060
5.97-6.35 .235-.250
.060
5.97-6.35 .235-.250
.060
5.97-6.35 .235-.250
E-E
Section A-A
Page 1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTR4971E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for molex HTR4971E

Summary of Contents for molex HTR4971E

  • Page 1 Hand Crimp Tool for Board-In Crimp Terminals Hand Crimp Tool Specification Sheet Order No. 11-01-0085 Engineering No. HTR4971E TYPE 3 FEATURES Simple trouble-free full cycle mechanism assures consistent complete terminations All crimp cavities are fully machined in high carbon steel, then heat treated...

  • Page 2: Operation

    Hand Crimp Tool for Board-In Crimp Terminals CONDITIONS: After crimping, the conductor profiles should measure the following (see notes on page 4). E-E Dimension Wire Size Pull Force Minimum (Figure 1) Terminal Series No. 0.35 1.19-1.24 .047-.049 13.3 4811 0.20 1.19-1.24 .047-.049 13.3...

  • Page 3: Crimping Terminals

    3. Complete the crimp by closing the hand tool handles until they release. 4. Remove the crimp and inspect for proper crimp. Molex offers a Crimp Inspection Handbook for closed barrel industrial product. See our website or contact your sales engineer.

  • Page 4: Warranty

    3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools (see warranty above). The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.

  • Page 5: Parts List

    2222 Wellington Ct. 1-800-78MOLEX 81-462-65-2324 65-6-268-6868 49-89-413092-0 Lisle, IL 60532 U.S.A. amerinfo@molex.com feninfo@molex.com fesinfo@molex.com eurinfo@molex.com 630-969-4550 Fax: 630-969-1352 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-011010085 Release Date: 11-29-04 Page 5 of 5 Revision: C Revision Date: 04-18-08...
