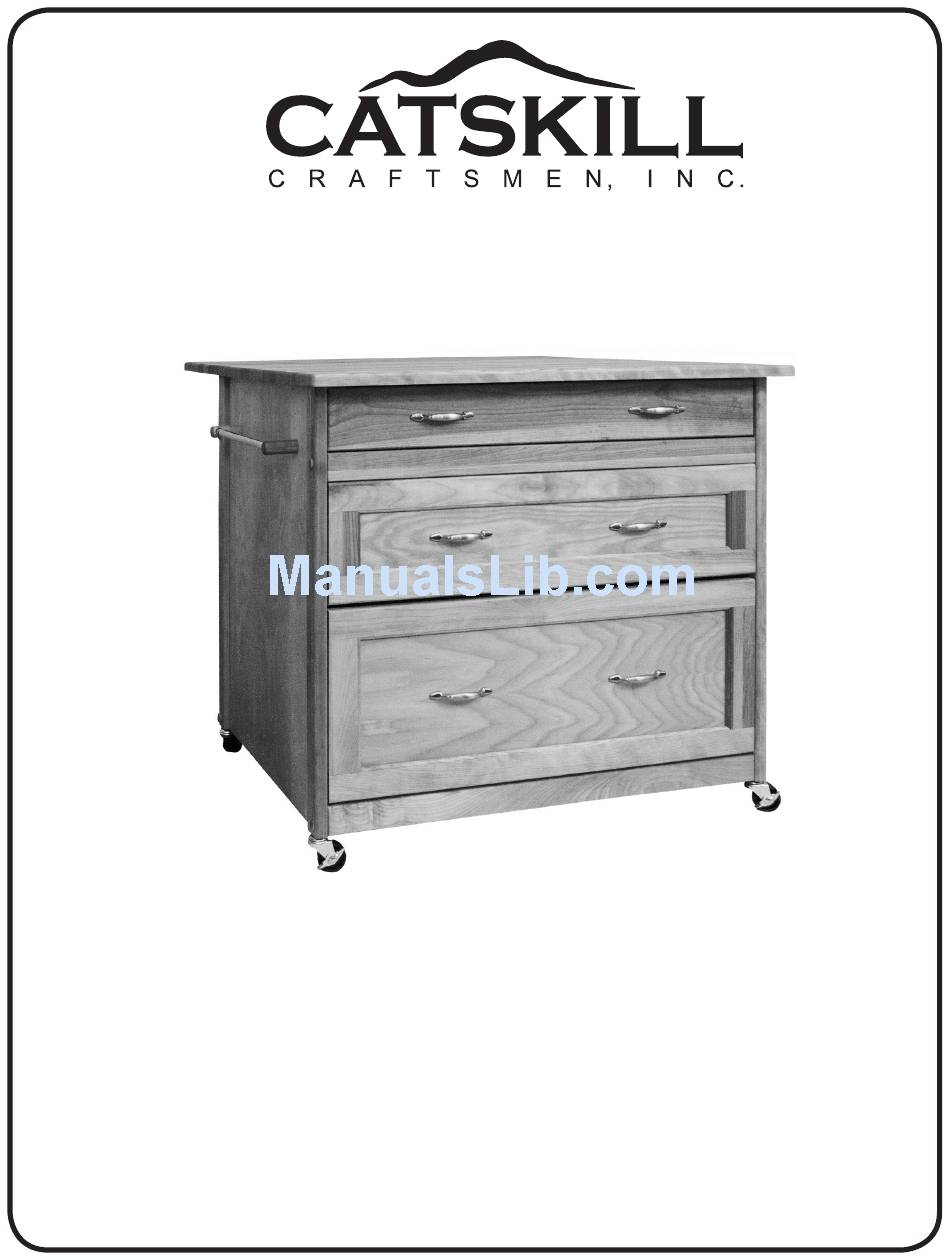

Assembly Instructions
Model 15216
Three Drawer Work Center
GENERAL:
1. You have purchased model 15216.
2. Should you need assistance or need to replace a damaged or missing part simply give us a call M-F at
607-652-7321 from 7:30 am - 4:30 pm EST and we'll send you the prepaid part via UPS usually that same day!
You may also email us info@catskillcraftsmen.com.
3. Read the assembly instructions and the enclosed brochure before beginning assembly. Assembly is easy
if you read and follow the instructions step by step. See our website for assembly tips and videos:
www.catskillcraftsmen.com
4. The only tools needed are a hammer and a screwdriver. A power screwdriver is recommended. Where
possible we have packaged some of the screws in seperate labeled packages. A friend is recommended to assist
with the assembly. Some parts are large and awkward to hold in place.
5. Glides are sometimes pre-packed with screws. These are not used.
6. Instructions (left/right, top/bottom) are given as you face an assembled unit.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 15216 and is the answer not in the manual?

Questions and answers

Related Manuals for CATSKILL 15216

Summary of Contents for CATSKILL 15216

  • Page 1 Three Drawer Work Center GENERAL: 1. You have purchased model 15216. 2. Should you need assistance or need to replace a damaged or missing part simply give us a call M-F at 607-652-7321 from 7:30 am - 4:30 pm EST and we’ll send you the prepaid part via UPS usually that same day! You may also email us info@catskillcraftsmen.com.
  • Page 2 P/N DL-15216 P/N TT-15216 Upper Drawer Front (1) P/N DF-15216 Upper Drawer Bottom (1) P/N TDB-15216 Upper Drawer Back(1) P/N UPPER DBK - 15216 Glide Support (2) P/N GLDSUP-15216 Side Panels (2) P/N SP/HDL-15216 Middle Drawer Front (1) P/N Mid DF-15216...

  • Page 3: Drop

    Hardware List Model 15216 To ease assembly, sort and count the hardware before getting started. (Cabinet Assembly) 1 3/4” Phillips Flat Head Bolt (8) 3/16” Flat Washer (20) (Drawer Backs Table Top Sticks) 1 1/4” Phillips Flat Head #8 Screw (20)

  • Page 4: Side

    STEP 1 A. Attach a Glide Support Stick to the top of each Side Panel using 1 1/4” #8 screws. The countersunk holes (reamed out) in the stick are positioned as in illustration below so that the glide holes are toward the lower edge. Sticks should be flush with top of panel. B.

  • Page 5: Lower Drawer

    STEP 2 Attach Glides to Side Panels Push this lever down, then 1. Remove the drawer side slide the inner glide section out of the glide assembly. section of the glide by pushing the black lever down and sliding the steel inner glide Face of section all the way out of the Glide...

  • Page 6: Back

    TIPS ON HOW THE BASTION FASTENING SYSTEM WORKS 1. The Bastion fastening system consists of a steel post (threaded on one end with a hole through the shaft on the other end); a Barrel Nut (cylindrical barrel-shaped with threaded Illustration Bas. 1 open end &...
  • Page 7 STEP 3 A. Attach the Top Drawer Back to the Drawer Sides with four 1 1/4” #8 screws. There are left and right sides. Make sure the slots that run the length of the Sides are aligned with the slot in the Drawer Back to accept the Drawer Bottom.
  • Page 8 STEP 4 perform a similar drawer assembly as Step 3 for the lower drawers. A. Using 1-1/4” #8 screws, attach the drawer back to the drawer sides as shown below B. Slide the drawer bottom into the slots. C. Insert Bastion Posts into the drawer front and tighten into position. D.
  • Page 9 STEP 5 A. Take the 2 front braces and tap/insert one 3/4” steel pin into each end of both braces until seated. About 3/8” will stick out when seated. OK if loose. 4 Used in this step 3/4” Long 3/16” DIA. Steel Pin STEP 6 A.
  • Page 10 STEP 7 A. Take the Bottom Front Brace and insert the pin in the right end of the brace into the slot in the top of the right front leg and slide down as in the illustration. The pin in the left end of the brace will be outside the slot at this time.
  • Page 11 STEP 9 Attach Towel Bars to the Side Panels with 1” #8 screws from inside each Side Panel. Place a washer over the screws. STEP 10 A. Assemble top by placing the top and the drop leaf upside down on a smooth flat surface. Install hinges using 5/8 #8 screws.
  • Page 12 STEP 11 Upright the unit. Slide the lower drawers into place. In initially seating the glides the drawer will stop about 2/3 of the way in when the glides hit the plastic tabs. At this point just shove the drawer in with a little force.
  • Page 13 Visa and Address _____________________________ Mastercard are accepted online. City ________________________________ State ________________ Zip ___________ Catskill Craftsmen, Inc. Please make checks payable to Catskill Craftsmen Inc. 15 West End Ave. 15 West End Ave., Stamford, NY 12167-1296 Stamford, NY 12167-1296...
