Assembly Instructions
Model 51527

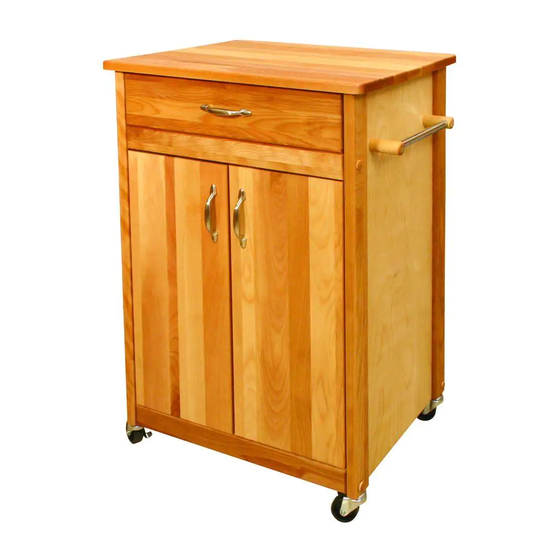

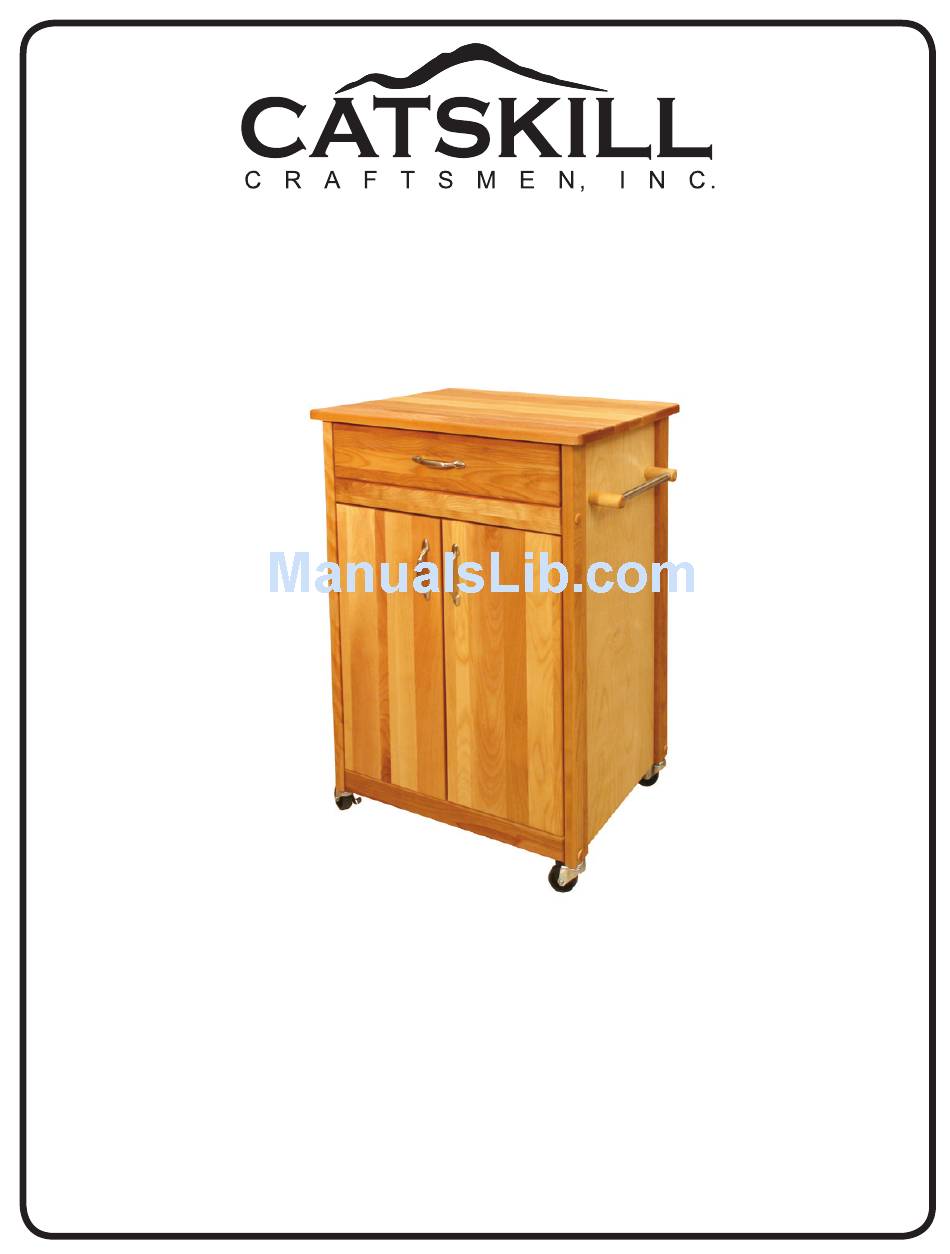

Butcher Block Cart with Flat Panels
GENERAL:
1. You have purchased model 51527.
2. Should you need assistance or need to replace a damaged or missing part simply give us a call M-F at
607-652-7321 from 7:30 am - 4:30 pm EST and we'll send you the prepaid part via UPS usually that same
day! You may also email us info@catskillcraftsmen.com.
3. Read the assembly instructions and the enclosed brochure before beginning assembly. Assembly is
easy if you read and follow the instructions step by step. See our website for assembly tips and videos.
4. Tools required: Phillips screwdrivers, medium and small; medium flat blade screwdriver and a hammer.
5. Drawer glides are sometimes pre-packed with screws, these are not used.
6. Directions (left/right, front/back) are given as facing the front of an assembled upright unit.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 51527 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CATSKILL 51527

Summary of Contents for CATSKILL 51527

  • Page 1 Butcher Block Cart with Flat Panels GENERAL: 1. You have purchased model 51527. 2. Should you need assistance or need to replace a damaged or missing part simply give us a call M-F at 607-652-7321 from 7:30 am - 4:30 pm EST and we’ll send you the prepaid part via UPS usually that same day! You may also email us info@catskillcraftsmen.com.
  • Page 2 P/N: DOR - 51527/R Not Used if present Bottom Brace (1) Door Spacer (1) Drawer Front (1) P/N: B - 51527 BF P/N: DORS - 51527 P/N: DF - 51527 DF Not used if present Top Brace (1) Glide Support Sticks (2)

  • Page 3: Table Of Contents

    HARDWARE 51527 (used for towel bar) 1” Phillips Flat Head #8 Screw (2) 1 3/4” Phillips Flat Head Bolt (8) (used to attach drawer front) 3/16” Flat Cam Posts (2) Towel Bar Post (2) Washer (4) 1 1/4” Phillips Flat Head #8 Screw (12)

  • Page 4: P/N:

    STEP 1 Glide Support Assembly Decide at this point if you want the handle/towel bar on the right or the left side of the cabinet as side panels are interchangeable. At this point the metal glides will determine left side/right side once installed.

  • Page 5: Phillips Flat Head

    STEP 2 A. Lay back panel flat on a smooth surface with holes up. 4 Used in this step B. We placed the handle/towel bar on the right for these 1 3/4” Phillips Flat Head Bolt (8) instructions. C. Attach side panels with 1 3/4” bolts and hex nuts. After 4 Used inserting bolt(s) through the holes in the side panels and in this step...

  • Page 6: Drawer

    STEP 4 A. Attach the drawer back to the drawer sides with four 1 1/4” #8 screws. Make sure parts are aligned as in illustration 4A. B. Insert drawer bottom into the slots in the drawer sides, best side to inside of drawer. Slide down until seated in the slot in the drawer back.

  • Page 7: Magnet

    STEP 5 Take the 2 front braces and tap/insert one 3/4” steel pin into each end of both braces until seated. About 3/8” will stick out when seated. Ok if loose. 4 used in this step 3/4” Long 3/16” DIA. Steel Pin STEP 6 A.
  • Page 8 STEP 7 Place a washer on the 1” #8 screws and attach handle/ towel bar to side panel from inside the side panel. 2 used in this step 1” Phillips Flat Head #8 Screw 2 used in this step 3/16” Flat Washer ILLUSTRATION 7 STEP 8 A.

  • Page 9: Wooden

    STEP 9 A. Install doors by inserting pins in the door tops into the holes in the long edge top front brace. B. Place one washer on each of the pins in the door bottoms. C. Take the bottom front brace, align pins in door bottoms with holes along top long edge of brace (are washers on pins?) and secure brace with 1 3/4”...

  • Page 10: Caster

    STEP 11 A. Insert and tap caster sockets with hammer until the teeth grab the wood. DON’T POUND SOCKET FLAT OR CASTER SHAFT WILL NOT ENTER. B. Insert casters and seat by pushing straight downward with heel or your hand, or tap into place with a hammer.
  • Page 11 Catskill Craftsmen’s factory. For Please send me______# of bottle(s) of the one eight ounce (8 fl. oz.) bottle, which Catskill Craftsmen Butcher Block Oil at $6.95 is sufficient for two applications, simply per bottle. My check or money order is send $6.95 along with the completed...
