UG-1921
Label Function
H Click Proceed to Memory Map to open the ADMV8818 Memory Map (see Figure 8).
All changes, except within the CONFIGURATION section, do not take effect until clicking Apply Changes. If Auto Apply is
J1
highlighted in the ADMV8818 Board tab (see Figure 5), the Apply Changes feature continuously runs every few seconds, and Apply
Changes does not need clicking to apply or read back the block diagram settings.
J2 To read back all of the SPI registers of the chip, click Read All.
J3 Click Reset Chip to reset the chip.
J4 Click Diff to show registers that are different on the chip.
J5 Click Software Defaults to restore the software defaults to the chip, and then click Apply Changes. The software defaults for
the ADMV8818 is for all registers to be zero, except for Register 0x011, which is set to 0x7F.
J6 Click Memory Map Side-By-Side to enable the side by side memory map view.
ADMV8818-EVALZ

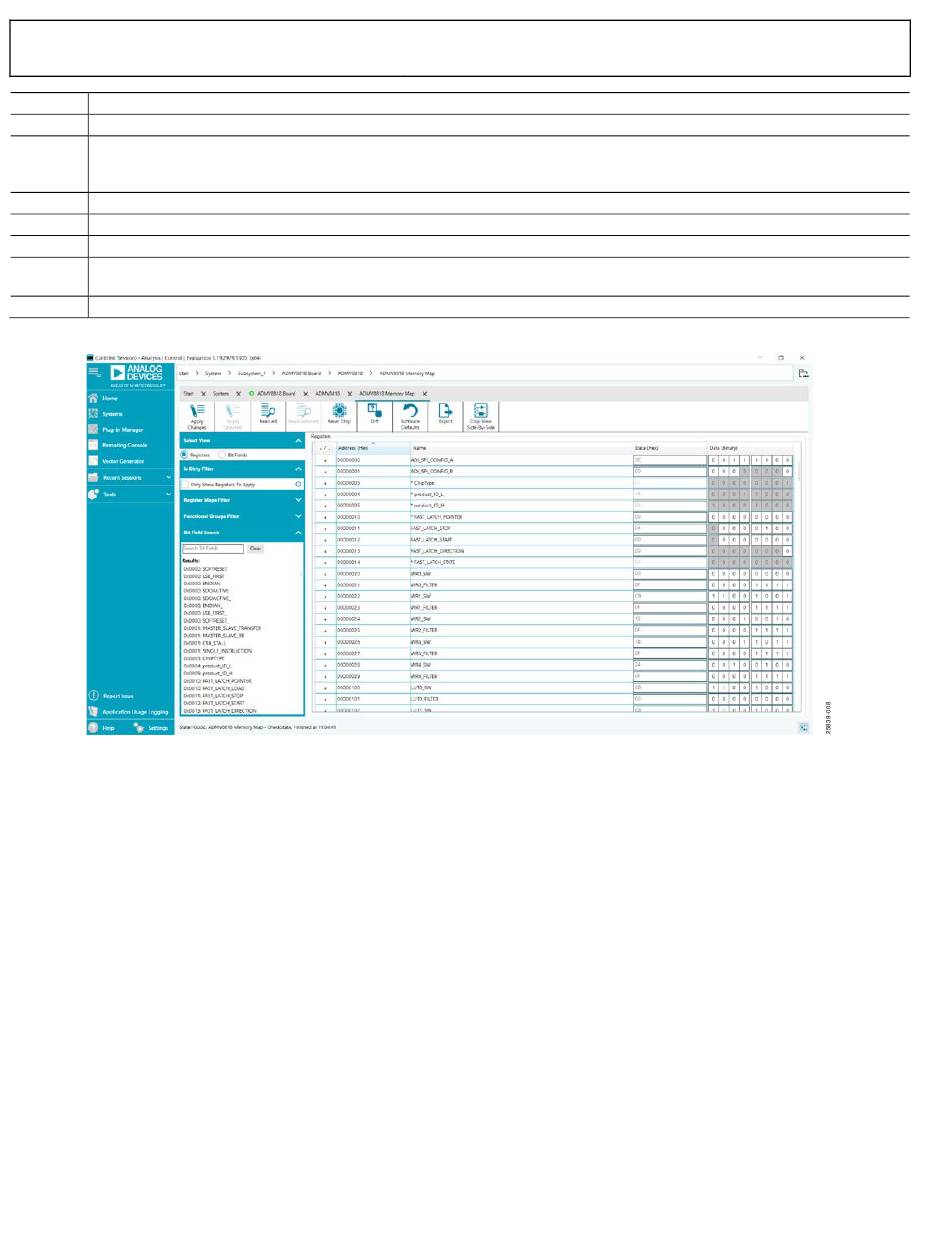

Figure 8. ADMV8818 Memory Map in the
Rev. 0 | Page 8 of 18
Evaluation Board User Guide
ACE Software
