PLUGIN OVERVIEW

When the ADMV8818-EVALZ is connected to the PC, the
ADMV8818 Board appears in the Attached Hardware section
of the Start tab. Double click the ADMV8818 Board plugin to
open two tabs, the board level plugin and the chip level plugin,
which are the ADMV8818 Board plugin view (see Figure 5) and
the ADMV8818 chip plugin (see Figure 6), respectively.
The ADMV8818 chip plugin includes the following feature
sections (see Table 1 for additional information on these
sections):
•
The CONFIGURATION section (load from CSV)
•
The Logic Pins section
•
The SFL Settings section
•
The chip Status section
•
The Display controls section
•
The Filter Settings section
The ACE software provides a simple tutorial for testing the
ADMV8818. For a more customized and detailed implementation,
refer to ADMV8818 data sheet for a full description of the
functionality, registers, and corresponding settings.
Evaluation Board User Guide

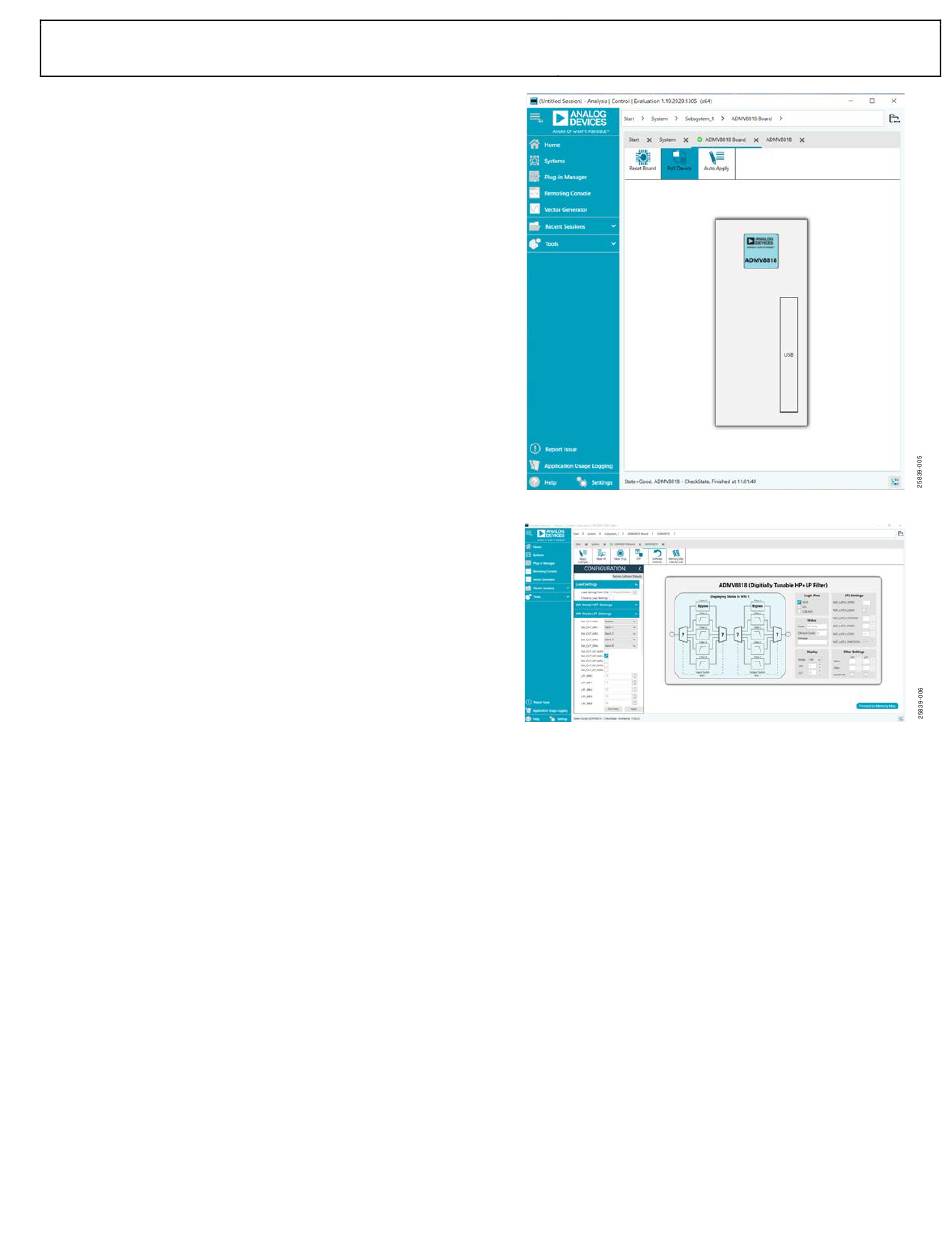

Figure 5. ADMV8818 Board Plugin View
