Installing Optional Hardware
Either the mLAN expansion board (mLAN8E) or the
I/O expansion board (AIEB 2) sold separately can
be installed to the MOTIF.
With the mLAN8E board, you can conveniently and
easily hook up your MOTIF to other mLAN-
compatible instruments or devices. The AIEB 2 board
gives you additional digital I/O options, featuring both
optical and coaxial connectors. Moreover, the board
also includes three stereo ASSIGNABLE
OUTPUT pairs (six analog jacks).

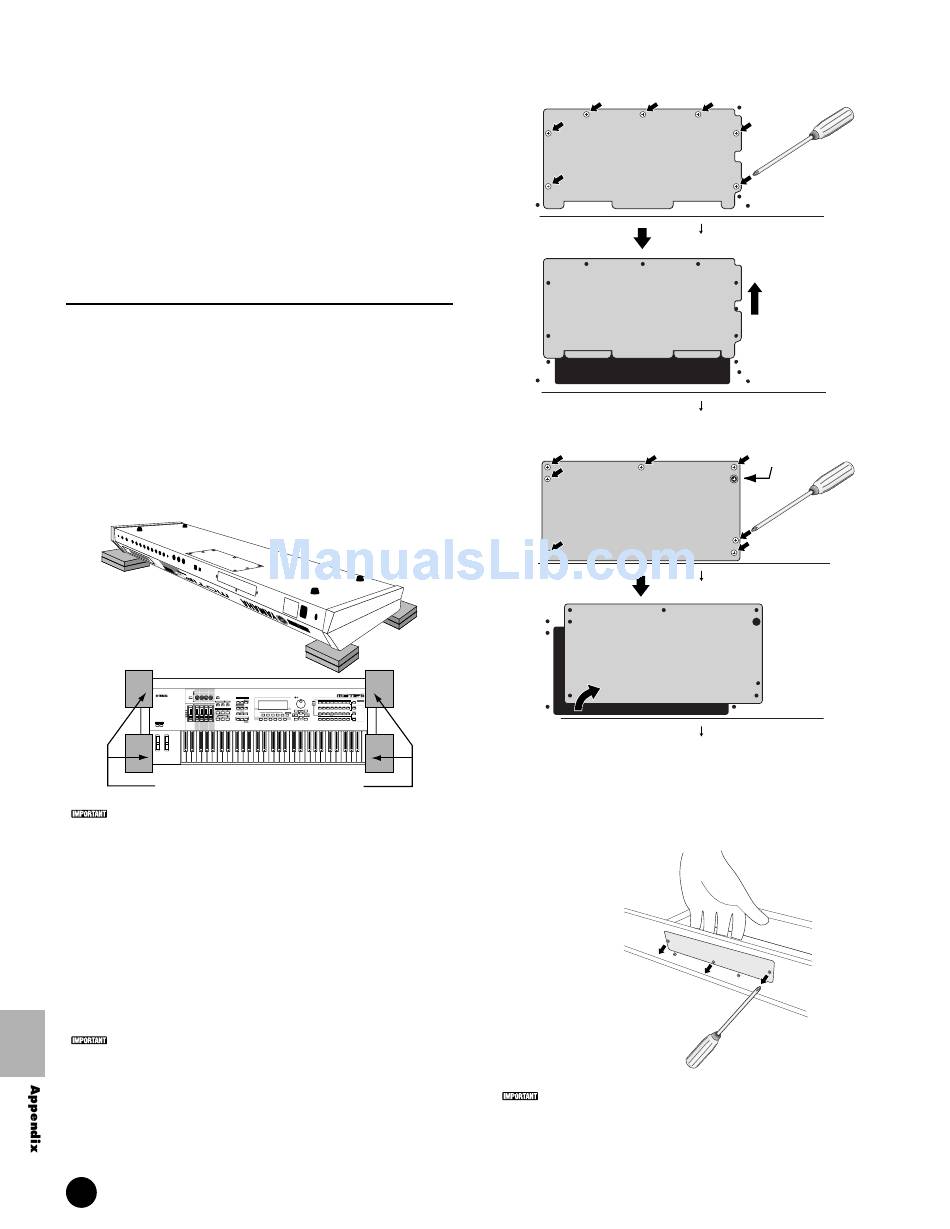

Installing the AIEB2
1
Turn the MOTIF power off, and disconnect the
AC power cord. Also, make sure to disconnect the
MOTIF from any connected external devices.
2
Turn over the MOTIF so you can have direct
access to the underside. To protect the Knobs and
Wheels, place the keyboard so the four corners are
supported by something that provides sufficient
support like magazines or cushions.
View of the keyboard
from the bottom.
PAN REVERB CHORUS TEMPO
CUTOFF RESONANCE ATTACK RELEASE
CONTROL KNOB ASSIGN A ASSIGN B ASSIGN 1 ASSIGN 2
FUNCTION
KN 1 KN 2 KN 3 KN 4
MEQ LOW MEQLOWMID MEQ HI MID MEQ HIGH
MASTER
VOLUME VOLUME 1 VOLUME 2 VOLUME 3 VOLUME 4
OCTAVE CS 1 CS 2 CS 3 CS 4
DOWN UP
ZONE 1 ZONE 2 ZONE 3 ZONE 4
Please the supports at all four corners
without touching the Knobs and the Wheels.
Be careful not to drop or bump the keyboard and make
sure that it is well balanced before proceeding.
3
Remove the cover of the bottom. Unscrew the
screws on the bottom using the driver by placing
the back sides of the ripped over body facing to you
(MOTIF6/ MOTIF7 has 7 screws and MOTIF 8
has 7 yellow screws.). Remove the cover from the
body after unscrewing all the screws. For
MOTIF6/MOTIF7 place the back side facing to
you and slide the over toward front to remove the
cover.
Keep the removed screws in a safe place. They will be
used when attaching the cover to the MOTIF again after
installing the AIEB2.
284
MOTIF Appendix
CONTROL REMOTE MUSIC PRODUCTION SYNTHESIZER
ON/OFF Real-time External Control Sur face Integrated Sampling Sequencer
Modular Synthesis Plug-in System
MODE SLOT 1 SLOT 2 SLOT 3
CATEGORY
VOICE PERFORM MASTER DRUM KITS PRE 1 PRE 2 PRE 3 GM USER PLG 1 PLG 2 PLG 3 SEARCH BANK
EFFECT BYPASS ARPEGGIO
INSERTION SYSTEM ON/OFF FAVORITES A. PIANO KEYBOARD ORGAN GUITAR / BASS STRINGS BRASS REED/PIPE
SEQUENCER COMMON PLUCKED
SONG PATTERN FILE A B C D E F G H SECTION GROUP
SEQ TRANSPORT
DEC/NO INC/YES SYN LEAD SYN PAD/ SYN COMP CHROMATIC DRUM / SE MUSICAL FX COMBI
CHOIR PERCUSSION PERCUSSION
SAMPLING INTEGRATED MIXING UTILITY 1 2 3 4 5 6 7 8 TRACK SELECT
SONG SCENE INFORMATION
SF 1 SF 2 SF 3 SF 4 SF 5
LOCATE 1 2
ELEMENT/ PERF.PART / ZONE
NUMBER
REC EDIT JOB STORE F1 F2 F3 F4 F5 F6 EXIT ENTER 9 10 11 12 13 14 15 16 MUTE
COMPARE SCENE STORE EXECUTE SOLO
SET LOCATE
MOTIF6 / MOTIF7
MOTIF8
4
Remove the three screws from the rear cover while
holding it from inside the MOTIF with your left
hand.
Underside of the MOTIF
Keep the removed screws in a safe place. They will be
used when attaching the cover to the MOTIF again
when the AIEB2 is removed in the future.
Bottom
Underside of the MOTIF
Slide the cover
away to remove.
Bottom
Underside of the MOTIF
Do not remove
this black screw.
Bottom
Underside of the MOTIF
Bottom
Underside of the MOTIF
