Mobatime MOBALine SEM 40 V2 Manual

MOBALine
Movement
SEM 40 V2 / SAM 40 V2
DCF active supported modes:
Unipolar:
Bipolar:
© MOBATIME

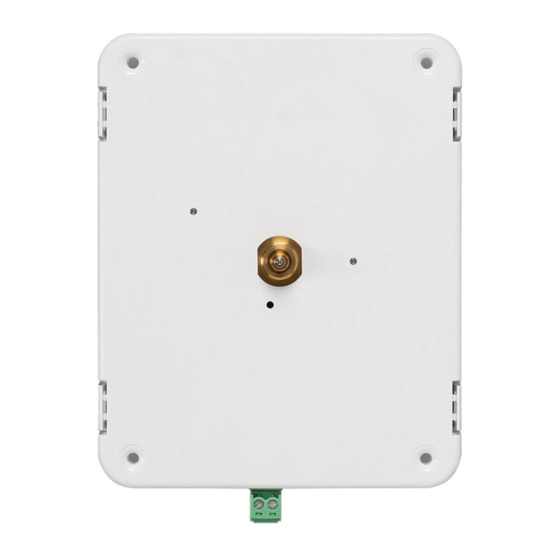

Self-setting movement with hour, minute and second display.
Suitable for indoor and outdoor clocks with dial diameters up
to 400 mm.
Types:
SEM 40 V2 (with second)
SAM 40 V2 (without second) Art. Nr.: 129425
- Fully controlled by a connected MOBALine master clock.
Automatic time adjustment and daylight saving time
changes. Signalization of missing MOBALine code recep-
tion after 24 hours by setting the hands to 12:00 position.
- The movement supports synchronization with DCF active
signals of modes 1, 3, 4 and 6 (see below). Summer and
winter time changeover takes place automatically. A failure
of the time signal is indicated after 7 days by setting the
hands to 12:00 o'clock.
The DCF-impulse code is also supported.
-
Same function as DCF active.
- Two motors: minute / hour and second.
Different running modes (stepwise or continuous) of the
-
minute and second hand selectable by means of DIP-
switches. When using MOBALine, the running mode can
also be set on the master clock.
- World time function supported by selection of a MOBALine
world time zone (1 out of 20 selectable by DIP switches).
This function is not available with DCF active signal.
- Fully powered by the connected time signal.
Art. Nr.: 129426
BE-800752.06
