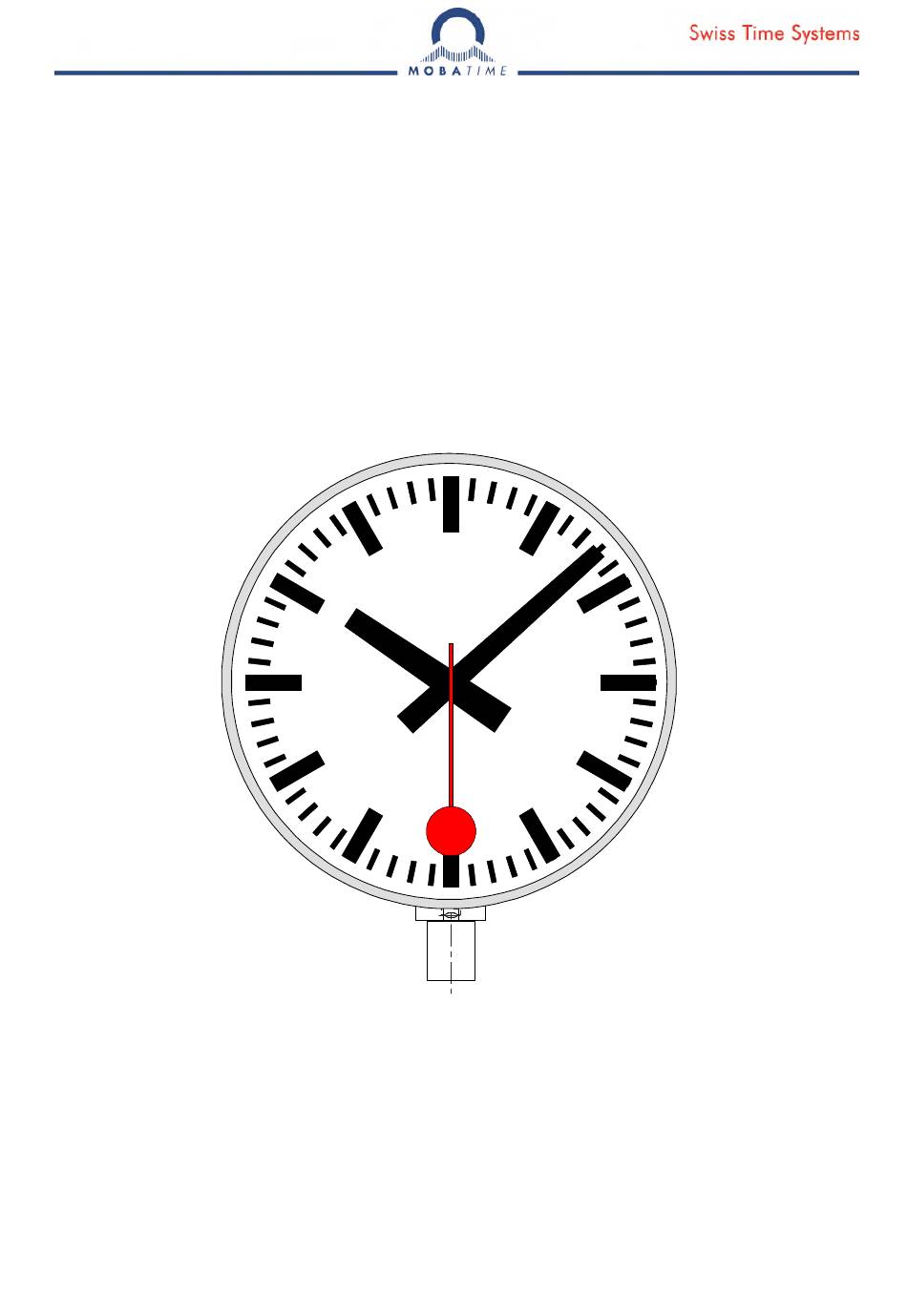

- Page 1 Mounting instructions METRO Outdoor clocks, round, single- and double-sided Before installation of the clock please read the manual carefully. © MOBATIME TE-801005.01...
- Page 2 6. It is prohibited to reproduce, to store in a computer system or to transfer this publication in a way or another, even part of it. The copyright remains with all the rights with BÜRK MOBATIME GmbH, D-78026 VS-Schwenningen and MOSER-BAER SA – CH 3454 Sumiswald / SWITZERLAND.
-
Page 3: Table Of Contents
Central post ZM (Mounting type zz = 40) ..............9 Lateral mounting to round post KRL (Mounting type zz = 30) ......... 9 Lateral mounting to square post KVL (Mounting type zz = 31)........ 9 © MOBATIME 3 / 12 801005.01... -
Page 4: Mounting Instructions
Dismantle the insulation of the connecting wires on a length of 8 – 9 mm and insert the wires up to the isolation in the terminal. The spring terminal can be opened with a screw driver size 0. Phase and neutral wire must be kept together close to the terminal using a cable tie. © MOBATIME 4 / 12 801005.01... -
Page 5: Open The Clock
2. Untighten and turn the dial fixation flaps. Carefully pull the dial together with the movement out from clock housing und disconnect the electrical terminals from the clock movement. 3. Deposit the dial with the movement and hands carefully. © MOBATIME 5 / 12 801005.01... -
Page 6: Exchange Of Movement And Dial
4. Pull the glass ring with the glass carefully over the housing frame and fix the ring with the 3 screws. Check, that the cables do not affect the clock illumination with shadows on the dials. © MOBATIME 6 / 12... -
Page 7: Mounting Types
= Movement code, see document TE-800800 und TE-801006 xxx = Dial: 100: with MOBATIME logo, 101: without logo Cover glass (1 = Mineral glass, 2 = Security glass, 3 = Polycarbonate glass) zz = Mounting types: 00 = Wall mounting (single-sided, E) -
Page 8: Wall Bracket Wa (Mounting Type Zz = 10)
Set four "set screws" into the dowels. Insert the cables through the bracket into the clock and fix the clock with 4 washers and 4 nuts. Nominal - Flange © MOBATIME 8 / 12 801005.01... -
Page 9: Central Post Zm (Mounting Type Zz = 40)
Nominal - The fixation to the square pole can be done with the clamping fixture and the 4 screws with nuts. For standard pole dimension: 150 mm Other dimensions on request. © MOBATIME 9 / 12 801005.01... - Page 10 © MOBATIME 10 / 12 801005.01...
- Page 11 © MOBATIME 11 / 12 801005.01...
- Page 12 19 ch. du Champ-des-Filles, CH-1228 Plan-les-Ouates Tel. +41 34 432 46 46 / Fax +41 34 432 46 99 Tel. +41 22 884 96 11 / Fax + 41 22 884 96 90 moserbaer@mobatime.com / www.mobatime.com export@mobatime.com / www.mobatime.com SALES SWITZERLAND...
