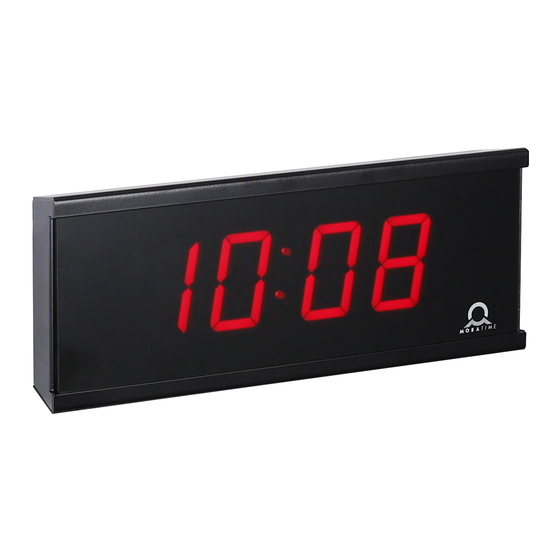

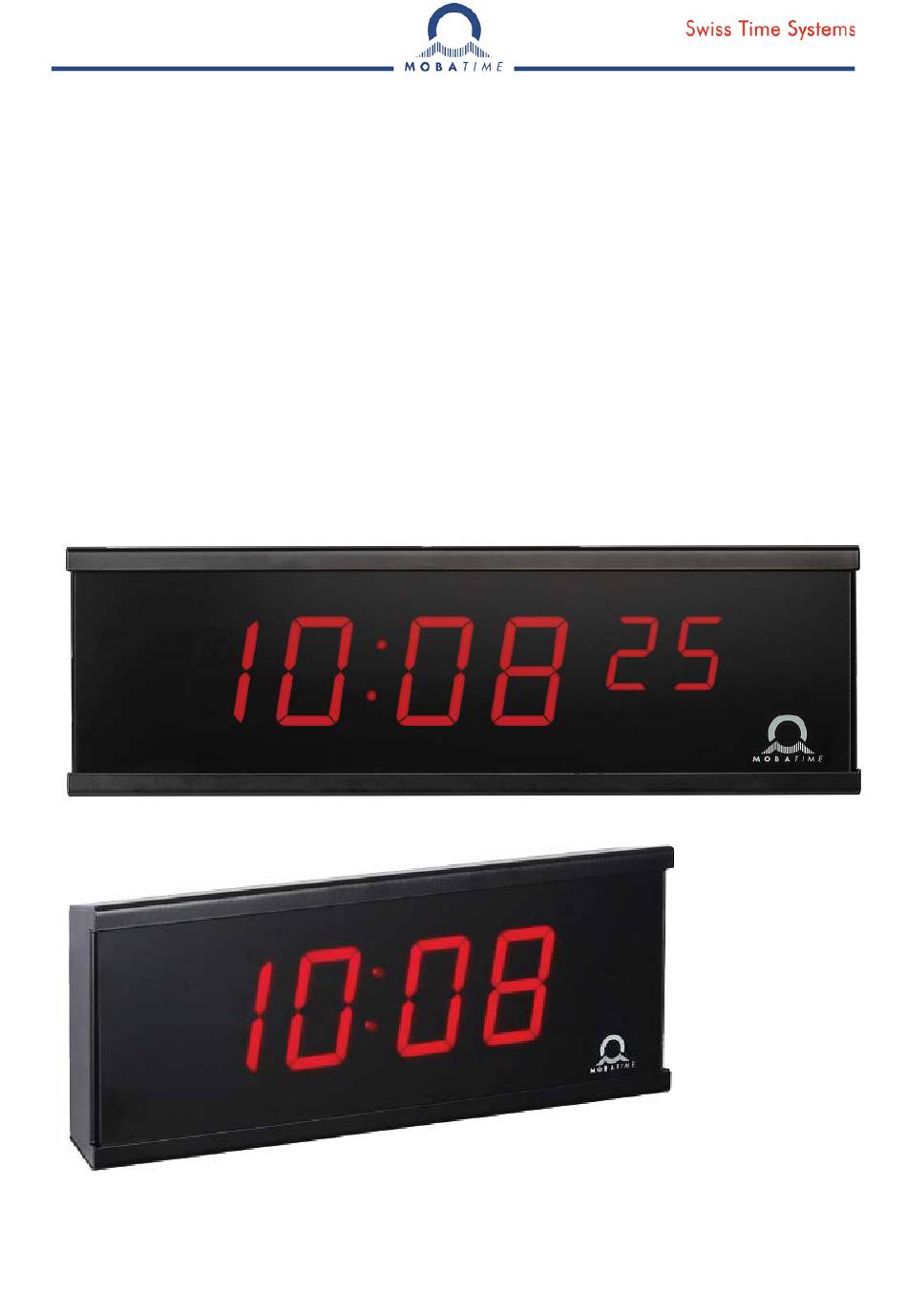

- Page 1 USER MANUAL Economy LED digital clock ECO-M-DC series © MOBATIME BE-801151.05...
- Page 2 It is prohibited to reproduce, to store in a computer system or to transfer this publication or part of it in any way. The copyright remains with all the rights with BÜRK MOBATIME GmbH, D-78026 VS- Schwenningen and MOSER-BAER AG – CH 3454 Sumiswald / SWITZERLAND.
-
Page 3: Table Of Contents
Basic setting – control according to source of synchronization ............. 16 Calculation using MOBALine time zones ....................16 Calculation using Time-zone server MOBATIME .................. 16 Calculation using time zone entries preconfigured by MOBA-NMS software ........16 Calculation according to internal time zone table .................. 17 Control and configuration of the clock using pushbuttons .............. -
Page 4: Description
Description The ECO-M-DC series • elegant and very slim digital clocks for displaying time and date • aluminum metal housing, powder coated • high protection degree IP54 as standard for all versions • 7-segment LED display of high luminance provide for excellent readability from various angles of view •... - Page 5 • private options of DHCP string for automatic configuration of all clock parameters when connected to net-work • configuration and monitoring using MOBA-NMS software or SNMP • firmware update remotely through the network using the TFTP protocol • IPv6 ready © MOBATIME 5 / 32 801151.05...
-
Page 6: Assembly
RJ45 jack to the Ethernet cable respectively. • Insert the BATT jumper in order to enable the RTC backup (doesn’t apply to clocks with supercapacitor option). • Mount the plexiglass and bottom cover. 2.2 Assembly diagram © MOBATIME 6 / 32 801151.05... -
Page 7: Double-Sided Clock
• Insert the BATT jumper in order to enable the RTC backup (doesn’t apply to clocks with supercapacitor option). • Connect the cable from Slave clock to the Master clock. • Mount the plexiglass and bottom cover. 2.4 Assembly diagram © MOBATIME 7 / 32 801151.05... -
Page 8: Dimensions
2.5 Dimensions 2.5.1 Single-sided clock © MOBATIME 8 / 32 801151.05... -
Page 9: Double-Sided Clock
2.5.2 Double-sided clock © MOBATIME 9 / 32 801151.05... -
Page 10: Control Elements
PB1, PB2 control push buttons RESET RESET button BATT jumper backup battery connection ISPE jumper invoking the firmware programming mode STATE LED state indication POWER LED power indication © MOBATIME 10 / 32 801151.05... -
Page 11: Mbl, Mbldcf, Irig And Rs485 Clock Type Operation
After the connection of the digital clock to the line, time and date are adjusted automatically, following the receipt of valid time information. • Setting the tune takes place within at least 5 minutes. © MOBATIME 11 / 32 801151.05... -
Page 12: Slave Clock Controlled By Supervised Rs485
It is necessary to register the clock under the used address in DTS. • The time synchronization starts within a few tens of seconds after start-up. • Failure of slave clock function is signalized by an alarm in DTS. © MOBATIME 12 / 32 801151.05... -
Page 13: Ntp And Poe Clock Operation
[234] SNMP manager address [43] or [224] Additional options (refer to document BE-800793) The network administrator must configure the DHCP options accordingly. Assigned parameters can be checked in the submenu of items P8 to P10. © MOBATIME 13 / 32 801151.05... -
Page 14: Manual Setting Through Setup Menu
Hyperterminal note: The Hyperterminal application can be used as an alternative to telnet. It is necessary to activate the “Send line ends with line feeds” and “Echo typed characters locally” in the Properties -> Settings -> ASCII setup window. © MOBATIME 14 / 32 801151.05... -
Page 15: Snmp
65532 time zone client port number 65534 The menu item P7 must be set to value 1. See chapter 6.2.6 for setting the multicast group address in the item P11 submenu. © MOBATIME 15 / 32 801151.05... -
Page 16: Local Time Calculation
Display time and date according to chosen time zone server time zone, incl. daylight saving time This setting is suitable for NTP and PoE digital clocks controlled by MOBATIME NTP servers, which support the time zone server functionality. 5.4 Calculation using time zone entries preconfigured by MOBA-NMS software... -
Page 17: Calculation According To Internal Time Zone Table
Displayed time and date calculation is based on the internal time zone table or on the user–specific time zone parameters. This setting is useful also for the NTP synchronization, when no time zone server is available. © MOBATIME 17 / 32 801151.05... -
Page 18: Control And Configuration Of The Clock Using Pushbuttons
The entry into the parameter setup menu is done by the pushing of the PB2L button. The display shows the following: The item to be adjusted is now blinking The options for the parameter setup are shown in the clock menu table. © MOBATIME 18 / 32 801151.05... -
Page 19: Submenu For Setting The User-Specific Time Zone
1-20, 0 (off) – for MBL or MBLDCF variant MOBALine or Time-zone server 1-15, 0 (off) – for NTP or PoE variant MOBATIME or clock address for 0-31, L (listen only) – for RS485 variant supervised RS485 Time zone for... - Page 20 October 10 at 3 o’clock in the example described above. Save the setting and return to item dt: by pushing PB1L. Another push of the PB1L button leads back to the clock menu item P6. © MOBATIME 20 / 32 801151.05...
-
Page 21: Submenu For Network Services Configuration
Choose the value 2 or 3 in the item P7 (network work mode selection) in the clock menu, then enter the submenu by pushing the PB1L pushbutton for configuring the network services (Multicast support in unicast work mode, SNMP service, Telnet service). The item to be set is blinking. © MOBATIME 21 / 32 801151.05... -
Page 22: Manual Setting Of The Ip Address Of The Clock
IP address. The item to be set is blinking. By pushing PB2S, the adjusted digit value is increased in steps of 1; by pushing the PB2L button, the value will be continuously increased. © MOBATIME 22 / 32 801151.05... -
Page 23: Submenu For Setting The Multicast Group Address
IP address is stored to the definition of the first NTP server, the other NTP server addresses are cleared including those defined by the NTP server domain names. © MOBATIME 23 / 32 801151.05... -
Page 24: Parameter Reset
• Keep pushing both buttons on the clock frame simultaneously until the display shows C0:00 • Use the PB2 button to set the value behind the colon to 04 • Keep pushing both buttons simultaneously until the display shows FAC1 and the clock resets © MOBATIME 24 / 32 801151.05... -
Page 25: Update Firmware Of Ntp And Poe Version Using Tftpd32 Tool
• after successfully entering the password, check if the indicated firmware version is correct, otherwise it is necessary to repeat the whole procedure • enter the exit command to close the telnet connection, close the tftpd32 window © MOBATIME 25 / 32 801151.05... -
Page 26: Time Zone Table
Sun. Apr. (03:00) Northern Territory: Darwin +9.5 Brisbane, Guam, Port Moresby, Magadan, Vladivostok Sydney, Canberra, Sun. Oct. (02.00) Sun. Apr. (03:00) Melbourne, Tasmania: Hobart UTC (GMT) UTC (GMT) Honiara (Solomon Is.), Noumea (New Caledonia), © MOBATIME 26 / 32 801151.05... - Page 27 Time change from Standard time (Winter time) to Summer time DST → Standard: Time change from Summer time to Standard time (Winter time) Example: last Sun. Mar. (02:00) Switch over on the penultimate Sunday in March at 02.00 hours local time. © MOBATIME 27 / 32 801151.05...
-
Page 28: Technical Data
. PoE/PoEclass version cannot be combined with models double sided ECO-M-DC.100x.6 with green, pure green, blue and white display colour 2. Clocks are delivered with disconnected backup battery CR2032 for unlimited battery shelf life, battery must be connected during the installation © MOBATIME 28 / 32 801151.05... -
Page 29: Voltage Range And Electric Current Consumption Of The Lines
Electric current consumption MOBALine 5 – 30 VAC 6 – 34 uA Active DCF 77 +- 12 – 30 V 10 – 18 mA IRIG B 20 mVpp – 2 Vpp 20 uA – 2 mA © MOBATIME 29 / 32 801151.05... -
Page 30: Accessories And Maintenance
4 pcs • interconnecting cable for second side 1 pc • Allen key for fastening the console 1 pc 10.3 Cleaning Clean only the clock surface. Use soft rags and antistatic detergents. © MOBATIME 30 / 32 801151.05... - Page 31 © MOBATIME 31 / 32 801151.05...
- Page 32 19 ch. du Champ-des-Filles, CH-1228 Plan-les-Ouates Tel. +41 34 432 46 46 / Fax +41 34 432 46 99 Tel. +41 22 884 96 11 / Fax + 41 22 884 96 90 moserbaer@mobatime.com / www.mobatime.com export@mobatime.com / www.mobatime.com SALES SWITZERLAND...
