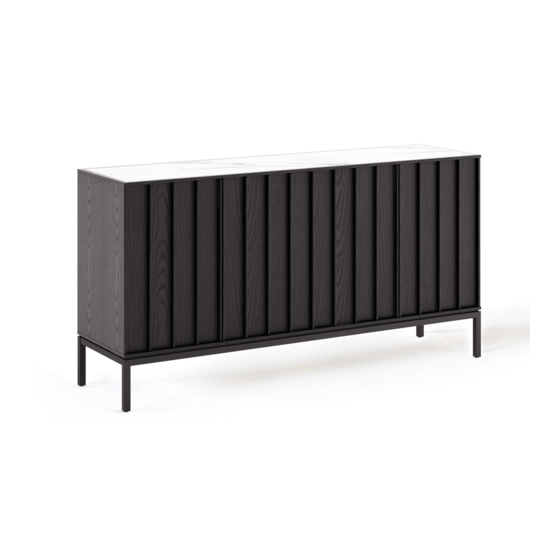

Placement and Maintenance
Your Cosmo Console is designed for indoor use on level floors.
Clean wood, metal, and porcelain surfaces with a damp cloth.
Cosmo is engineered for easy assembly. Carefully follow this
procedure to prevent any damage. Do not use power tools for
assembly of this product.
Step 1

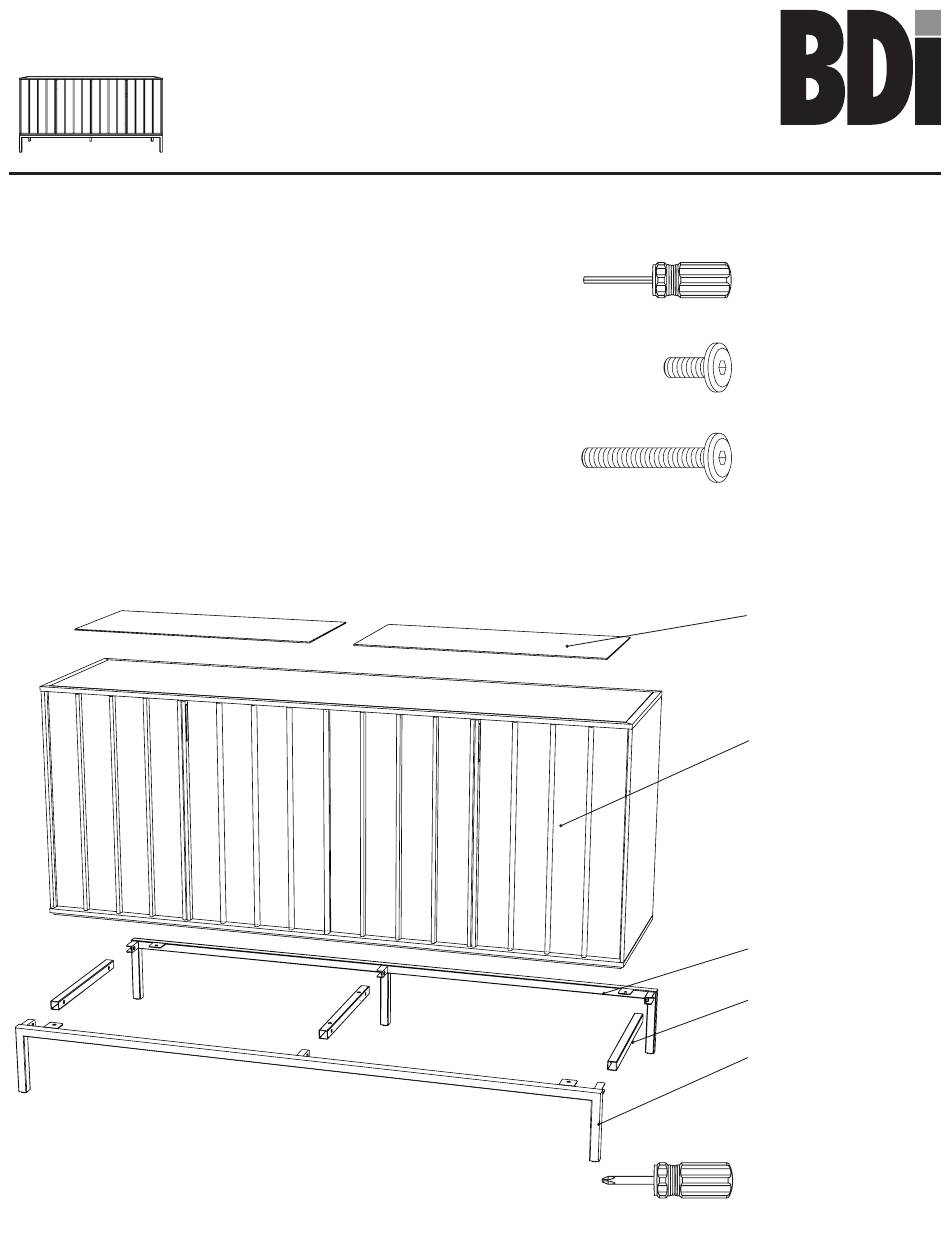

Unpack and identify the parts listed below. The assembly workspace
should be a non-marring surface such as carpet. For missing
hardware pieces, contact BDI Customer Service at:
customerservice@bdiusa.com.
For all other concerns, please contact your BDI retailer.
Designed by Matthew Weatherly.
These distinctive product configurations are protected by US and international patents, trade dress,
and/or copyright laws. Cosmo & BDI are trademarks of Becker Designed, Inc. All rights reserved.
©2019, BDI Made in China. 07.15.2019
5729
™
bdiusa.com
customerservice@bdiusa.com
Tool Provided:
T1 Hex Driver x 1
H1 M6 x 12mm
Screw x 10
H2 M6 x 35mm
Screw x 2
C5 Drawer liner x 2
A1 Cabinet x 1
C1 Back Base Frame x 1
C3 Connector Tube x 3
C2 Front Base Frame x 1
Tool Required:
Phillips Driver x 1
Advertisement
Related Manuals for BDI COSMO CONSOLE 5729
Summary of Contents for BDI COSMO CONSOLE 5729
- Page 1 Designed by Matthew Weatherly. Phillips Driver x 1 These distinctive product configurations are protected by US and international patents, trade dress, and/or copyright laws. Cosmo & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2019, BDI Made in China. 07.15.2019...
- Page 2 Step 2 - Base Assembly Position the front and back base frames C1 and C2 as shown. Position the connector tubes C3 as shown (no holes should be visible on the outside ends). Slide the metal tabs into the ends of the connector tubes.
- Page 3 Step 4 Drawer liner Installation Place one drawer liner C5 into each drawer. Step 5 Cabinet Leveling Check to make sure your Cosmo Console is level. Levelers are located underneath each leg and can be dialed up or down to level the unit if necessary (see below). Step 6 Shelf Positioning The shelves may be positioned at any of the available locations corresponding with threaded inserts inside the cabinet by moving the shelf pins.
- Page 4 Fine tuning your new BDI Cosmo Console These steps are to be followed after you have unpacked and completed the simple assembly instructions for your Cosmo Console. Due to jostling in freight or perhaps an uneven floor, the doors on your Cosmo console may not appear to be in perfect alignment.
- Page 5 Porcelain Top Removal Your Cosmo Console features a durable, heat resistant porcelain top. The top may be cleaned with mild soapy water on a damp cloth. If liquid spills into the seam, the porcelain top may be removed for cleaning purposes, or may be replaced in case of damage.
- Page 6 Porcelain Top Removal (cont.) 4) locate the 4 metal plates that connect the porcelain to the cabinet. 5) Use Hex driver T1 to remove all screws holding the metal plates. 6) Once all four metal plates are removed, the porcelain top may be lifted out by pushing up from below as shown (arrow #2).
- Page 7 Drawer Adjustment (if needed) The 2 drawers on your Cosmo Console are adjustable as much as 2mm up, down, left, right, back or for- ward. If the drawers are out of alignment, follow the steps below: Backward Forward Removing this screw allows 1) Rotating the black wheel towards the inside of the drawer to be adjusted (or the drawer moves the drawer backward, deeper...
