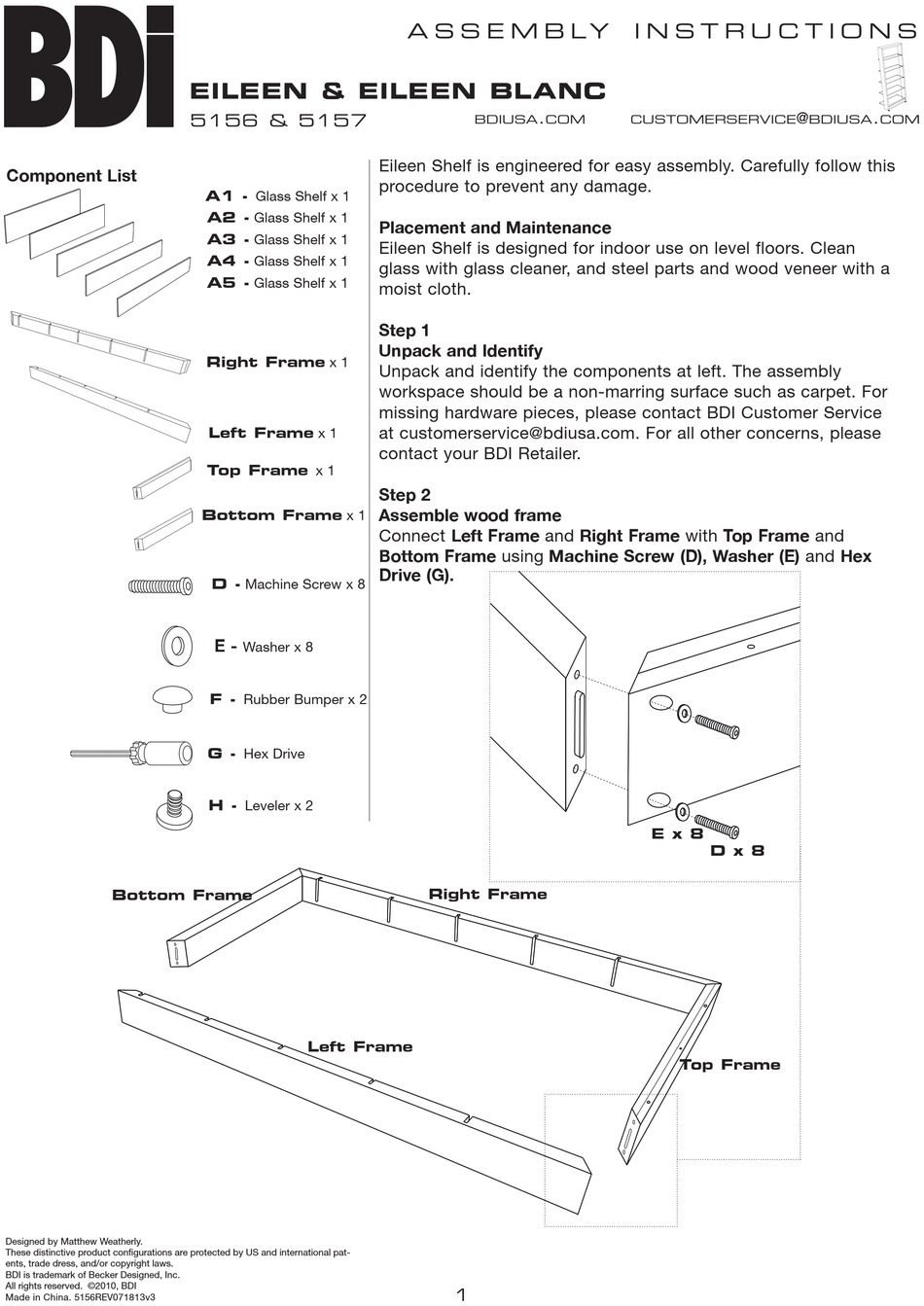

Component List
Bottom Frame
Designed by Matthew Weatherly.
These distinctive product configurations are protected by US and international pat-
ents, trade dress, and/or copyright laws.
BDI is trademark of Becker Designed, Inc.
All rights reserved. ©2010, BDI
Made in China. 5156REV071813v3
EILEEN & EILEEN BLANC
5156 & 5157
A1 - Glass Shelf x 1
A2 - Glass Shelf x 1
A3 - Glass Shelf x 1
A4 - Glass Shelf x 1
A5 - Glass Shelf x 1
Right Frame x 1
Left Frame x 1
Top Frame x 1
Bottom Frame x 1
D - Machine Screw x 8
E -
Washer x 8
F - Rubber Bumper x 2
G - Hex Drive
H - Leveler x 2
Left Frame
a s s e m b l y
.
bdiusa
com

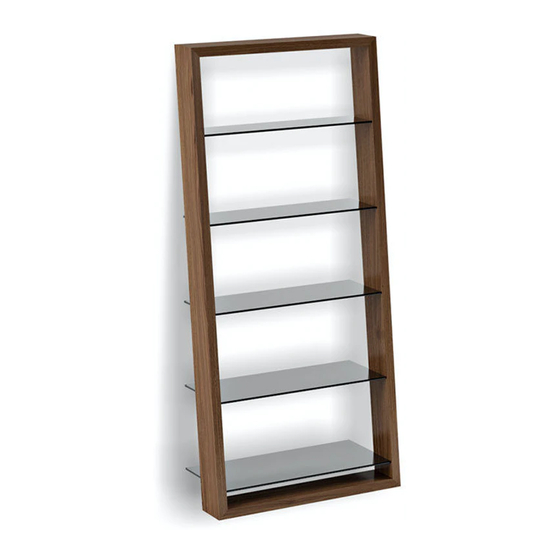

Eileen Shelf is engineered for easy assembly. Carefully follow this
procedure to prevent any damage.
Placement and Maintenance
Eileen Shelf is designed for indoor use on level floors. Clean
glass with glass cleaner, and steel parts and wood veneer with a
moist cloth.
Step 1
Unpack and Identify
Unpack and identify the components at left. The assembly
workspace should be a non-marring surface such as carpet. For
missing hardware pieces, please contact BDI Customer Service
at customerservice@bdiusa.com. For all other concerns, please
contact your BDI Retailer.
Step 2
Assemble wood frame
Connect Left Frame and Right Frame with Top Frame and
Bottom Frame using Machine Screw (D), Washer (E) and Hex
Drive (G).
Right Frame
1
i n s t r u c t i o n s
@
customerservice
E x 8
D x 8
Top Frame
.
bdiusa
com
Advertisement
Table of Contents
Related Manuals for BDI EILEEN 5156
Summary of Contents for BDI EILEEN 5156
- Page 1 Right Frame x 1 Unpack and identify the components at left. The assembly workspace should be a non-marring surface such as carpet. For missing hardware pieces, please contact BDI Customer Service at customerservice@bdiusa.com. For all other concerns, please Left Frame x 1 contact your BDI Retailer.
- Page 2 Step 3 Install Levelers and Rubber Bumper Inserts Install Levelers (H) and Rubber Bumper Inserts (F) as shown below. H x 2 F x 2 Step 4 Install Glass Shelves Install glass shelves to all slot locations on left frame and right frame.
- Page 3 Step 6 Once step 4 and 5 have been completed, lift assembled Eileen against the wall. 1/8” Side Elevation The rear edge of all shelves (except bottom shelf) should be approximately 1/8" from the wall. 5/8" Screw Step 6 - Install Tipping Restraint Kit. Approx.
