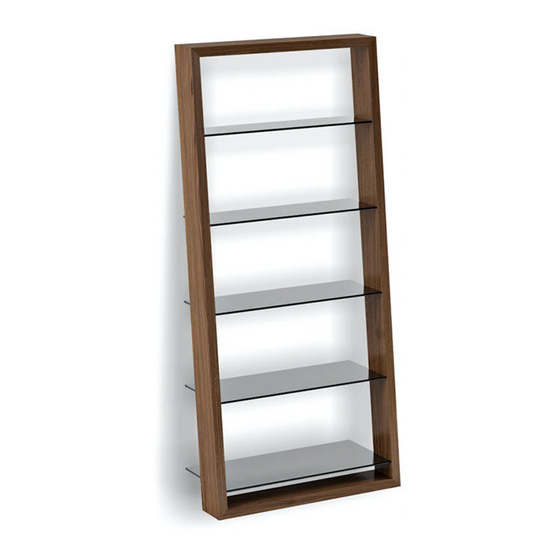

BDI Eileen 5156 Assembly Instructions

BDI Eileen 5156 Assembly Instructions

Advertisement

Quick Links

Component List
Bottom Frame
Designed by Matthew Weatherly.
These distinctive product configurations are protected by US and international
patents, trade dress, and/or copyright laws.
BDI is trademark of Becker Designed, Inc.
All rights reserved. ©2010, BDI
Made in China. 5156REV03082010v2
E
S
ilEEn
hElf
5156

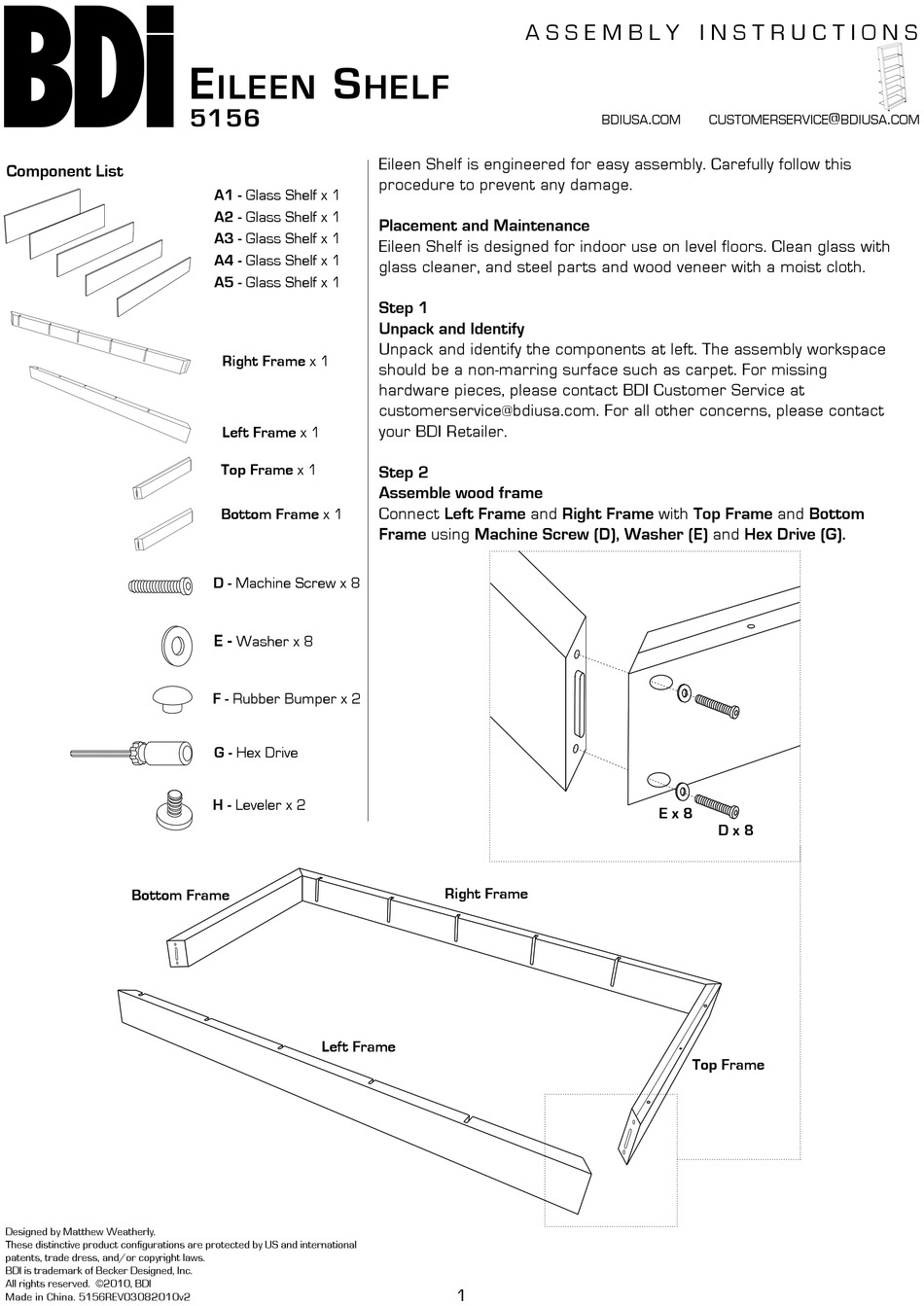

A1 - Glass Shelf x 1
A2 - Glass Shelf x 1
A3 - Glass Shelf x 1
A4 - Glass Shelf x 1
A5 - Glass Shelf x 1
Right Frame x 1
Left Frame x 1
Top Frame x 1
Bottom Frame x 1
D - Machine Screw x 8
E -
Washer x 8
F - Rubber Bumper x 2
G - Hex Drive
H - Leveler x 2
Left Frame
a s s e m b l y i n s t r u c t i o n s
Eileen Shelf is engineered for easy assembly. Carefully follow this
procedure to prevent any damage.
Placement and Maintenance
Eileen Shelf is designed for indoor use on level floors. Clean glass with
glass cleaner, and steel parts and wood veneer with a moist cloth.
Step 1
Unpack and Identify
Unpack and identify the components at left. The assembly workspace
should be a non-marring surface such as carpet. For missing
hardware pieces, please contact BDI Customer Service at
customerservice@bdiusa.com. For all other concerns, please contact
your BDI Retailer.
Step 2
Assemble wood frame
Connect Left Frame and Right Frame with Top Frame and Bottom
Frame using Machine Screw (D), Washer (E) and Hex Drive (G).
Right Frame
1
.
bdiusa
com
customerservice
E x 8
D x 8
Top Frame
@
.
bdiusa
com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Eileen 5156 and is the answer not in the manual?

Questions and answers

Summary of Contents for BDI Eileen 5156

  • Page 1 Unpack and identify the components at left. The assembly workspace Right Frame x 1 should be a non-marring surface such as carpet. For missing hardware pieces, please contact BDI Customer Service at customerservice@bdiusa.com. For all other concerns, please contact your BDI Retailer.
  • Page 2 Step 3 Install Levelers and Rubber Bumper Inserts Install Levelers (H) and Rubber Bumper Inserts (F) as shown below. H x 2 F x 2 Step 4 Install Glass Shelves Install glass shelves to all slot locations on left frame and right frame. Step5 Secure Glass Shelves Once shelves have been installed, tighten the plastic threaded insert...
  • Page 3 Step 6 Once step 4 and 5 have been completed, lift assembled Eileen against the wall. 1/8” Side Elevation The rear edge of all shelves (except bottom shelf) should be approximately 1/8” from the wall. 5/8" Screw Approx. 2” Step 6 - Install Tipping Restraint Kit. On the rear side of the top frame, there is a pre-drilled hole for installing the HH510 Furniture Tipping Restraint Kit (included).
