BDI SEQUEL 6003 Assembly Instructions Manual

BDI SEQUEL 6003 Assembly Instructions Manual

Compact desk

Advertisement

Quick Links

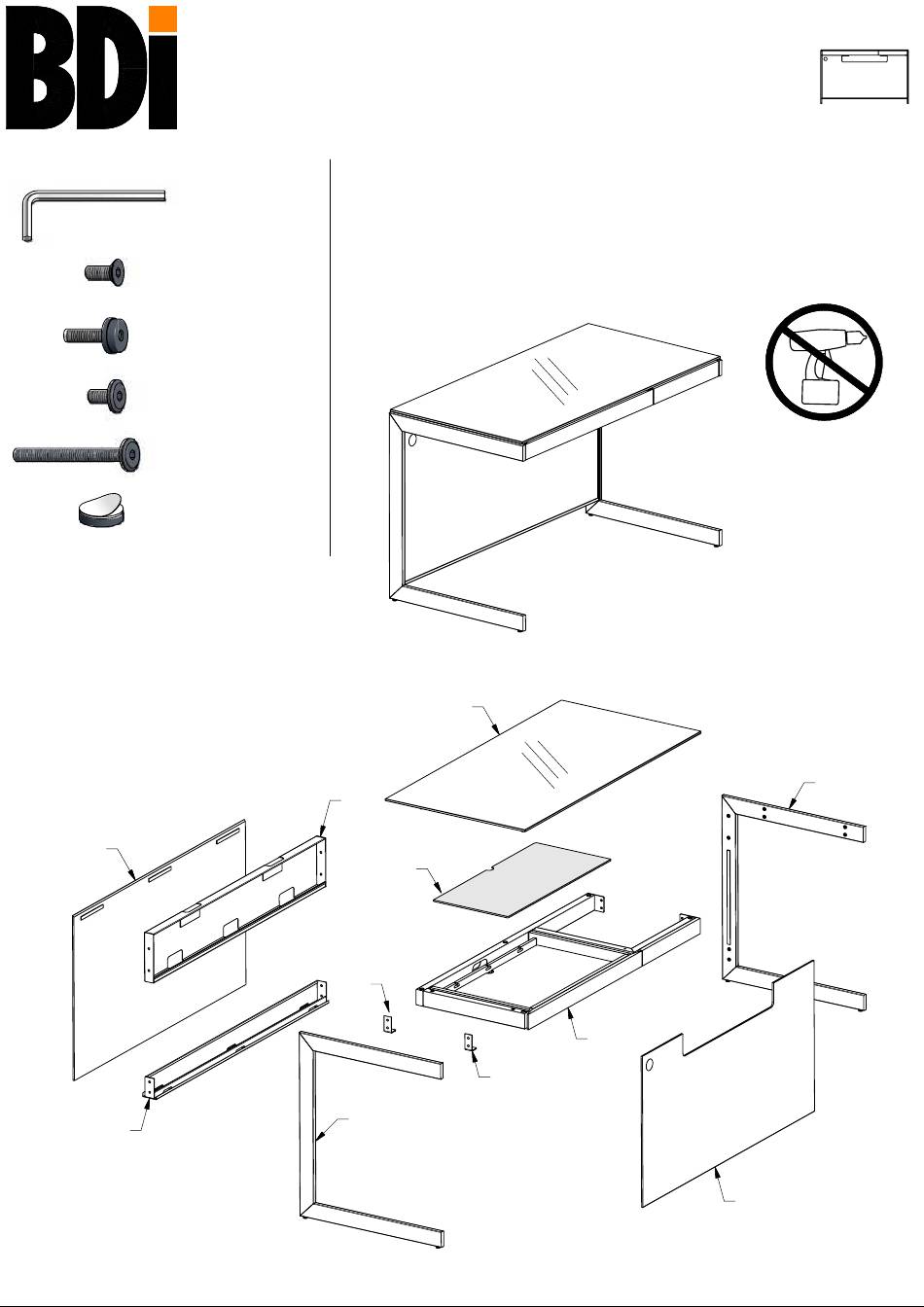

Component List

A - 4mm Hex Wrench
B - 1/4-20 x 12 mm
Flat Head
Machine Screw x 6
C - Leveler Glide x 4
D - 1/4-20 x 12 mm
Machine Screw x 12
E - 1/4-20 x 61 mm
Machine Screw x 5
F - Adhesive Magnet x 4
G - Leg Brackets x 2
H - Left Leg x 1
-
I
Right Leg x 1
J - Drawer Assembly x 1
K - Upper Horizontal Beam x 1
L - Lower Horizontal Beam x 1
M - Glass Top x 1
N - Front Kick Panel x 1
O - Back Panel x 1
(Sequel 6008 sold seperately)
P - Drawer Liner x 1
O
L
Designed by Matthew Weatherly
These distinctive product configurations are protected by US and international
patents, trade dress, and/or copyright laws.
BDI and 'Sequel' are trademarks of Becker Designed, Inc.
All Rights reserved. © 2015 BDI
Made in Taiwan. 6003 Compact Desk Revision: 081915
SEQUEL
6003 Compact Desk
Sequel™ is engineered for easy assembly. Carefully follow this procedure to
prevent any damage.

Placement and Maintenance

Sequel™ Home Office Furniture is designed for indoor use on level floors. Clean
glass with glass cleaner, and steel parts and wood veneer with a moist cloth.
CAUTION: Do not use power tools for assembly of this product.
K
G
H
BDIUSA.COM
M
P
G
1
ASSEMBLY INSTRUCTIONS
CUSTOMERSERVICE@BDIUSA.COM
J
N
I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEQUEL 6003 and is the answer not in the manual?

Questions and answers

Summary of Contents for BDI SEQUEL 6003

  • Page 1 Designed by Matthew Weatherly These distinctive product configurations are protected by US and international patents, trade dress, and/or copyright laws. BDI and 'Sequel' are trademarks of Becker Designed, Inc. All Rights reserved. © 2015 BDI Made in Taiwan. 6003 Compact Desk Revision: 081915...
  • Page 2 Choose Drawer Position - Left or Right Open Drawer fully and Sequel 6003 Compact Desk features a Left or Right Drawer position. press levers, 1 up and For Left Drawer Position, install Leg Brackets (G) onto Left Leg (H) .
  • Page 3 Leveler Glides (C) Step 4 Attach Legs With Drawer Assembly (J) upside down, Attach Leg with Leg Brackets (G) to Drawer Assembly (J) using Screws (B) and tighten with Hex Wrench (A) . Attach Leg without Leg Brackets to Drawer Assembly (J) using Screws (D) and tighten with Hex Wrench (A).
  • Page 4 Step 6 Attach Lower Horizontal Beam Attach Lower Horizontal Beam (L) to inside of Left and Right Leg using Screws (D) and tighten with Hex Wrench (A) . Turn unit over. Short side of Lower Horizontal Beam (L) faces front of Desk Recommended 2-person Step Step 7...
  • Page 5 Adhesive Magnet (F) Step 8 (optional) Attach Magnets to AC power strip/surge protector Remove Adhesive Magnets (F) from the Upper Horizontal Beam (K). Peel film from side of the Adhesive Magnets (F) and attach to clean, dry back side of AC power strip (not included).
  • Page 6 Step 10 Install Front Kick Panel Place Desk in desired location. Once all of the electrical wires are routed, install Front Kick Panel (N) as shown. Insert bottom edge of Front Kick Panel (N) into Lower Horizontal Beam (L). Tilt Front Kick Panel (N) back until magnets hold panel in place.
