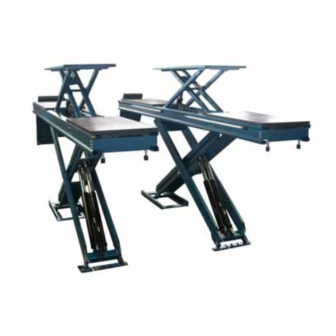

UNI-LIFT 3500 NT ND
UNI-LIFT 3200 NT Plus ND
Automotive-lift date: 12/2009
Manual date: 10.12.2009
Operating instruction and Documentation
Serial-number: ......................................
Otto Nußbaum GmbH & Co.KG//Korker Straße 24//D-77694 Kehl-Bodersweier
E-mail: info@nussbaum-lifts.de//http://www.nussbaum-lifts.de
retailer/ phone
Tel: +49(0)7853/8990 Fax: +49(0)7853/8787
