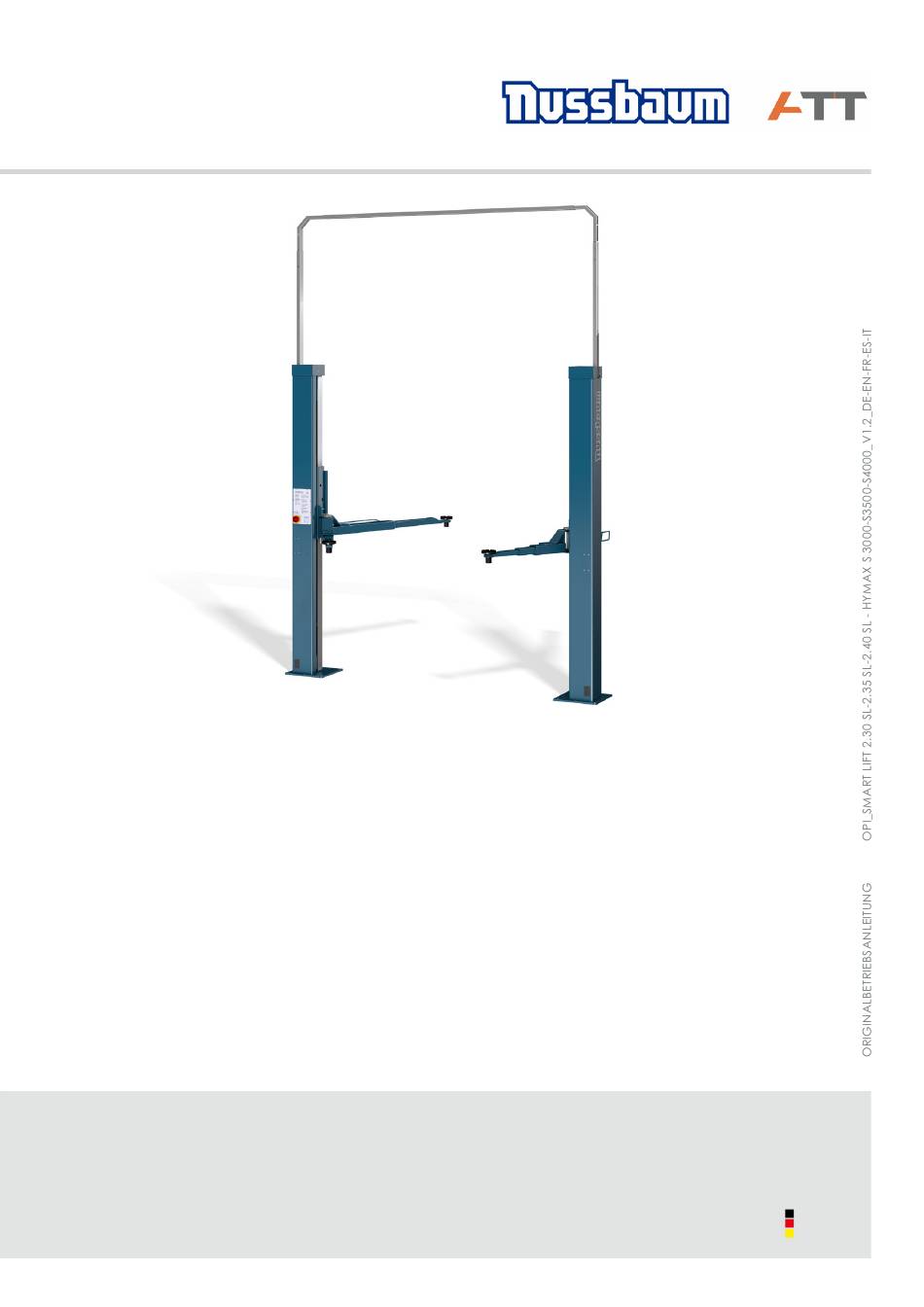

Betriebsanleitung | Prüfbuch
mit Ersatzteilliste
Operating manual | Inspection book
including spare parts list
Manuel D'exploitation | Carnet de contrôle
avec liste des pièces détachées
Instrucciones de servicio | Libro de inspección
con lista de piezas de recambio
Manuale operativo | Registro di controllo
con lista pezzi di ricambio
SMART LIFT 2.30 SL-2.35 SL-2.40 SL
Serien Nr. / Serial No. / Nº d. serie:
HYMAX S 3000-S3500-S4000
Made
in
Germany

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATT HYMAX S 3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Nussbaum ATT HYMAX S 3000

Summary of Contents for Nussbaum ATT HYMAX S 3000

  • Page 1 Betriebsanleitung | Prüfbuch mit Ersatzteilliste Operating manual | Inspection book including spare parts list Manuel d’exploitation | Carnet de contrôle avec liste des pièces détachées Instrucciones de servicio | Libro de inspección con lista de piezas de recambio Manuale operativo | Registro di controllo con lista pezzi di ricambio SMART LIFT 2.30 SL-2.35 SL-2.40 SL HYMAX S 3000-S3500-S4000...
  • Page 2 DEUTSCH Verhalten im Störungsfall .......38 Einleitung ................7 AufstelIungsprotokolI ............8 Auffahren auf ein Hindernis ........39 Übergabeprotokoll ............. 9 Notablass ..............39 Ansprechen des Sicherheitsmechanismus ..39 Allgemeine Information .........10 Manueller Ausgleich der Hubschlitten ....39 Aufstellung und Prüfung der Anlage ....10 Nachjustage des „Oben- und Unten-Aus“...
  • Page 3 Checking the stability of the lift ......117 Changing the assembly location ....... 120 Selection the anchor ..........121 Assembly and commissioning ....117 Safety inspection ..........127 Set up guidelines ........... 117 Set up and anchoring the lift....... 117 9.1 Assembly instructions capture bar fixation ..127 Lifting arm assembly ..........
  • Page 4 DEUTSCH Originalbetriebsanleitung Einleitung Organisatorische Maßnahmen Nußbaum Produkte sind ein Ergebnis langjähriger • Die Bedienungsanleitung ist ständig am Einsatzort Erfahrung. Der hohe Qualitätsanspruch und das der Anlage griffbereit aufzubewahren. überlegene Konzept garantieren Ihnen Zuverlässig- • Ergänzend zur Betriebsanleitung sind allgemein- keit, eine lange Lebensdauer und den wirtschaftli- gültige gesetzliche und sonstige verbindliche Re- chen Betrieb.
  • Page 5 Introduction awareness of hazards and safe work in compli- ance with the operating manual! Nussbaum products are a result of many years of • Use personal protective equipment as needed or experience. A high quality standard and superior required by regulations.
  • Page 6 Set up protocol After successful set up, complete this form fully, sign it, make a copy and send the original to the man- ufacturer within a week. The copy remains in the inspection book. Otto Nußbaum GmbH & Co.KG Korker Straße 24 D-77694 Kehl-Bodersweier The system with serial number _________________________ was set up on (date) __________________________ at (company name) _________________________________ in (town, city) _________________________________...
  • Page 7 Transfer protocol The system __________________________________________ with serial number ___________________________________ was set up on (date) __________________________ at (company name) _________________________________ in (town, city) _________________________________ checked for function and safety and put into operation. The following listed people (operators) were trained to handle the lift after it was set up by a trained assem- bler of the manufacturer or a contract partner (specialist).
  • Page 8 General information Technical documentation contains important infor- mation for safe operation and for retaining func- tional safety of the system. • To verify system set up, the set up protocol form is to be signed and sent to the manufacturer. •...
  • Page 9 System master sheet Manufacturer Otto Nußbaum GmbH & Co.KG Korker Straße 24 D-77694 Kehl-Bodersweier Purpose The lift is a lifting tool for raising vehicles with a total weight of (* see list) in normal workshop operation at a maximum load distribution of (2:3**) (1:3***) in or against the drive-in direction A single load from only one or two lifting arms may not happen. Set up of the standard lift in explosion and fire endangered workshops and humid spaces (e.g.
  • Page 10 Changes to the design / construction Inspections by a technical expert are required before recommissioning (date, type of change, technical expert signature). ______________________________________________________________________________________________________ ______________________________________________________________________________________________________ Name, address of technical expert _________________________________________________ _________________________________________________ Location, date Technical expert signature Changing the assembly location Inspections by a technical expert are required before recommissioning (date, type of change, specialist signature). ______________________________________________________________________________________________________ ______________________________________________________________________________________________________ Name, address of technical expert _________________________________________________ _________________________________________________ Location, date Signature of Technical Expert of Safety inspections OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 11 Declarations of conformity 2.5.1 SMART LIFT 2.30 SL OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 12 2.5.2 2.30 SL MM, 2.35 SL, 2.35 SL DT, 2.40 SL, 2.40 SL MM, 2.50 SL, 2.50 SL DG OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 13 2.5.3 HYMAX S 2000, S 3000, S 3000 DT, S 3000 MM, S 3200, S 3200 T, S 3200 DT, S 3200 MM, S 3500, S 4000, S 4000 MM, S 5000-1, S 5000-DG OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 14 2.5.4 EC type-examination certificate OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 15 Technical information Optional energy set Pneumatic connection> for compressed air 6-10 bars Technical data Socket: 220 V/50 Hz Total weight SMART LIFT 2.30 SL/ HYMAX S 3000 = 600 kg Important information! SMART LIFT 2.35 SL/ The lift is transferred without electrical connec- HYMAX S 3500 = 650 kg tion ready to the provided power supply, after a...
  • Page 16 Data sheets 3.3.1 Data sheets 2.30 SL OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 17 OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 18 OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 19 3.3.2 Data sheets 2.35 SL OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 20 OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 21 OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 22 3.3.3 Data sheets 2.40 SL OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 23 OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 24 Foundation plans OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 25 VDE0100g/7.75 para. 22 quest Nussbaum to make the changes. • Functional test and part test according to VDE560/11.87 These circuit diagrams are intellectual property.
  • Page 26 OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 27 OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 28 OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 29 OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 30 OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 31 Safety regulations Do not use magnets on the operating column or hang near the When working with lifts comply with legal accident operating elements as it could lead prevention regulations according to BGG 945: to errors in the electronics and to Comply with inspection of lifts;...
  • Page 32 Alternative lifting position Version with MINI-MAX lifting arms Figure 1: Position carrier plate below the fixture points approved by the vehicle manufacturer Figure 2: If required, place the carrier plate by pushing the lever at the fixture points Ensure that the ratchet is securely locked into the intended position.
  • Page 33 Lifting the vehicle • Depending on whether there is a height differ- • Lift the vehicle until the wheels are off the ground. ence between both sides (lift rails) to each oth- Actuate operating element v “Lift” (see image 4) er, a computer calculation will stop the more •...
  • Page 34 LED display on the operating unit The raising and lowering of the lift is monitored by a position measuring system. The individual functions are displayed additionally on the operating unit vi- sually with an LED display. In the following you will find individual descriptions: Operating unit on the control column Figure 6...
  • Page 35 OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 36 Behaviour in cases of error The lift is located in the Lift nut defective lowest position Safety Contact customer ser- devices (capture hooks) vice Defective operational readiness of the lift may be are activated due to a simple error. Check the system for the list- The lift is no longer in the ed sources of error.
  • Page 37 Moving onto an obstacle As the triggering of the safety mecha- nism is a result of a lift defect, custom- If the lifting rails or a lifting arm have been moved er services must be informed. onto an obstacle due to inattention of the oper- ator, only the motor is blocked for the lifting rail or lifting arm sitting on the obstacle.
  • Page 38 The maximum height from the upper edge of the base plate to the upper edge of the lift rails must not Figure 7: Version without CE stop exceed 695 mm. 3 potentiometer for Up Off 4 potentiometer for Down Off If improper settings are done on the potentiometer, this can lead to mal- functioning of the lift and even to dan- ger for life and limb and permanent...
  • Page 39 + BGR500 (Op- eration of work equipment) Value is placed on long lifetimes and safety in the development and production of Nussbaum prod- ucts. To guarantee the safety of the operator, prod- uct reliability, low running costs, keep the warranty...
  • Page 40 Maintenance plan Before beginning service, disconnect from power. The work area around the lift is to be secured against unauthorized use. Visual Spray Lubricate Clean with Clean Inspect inspection compressed air Time frame Type of Maintenance plan Pos. maintenance Model Model and information signs, labels, brief operating instruc- 365 x / 12 tions, safety stickers and warning information are to be...
  • Page 41 Time frame Type of Maintenance plan Pos. maintenance 1 x / 12 Check the lift spindle for wear (damage). Lightly oil the lubrication felt between the spindle centring and lift nut. Use a runny oil similar to SAE 15 W 40. Nut lubrica- tion is done with an oil can between the column and spindle cover panel (removed if needed).
  • Page 42 Time frame Type of Maintenance plan Pos. maintenance Spindle centring (run-on delay) Torque: Approx. 4 Nm Gap: Approx.1 mm Rear side: The half shells are attached. 1 mm Set 4 Nm Check the condition and function of spindle centring (run-on delay) , tighten if required. Ensure that the interior side of the half shells contact the spindle.
  • Page 43 Time frame Type of Maintenance plan Pos. maintenance Check the DU bearing of the spindle guide for wear. Slightly 1 x / 12 oil with a runny oil similar to SAE 15W40. Lifting arm booms, lifting arm bolts, carrier plate threaded 1 x / 12 bolts are to be checked for ease of running.
  • Page 44 Time frame Type of Maintenance plan Pos. maintenance MINI-MAX lifting arm 1. Blow out and spray bolts. Check the rollers for wear. 2. Check the locking screws (this is only screwed in lightly and is then glued (Loctite). Screws may not be com- pletely tightened otherwise 12 x / 12 the ease of running of the...
  • Page 45 Time frame Type of Maintenance plan Pos. maintenance Check the paint: • Check the powder coating and improve if required. Dam- age by external influences is to be treated immediately af- ter detection. If these points are not treated, infiltration of deposits of all kinds can cause wide-ranging and perma- nent damage.
  • Page 46 • Make sure that there is no residue of the cleaner • Before setting the v-belt, the measurement de- on the lift. vice is to be placed on a flat solid surface and • Dry the lift with a cloth and spray it with a spray pushed downwards until the stylus is laying flat on wax or oil.
  • Page 47 Set up and anchoring the lift On-site provision of suitable auxiliary materials (e.g. forklifts, crane, etc.) are to be made avail- able for unloading the lift and for assembly. Before setting up the lift, the operating company must ensure or make a sufficient foundation. For this, a normal reinforced concrete floor with a val- ue of a min.
  • Page 48 23) into the riser and cross-pipe of the lift and feed Figure 22: Anchoring together into the corresponding plug. 1: Column Pay particular attention for safe contacting of the 2: Base plate plug connections. 3: Safety anchor • When merging the cable connections at the head plate, ensure that the cable does not con- tact rotating parts.
  • Page 49 Mounting the safety bar on the shorter • Feed the cable through the empty pipes in the lifting arms foundation before the columns are set up. Then move the columns to the installation location. Place the cables through the holes in the base- Assembling the safety bar is done on the left and plate and guide them through the column to the right short lifting arm (see the following images).
  • Page 50 company then a specialist must be tasked with the safety inspection. The specialist confirms seamless operation of the lift on the set up protocol for single safety inspection and releases the lift for use. After commissioning please complete the as- sembly protocol and send to the manufacturer immediately.
  • Page 51 Selection the anchor 8.7.1 Selection the Liebig anchor without floor cover (screed, tiles) (valid 2.30 SL, 2.35 SL, 2.40 SL) Hole diameter 22 mm in the baseplate Liebig anchor Anchor type BM12-20/80/40 Hole depth Min. anchoring depth (mm) Concrete thickness (mm) Min. 160* Hole diameter (mm) Component thickness (mm) 0 –...
  • Page 52 8.7.2 Selection the Liebig anchor with floor cover (screed, tiles) (valid 2.30 SL, 2.35 SL, 2.40 SL) Hole diameter 22 mm in the baseplate Liebig anchor Anchor type BM12-20/80/65 BM12-20/80/100 BM12-20/80/140 Drill depth (mm) Min. anchoring depth (mm) Concrete thickness (mm) min. 160* min. 160* min. 160* Drill diameter (mm) Component thickness (mm) e + f 40 –...
  • Page 53 8.7.3 Selection the Liebig anchor without floor cover (screed, tiles) (valid 2.50 SL II, 2.50 SL DG II) Hole diameter 26 mm in the baseplate Liebig anchor Anchor type BM16-25/100/40 Drill depth (mm) Min. anchoring depth (mm) Concrete thickness (mm) min. 200* Drill diameter (mm) Drilled part thickness (mm) 0 –...
  • Page 54 8.7.4 Selection the Liebig anchor with floor cover (screed, tiles) Hole diameter 26 mm in the baseplate Liebig anchor Anchor type BM16-25/100/65 BM16-25/100/100 Drill depth (mm) Min. anchoring depth (mm) Concrete thickness (mm) min. 200* min. 200* Drill diameter (mm) Component thickness (mm) e + f 40 – 65 65 –...
  • Page 55 8.7.5 Fischer anchor Marking the anchoring depth subject to alterations! fischer anchor SMART LIFT/HYMAX S SMART LIFT/HYMAX S 2.30 SL/3000 2.50 SL/5000g 2.35 SL/3500 2.40 SL/4000 typ of dowel FH 15/50 B FH 18 x 100/100 B FH 24/100 B Order No. 970265 Order No. 972230 Order No. 970267 drilling depth (mm) min.anchorage depth (mm) thickness of concrete (mm) see current foundation-diagram drawing diameter of bore (mm)
  • Page 56 8.7.6 Hilti injection anchor Quality of concrete Normal armouring subject to alterations! Hilti injection anchor SMART LIFT/HYMAX S SMART LIFT/HYMAX S 2.30 SL/3000 2.50 SL/5000g 2.35 SL/3500 2.40 SL/4000 concrete floor without floor pavement (tiles) type of dowel HIT-V-5.8 M10x130 HIT-V-5.8 M12x150 HIT-V-5.8 M16x200 Art.Nr.387061 Art.Nr.956437 drilling depth (mm) min.anchorage depth (mm) component thickness (mm) min.120 min.138 min.180...
  • Page 57 Safety inspection Tools required The safety inspection is required to guarantee oper- ational safety of the lift. It is to be done: 1: Nail puller 1. before first commissioning after setting up the lift 2: Allen key 6 mm Use the “single safety inspection” form 3: Allen key 3 mm 2. After first commissioning, check regularly at least once per year.
  • Page 58 A) Preparation D) P lug in the fixing bracket Ensure there is no load on the lift. Fixing bracket B) Unscrew cover panels Allen key wrench 3 mm E) If required, move the latch bar into position with a nail puller Nail puller C) Move the carrier arm upwards, then disconnect the lift from mains power or lock the switch oder OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 59 F) Place the guide bar onto the spindle bearing G) Fasten the guide bar with M8 screws and push from below into the fixing bracket. Ensure that the guide bar and slot hole are fastened flush, the guide bar reaches slightly over the edge. Guide bar Allen key 6 mm Screw M8, Nut, Base plate H) Visual inspection Then do another safety inspection to ensure that nothing shifted during screw tightening.
  • Page 60 Single safety inspection before commissioning Copy, Complete and leave in the inspection book Serial number: _______________________________ Test step Defect Retest Remarks Missing □ □ □ Model plate .................._______________________________ □ □ □ Brief operating instructions on the column .....
  • Page 61 Regular safety inspection and maintenance Copy, Complete and leave in the inspection book Serial number: _______________________________ Test step Defect Retest Remarks Missing □ □ □ Model plate .................._______________________________ □ □ □ Brief operating instructions on the column .....
  • Page 62 Regular safety inspection and maintenance Copy, Complete and leave in the inspection book Serial number: _______________________________ Test step Defect Retest Remarks Missing □ □ □ Model plate .................._______________________________ □ □ □ Brief operating instructions on the column .....
  • Page 63 Regular safety inspection and maintenance Copy, Complete and leave in the inspection book Serial number: _______________________________ Test step Defect Retest Remarks Missing □ □ □ Model plate .................._______________________________ □ □ □ Brief operating instructions on the column .....
  • Page 64 Regular safety inspection and maintenance Copy, Complete and leave in the inspection book Serial number: _______________________________ Test step Defect Retest Remarks Missing □ □ □ Model plate .................._______________________________ □ □ □ Brief operating instructions on the column .....
  • Page 65 Regular safety inspection and maintenance Copy, Complete and leave in the inspection book Serial number: _______________________________ Test step Defect Retest Remarks Missing □ □ □ Model plate .................._______________________________ □ □ □ Brief operating instructions on the column .....
  • Page 66 Regular safety inspection and maintenance Copy, Complete and leave in the inspection book Serial number: _______________________________ Test step Defect Retest Remarks Missing □ □ □ Model plate .................._______________________________ □ □ □ Brief operating instructions on the column .....
  • Page 67 Regular safety inspection and maintenance Copy, Complete and leave in the inspection book Serial number: _______________________________ Test step Defect Retest Remarks Missing □ □ □ Model plate .................._______________________________ □ □ □ Brief operating instructions on the column .....
  • Page 68 Regular safety inspection and maintenance Copy, Complete and leave in the inspection book Serial number: _______________________________ Test step Defect Retest Remarks Missing □ □ □ Model plate .................._______________________________ □ □ □ Brief operating instructions on the column .....
  • Page 69 Regular safety inspection and maintenance Copy, Complete and leave in the inspection book Serial number: _______________________________ Test step Defect Retest Remarks Missing □ □ □ Model plate .................._______________________________ □ □ □ Brief operating instructions on the column .....
  • Page 70 Regular safety inspection and maintenance Copy, Complete and leave in the inspection book Serial number: _______________________________ Test step Defect Retest Remarks Missing □ □ □ Model plate .................._______________________________ □ □ □ Brief operating instructions on the column .....
  • Page 71 Exceptional safety inspection Copy, Complete and leave in the inspection book Serial number: _______________________________ Test step Defect Retest Remarks Missing □ □ □ Model plate .................._______________________________ □ □ □ Brief operating instructions on the column ........
  • Page 72 Ersatzteilliste Spare parts list Liste des pièces détachées Lista de piezas de recambio Lista pezzi di ricambio SMART LIFT 2.30 SL-2.35 SL-2.40 SL HYMAX S 3000-S3500-S4000 Made Made Germany Germany...
  • Page 73 OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 74 OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 75 OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 76 OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 77 OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 78 OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 79 Motor Komplett | Motor complete | Motor complete 2, 3, 4 BEZEICHNUNG 2.30 SL 2.32 SL 2.35 SL 2.40 SL 2.50 SL 2.50 SL II SCHWARZ 232SL01003ATB GRAU 232SL01003 232SL01003 JAPAN 990651 KOREA 990657 DESIGNATION 2.30 SL 2.32 SL 2.35 SL 2.40 SL 2.50 SL 2.50 SL II...
  • Page 80 Steuerung 2.30 SL, 2.32 SL, 2.35 SL, 2.40 SL | Control unit 2.30 SL, 2.32 SL, 2.35 SL, 2.40 SL 990842 SCHÜTZ 232SL03009 -RALXXXX STEUERUNG KOMPLETT, 994777 HAUPTSCHALTER MIT RAL FARBE BESTELLEN 990842 UP CONTACTOR 232SL03009 -RALXXXX CONTROL UNIT COMPLETE, 994777 MAIN SWITCH ORDER WITH RAL COLOUR...
  • Page 81 Tragarmsatz 230 SL DT. 230 HLNT DT Tragarm lang: 945 mm – 1495 mm Tragarm kurz: 480 mm – 870 mm 230SL08400_1 26.06.2018 232SL08410 MB-ARM KURZ 225SL08001 TRAGARM LANG KPL. 225SL08010 TRAGARM LANG GEG.KPL. 945-1493 MM 232SL08410 MB-ARM SHORT 225SL08001 LIFTING ARM LONG COMPLETE 225SL08010 LIFTING ARM LONG...
  • Page 82 Tragarmsatz 230SL, S230HLNT (Standard) Tragarm lang: 945 mm – 1495 mm Tragarm kurz: 590 mm – 900 mm 230SL28200_1 12.07.2018 225SL08038 TRAGARM KURZ KOMPL. 225SL08001 TRAGARM LANG KPL. 225SL08010 TRAGARM LANG GEG.KPL. 945-1493 MM 225SL08038 LIFTING ARM SHORT COMPLETE 225SL08001 LIFTING ARM LONG COMPLETE 225SL08010 LIFTING ARM LONG...
  • Page 83 Tragarmsatz Transporterarme 232SL Tragarm lang: 940 mm – 1493 mm Tragarm kurz: 580 mm – 1170 mm 232SL08200_1 12.07.2018 232SL08210 T4-ARM KURZ 232SL08010 TRAGARM LANG KOMPL. 232SL08001 TRAGARM LANG KOMPL. 232SL08210 T4-ARM SHORT 232SL08010 LIFTING ARM LONG COMPLETE 232SL08001 LIFTING ARM LONG COMPLETE OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 84 Tragarmsatz 230SPL MB/BMW Tragarm lang: 480 mm – 870 mm Tragarm kurz: 940 mm – 1495 mm 232SL08400_1 18.07.2018 232SL08410 MB-ARM KURZ 232SL08010 TRAGARM LANG KOMPL. 232SL08001 TRAGARM LANG KOMPL. 232SL08410 MB-ARM SHORT 232SL08010 LIFTING ARM LONG COMPLETE 232SL08001 LIFTING ARM LONG COMPLETE OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 85 MINIMAX links | MINIMAX left side Lfd. Name Klinkenschere komplett ratchet scissor complete Fußachse komplett axle complete Tellerachse komplett axle complete Aufnahmeteller Lifting pad Tragteller Klinke ratchet Lfd. Benennung Name Hubhebel rechts Lever right side Klinkenschere komplett 232SLF08802 Klinkenachse 232SLF08828-ET ratchet scissor complete ratchet axle Fußachse komplett...
  • Page 86 MINIMAX rechts | MINIMAX right side Lfd. Name Klinkenschere komplett ratchet scissor complete Fußachse komplett axle complete Tellerachse komplett axle complete Aufnahmeteller Lifting pads Tragteller Lfd. Benennung Name Klinke ratchet 232SLF08801 Klinkenschere komplett 232SLF08828-ET Hubhebel rechts ratchet scissor complete Lever right side Fußachse komplett 232SLF08869-ET Klinkenachse...
  • Page 87 Tragarmsatz kpl. 232SL28000_1 18.07.2018 232SL28031 TRAGARM MM KURZ BED. 232SL28001 TRAGARM MM LANG 232SL28032 TRAGARM MM KURZ GEG. BED. KOMPL. 232SL28002 TRAGARM MM LANG GEG. KOMPL. 232SL28031 LIFTING ARM MM SHORT 232SL28001 LIFTING ARM MM LONG MASTER SIDE COMPLETE MASTER SIDE 232SL28032 LIFTING ARM MM SHORT 232SL28002...
  • Page 88 Tragarmsatz Lamborghini 232SPL18300_1 22.02.2013 232SPL18301 LAMBORGHINI-ARM LONG L 232SPL18220 LAMBORGHINI-ARM SHORT 232SPL18302 LAMBORGHINI-ARM LONG R OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 89 Tragarme kompl. Tragarm lang: 890 mm – 1490 mm Tragarm kurz: 505 mm – 823 mm 235SLNT08000_2 18.07.2018 235SLNT08038 TRAGARM KURZ KPL. 235SLNT08010 TRAGARM LANG KOMPL. 235SLNT08001 TRAGARM LANG KOMPL. 235SLNT08038 LIFTING ARM SHORT COMPLETE 235SLNT08010 LIFTING ARM LONG COMPLETE 235SLNT08001 LIFTING ARM LONG COMPLETE OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 90 Tragarme BMW kompl. Tragarm lang: 505 mm – 823 mm Tragarm kurz: 945 mm – 1493 mm 235SLNT08100_1 18.07.2018 235SLNT08138 TRAGARM KURZ KPL. (BMW) 235SLNT08110 TRAGARM LANG KOMPL. (BMW) 235SLNT08101 TRAGARM LANG KOMPL. (BMW) 235SLNT08138 LIFTING ARM SHORT 235SLNT08110 LIFTING ARM LONG COMPLETE (BMW) COMPLETE (BMW) 235SLNT08101 LIFTING ARM LONG...
  • Page 91 Tragarme kompl. 235SLNT08300_1 01.07.2014 232SL08210 T4-ARM SHORT 235SLNT08010 TRAGARM LANG KOMPL. 235SLNT08001 TRAGARM LANG KOMPL. 232SL08210 T4-ARM SHORT 235SLNT08010 LIFTING ARM LONG COMPLETE 235SLNT08001 LIFTING ARM LONG COMPLETE OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 92 Tragarmsatz kpl. 240HLNT08000_2 18.07.2018 232NSTL28038 T4-ARM KURZ KPL. 240SPL08002 TRAGARM LANG GEG. KPL. 240SPL08001 TRAGARM LANG BED. KPL. 232NSTL28038 T4-ARM SHORT COMPLETE 240SPL08002 LIFTING ARM LONG 240SPL08001 LIFTING ARM LONG SLAVE SIDE COMPLETE MASTER SIDE COMPLETE OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 93 MB kpl. 240SL MB-Tragarmsatz Tragarm lang: 1130 mm – 1840 mm Tragarm kurz: 600 mm – 900 mm Unterschwenkhöhe: 95 mm 240SL08200_1 18.07.2018 240SL08238 TRAGARM KURZ. KPL. 240SL08202 TRAGARM LANG GEG. KPL. 240SL08201 TRAGARM LANG BED. KPL. 240SL08238 LIFTING ARM SHORT COMPLETE 240SL08202 LIFTING ARM LONG 240SL08201...
  • Page 94 Abweisbügel an kurzen Tragarmen | bar on the shorter lifting arms Abweisbügel/bar ART.-NR. ART.-NR. 230 SL DT 230SL08515-SATZ 240SL STANDARD 240SPL08015-SATZ 230 SL STANDARD 230SL08015-SATZ 230 SL MM 230SL08515-SATZ 235 SL DT 230SL08015-SATZ 235SL MM 240SPL08015MM-SATZ 235 SL STANDARD 230SL08515-SATZ 240SL MM 240SPL08015MM-SATZ 240SL DG 240SPL08015-SATZ OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 95 Grundrahmen | base frame 2.28 SL 2.30 SL 2.30 SL MB 2.32 SL 2.35 SL/2.40 SL KOMPLETT KOMPLETT KOMPLETT KOMPLETT KOMPLETT 1 + 2 228SL11000 225SL51000 230SL51100 232SL11000 240SL11000 228SL11003 225SL51003 230SL51103 232SL11003 240SL11003 228SL11033 225ATL51033 230SL51133 232SL11009 240SL11033 Hilfsbügel | additional bow 2.30 SL 2.32 SL 2.35 SL/2.40 SL 2.30 SL MB 1 + 2 225SL31000 232SL10000 OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 96 Spindelführung | Spindle guiding 232SL62011 SPINDELFÜHRUNG KOMPLETT 232SL62011 SPINDLE GUIDING + SCHLAUCHSCHELLE UND FILZ + CLAMP AND FELT Gleichlaufpoti | Potentiometer 232SL03003 SL GLEICHLAUFPOTI KOMPLETT 232SL03003 SL POTENTIOMETER COMPLETE OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 97 Energiesetkomplett | Energy set complete ENERGIESET SCHWEIZ 225SL05091MB ENERGIESET 225SL05091CH BEDIENSEITE MIT BETRIEBSSTUNDENZÄHLER 225SL05092CH GEGENSEITE ENERGIESET (STANDARD) 225SL05092MB ENERGIESET 225SL05091 BEDIENSEITE 225SL05092 GEGENSEITE ENERGY SET SWITZERLAND 225SL05091MB ENERGY SET 225SL05091CH MASTER SIDE WITH ELAPSED TIME INDICATOR 225SL05092CH SLAVE SIDE ENERGY SET (STANDARD) 225SL05092MB ENERGY SET 225SL05091 MASTER SIDE...
  • Page 98 OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT...
  • Page 99 Dirección/teléfono del distribuidor: Indirizzo rivenditore/telefono: Otto Nußbaum GmbH & Co. KG • Korker Str. 24 • D-77694 Kehl-Bodersweier www.nussbaum-group.de • E-Mail: info@nussbaum-group.de Service Hotline Germany: 0800-5 288 911 Service Hotline International: +49 180-5 288 911 OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL - HYMAX S 3000-S3500-S4000_V1.2_DE-EN-FR-ES-IT_092019 - Artikelnummer: 975430...

This manual is also suitable for:

Att hymax s 3500Att hymax s 4000Smart lift 2.30 slSmart lift 2.35 slSmart lift 2.40 sl
