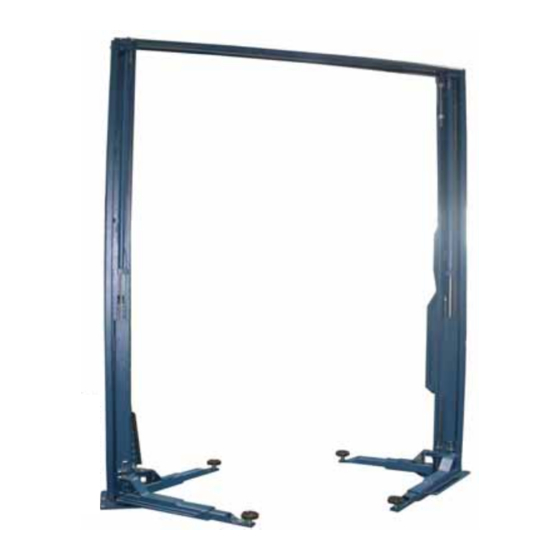

2.30 SPL
Automotive-Lift date: 12/2004
Manual date: 17.12.2004
Operating instructions and documentation
Serial-number:............................................
Retailer address / phone
Nußbaum Hebetechnik GmbH & Co.KG//Korker Straße 24//D-77694 Kehl-Bodersweier//
Tel: +49(0)7853/8990 Fax: +49 (0) 78 53 / 87 87//
E-mail: nussbaum.lifts@t-online.de//http://www.nussbaum-lifts.de
