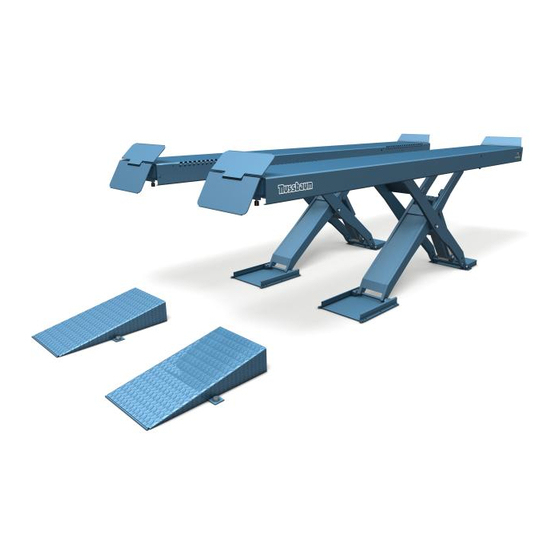

UNI-LIFT 2500
Automotive-Lift date: 04/2006
Manual Datum: 24.04.2006
Operating Instruction and Documentation
Serial-number: ........................................
Retailer/Phone
Nußbaum Hebetechnik GmbH & Co.KG//Korker Straße 24//D-77694 Kehl-Bodersweier//Tel: +49(0)7853/8990
Fax: +49(0)7853/8787//E-mail: info@nussbaum-lifts.de//http://www.nussbaum-lifts.de
