Refrigerator Zone Manual Component Activation Table; Freezer Zone Manual Component Activation Table - Sub-Zero Wolf BI Series Service Manual

Electronic Control

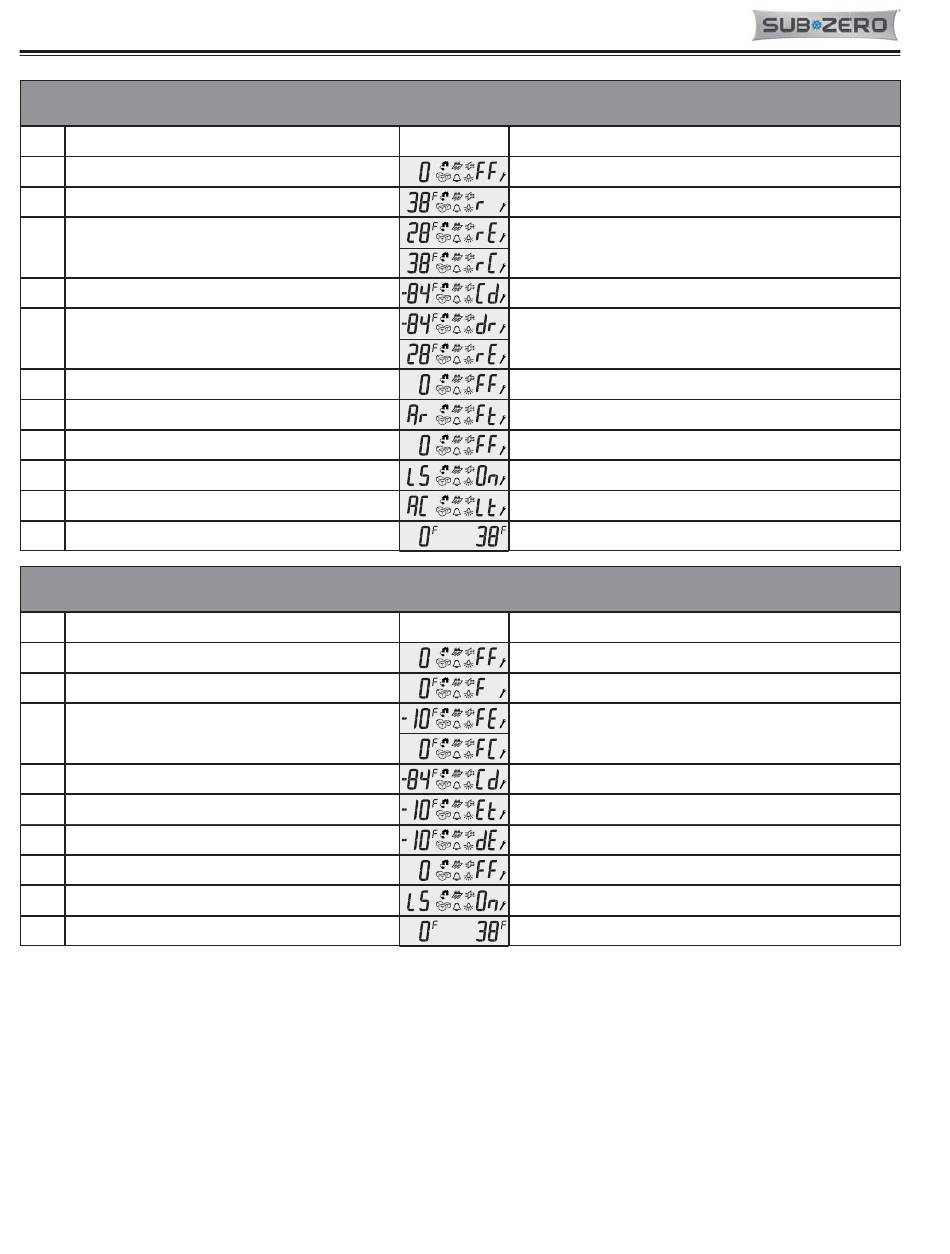

REFRIGERATOR ZONE MANUAL COMPONENT ACTIVATION TABLE

STEP FUNCTIONS / COMPONENT(S)
1 All Components OFF; All Lights OFF
2 Ref Compressor ON
3 Ref Evaporator Fan ON (Comp stays ON)
4 Condenser Fan ON (Comp/Evap fan stays ON)
Drawer Fan(s) ON (Comp/Evap/Cond fan
5
switch OFF)
6 Drawer Fan(s) OFF
7 Air Purifier Light & Fan ON
8 Everything OFF (Light relay ON/Lights OFF)
9 Main Lights ON
10 Accent/Display Lights ON
EXIT Normal ON Mode
STEP FUNCTIONS / COMPONENT(S)
1 All Components OFF; All Lights OFF
2 Fre Compressor ON
3 Fre Evap Fan ON (Comp stays ON)
4 Condenser Fan ON (Comp/Evap fan stays ON)
5 Defrost Heater ON
6 Defrost Heater ON; Evap Fan ON
7 All Components OFF; All Lights OFF
8 All Lights ON
EXIT Normal ON Mode
TABLE NOTES:
The LCD will show Celsius temperatures during this mode if the appliance has been set to display Celsius units of
measure.
F c
"-84 " or "-64 " will appear in place of temperature if the thermistor is open or missing. Which one appears depends
on whether the appliance is set to display Fahrenheit or Celsius units of measure.
7040317 - Revision A - September, 2015
Built-In (BI) Series
Built-In (BI) Series

FREEZER ZONE MANUAL COMPONENT ACTIVATION TABLE

LCD VIEW
OFF Displayed; All Lights OFF
Zone Temp & r Displayed; Actual temps will vary
Alternate Evap Temp & rE / Zone Temp & rC Display at
5 second intervals; Actual temps will vary
-84 (-64 if set Celsius) Cond. Temp & Cd Displayed
Alternate -84 (-64 if set Celsius) & dr / Evap Temp & rE
Display at 5 second intervals;
OFF Displayed; All Lights ON
Ar & Ft Displayed
OFF Displayed; All Lights OFF
LS & On Displayed; Main Lights ON; All else OFF
AC & Lt Displayed; All Lights ON
Touch POWER to exit, or let time out
LCD VIEW
OFF Displayed; All Lights OFF
Zone Temp & F Displayed; Actual temps will vary
Alternate Evap Temp & FE / Zone Temp & FC Display
at 5 second intervals; Actual temps will vary
-84 (-64 if set Celsius) Cond. Temp & Cd Displayed
Evap Temp & Et Displayed; Actual temps will vary
Evap Temp & dE Displayed; Actual temps will vary
OFF Displayed; All Lights OFF
LS & On Displayed; All Lights ON
Touch POWER to exit, or let time out
2-48
(SWS #4380000)
(SWS #4380000)
COMMENTS
COMMENTS
