Electronic Control
LIGHTS ICE MAKER MAX ICE

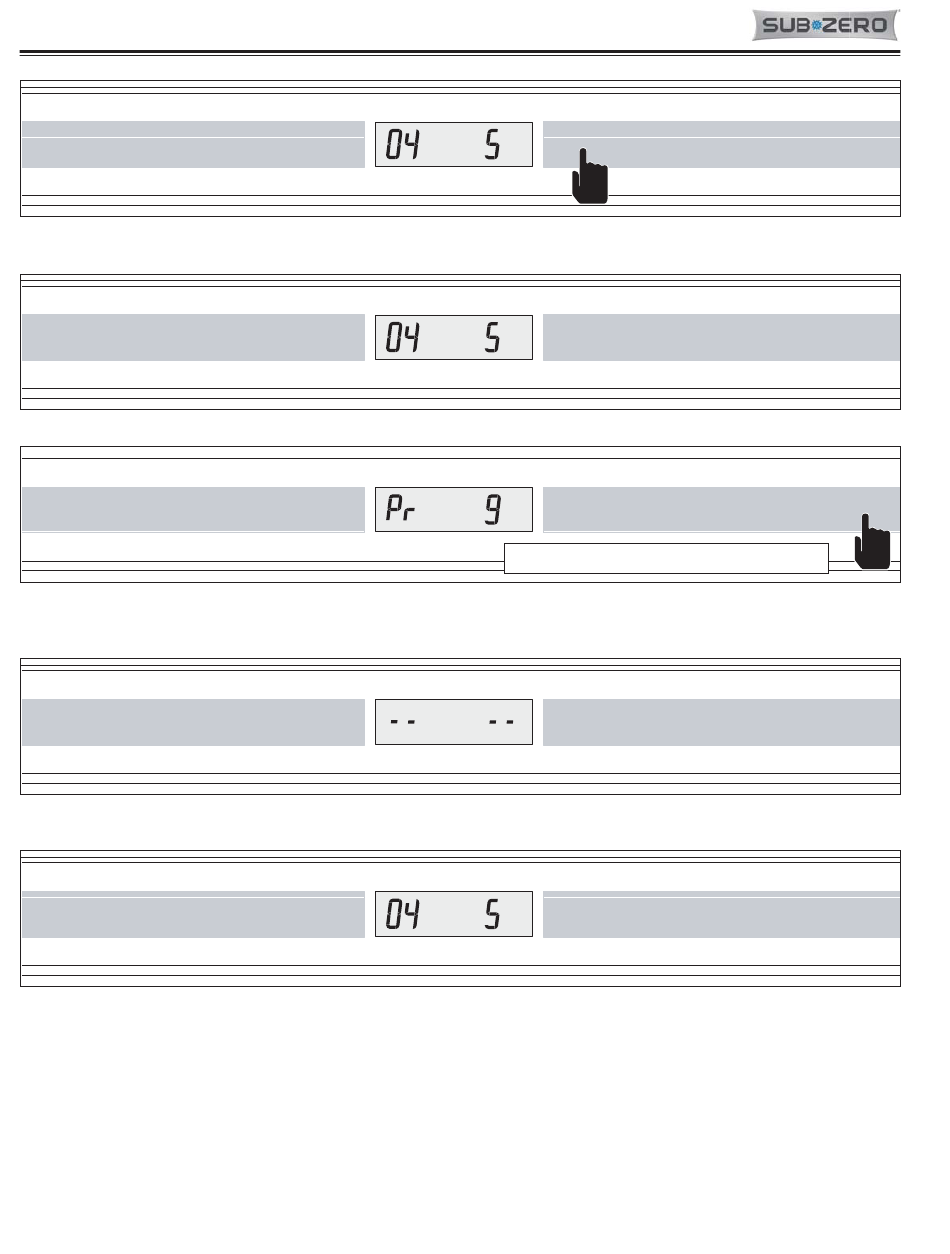

Figure 2-82. Toggle Through Model Codes with Multiple Key Strokes of COLDER or WARMER keys
Until Correct Model Code is Displayed (Example: on one Service Board "045" = BI-36U SWS #4250000)
LIGHTS ICE MAKER MAX ICE
Figure 2-83. Stop When Correct Model Code is Displayed (Code for BI-36U SWS #4250000 is desired)
LIGHTS ICE MAKER MAX ICE
Figure 2-84. Touch POWER Key when Correct Code is Displayed, "Pr" and "g" Appear on LCD
If Code was Correct Touch POWER Key Again Within Five (5) Seconds
LIGHTS ICE MAKER MAX ICE
LIGHTS ICE MAKER MAX ICE
Figure 2-85A. Unit then Restarts with Self Test, Followed by the Model Configuration Code being Displayed
NOTES:
• When scrolling through model codes, note that they do not appear in model numerical order.
• Follow instructions that accompany service control board as the codes do change according to serial number.
• After 30 seconds without a key stroke in model configuration mode, the unit exits the mode and reverts to the last
model configured or the default setting.
• If the ALARM key is pressed, or if either pair of WARMER and COLDER keys are pressed during model configura-
tion mode, the mode will be exited.
7040317 - Revision A - September, 2015
Built-In (BI) Series
Built-In (BI) Series
COLDER WARMER
COLDER WARMER
COLDER WARMER
Asking if the Code Displayed Should be Programmed/Stored
COLDER WARMER
Figure 2-85. Double Dashes are Displayed
The unit then shuts down for approximately 2 seconds
COLDER WARMER
for 3 Seconds (Example: "045" = BI-36U SWS #4250000)
Then Temperature Displays. Configuration is Complete.
(SWS #4380000)
(SWS #4380000)
COLDER WARMER
COLDER WARMER
COLDER WARMER
Touch POWER key twice within 5 seconds
COLDER WARMER
COLDER WARMER
