Along with the temperature and index number, a thermistor location code will flash at three (3) second intervals in
the first index digit area ("r" = Refrigerator, "r" followed by "E" = Refrigerator Evaporator, "F" = Freezer, "F" followed
by "E" = Freezer Evaporator - See Figure 2-72 and 2-73).
Touching the WARMER key (See Figure 2-74) while in Temperature Log Recall Mode will toggle up through the
indexes, from 1 to 240, while touching the COLDER key (See Figure 2-75) will toggle down through the indexes.
NOTE: Temperature Log Recall Mode will end twenty (20) seconds after the last key stroke.
LIGHTS ICE MAKER MAX ICE

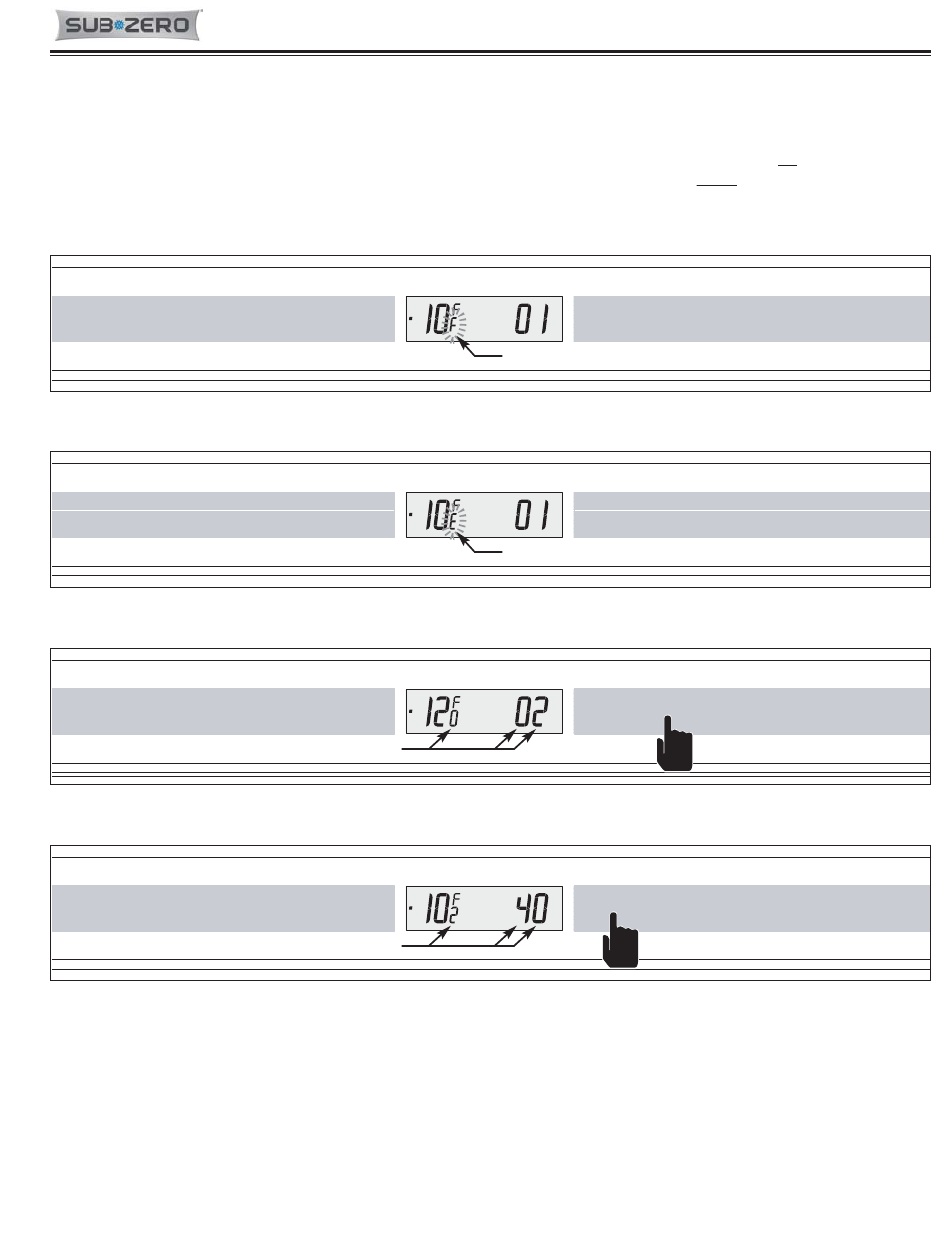

Figure 2-72. Thermistor Location Code Flashes at 3 second intervals (F then E = Freezer Evaporator)
LIGHTS ICE MAKER MAX ICE
Figure 2-73. Thermistor Location Code Flashes at 3 second intervals (F then E = Freezer Evaporator)
LIGHTS ICE MAKER MAX ICE
Figure 2-74. Toggle UP Through Indexes - Touch and Hold WARMER Key, or Touch in Multiple Key Strokes
LIGHTS ICE MAKER MAX ICE
Figure 2-75. Toggle Down Through Indexes - Touch and Hold COLDER Key, or Touch in Multiple Key Strokes
(SWS #4380000)
(SWS #4380000)
COLDER WARMER
COLDER WARMER
COLDER WARMER
Index 002
COLDER WARMER
Index 240
COLDER WARMER
Location Code Flashes Every 3 Seconds (F=Freezer)
COLDER WARMER
Location Code Flashes Every 3 Seconds (E=Evaporator)
COLDER WARMER
COLDER WARMER
2-43
Electronic Control
PURE AIR ALARM
PURE AIR ALARM
PURE AIR ALARM
PURE AIR ALARM
7040317 - Revision A - September, 2015
