Manual Component Activation Mode

Manual Component Activation Mode allows a Service Technician to activate and toggle through various unit func-
tions while observing the corresponding function codes and associated temperatures in the LCD. This mode also
allows for voltage checks at the activated components without having to wait for the zone to call for cooling.
To initiate Manual Component Activation Mode, the unit must first be ON and in Diagnostic Mode (See Figure 2-86).
NOTE: If Fault Codes have been logged the control will enter Fault Code Recall Mode instead of Diagnostic Mode.
If this happens touch the ALARM key to shift the electronic control system into Diagnostic Mode.
While in Diagnostic Mode, and keeping in mind that the components can be activated in only one zone at a time,
touch and hold the desired zone's COLDER key and the POWER key for ten (10) seconds (See Figures 2-87 and 2-
88), at which time all cooling functions will stop; the letters "OF" and "F" will appear in the LCD, and all icons in the
LCD will illuminate.
The chosen zone's components can now be forced to ON for five (5) minutes, or back to the OFF states using the
WARMER or COLDER keys, with the WARMER key activating the next step (component), while the COLDER key
would activate a previous step (component). (See Manual Component Activation Tables on next page).
NOTE:
• All temperatures displayed are current, real-time temperatures without weighted averaging or offsets.
• Touching any key (other than the POWER or ALARM) during this mode restarts the five (5) minute timer.
• Touching the POWER key during this mode forces the control back into Diagnostic Mode.
• Touching the ALARM key will exit the mode, and return the unit to normal operation.
LIGHTS ICE MAKER MAX ICE

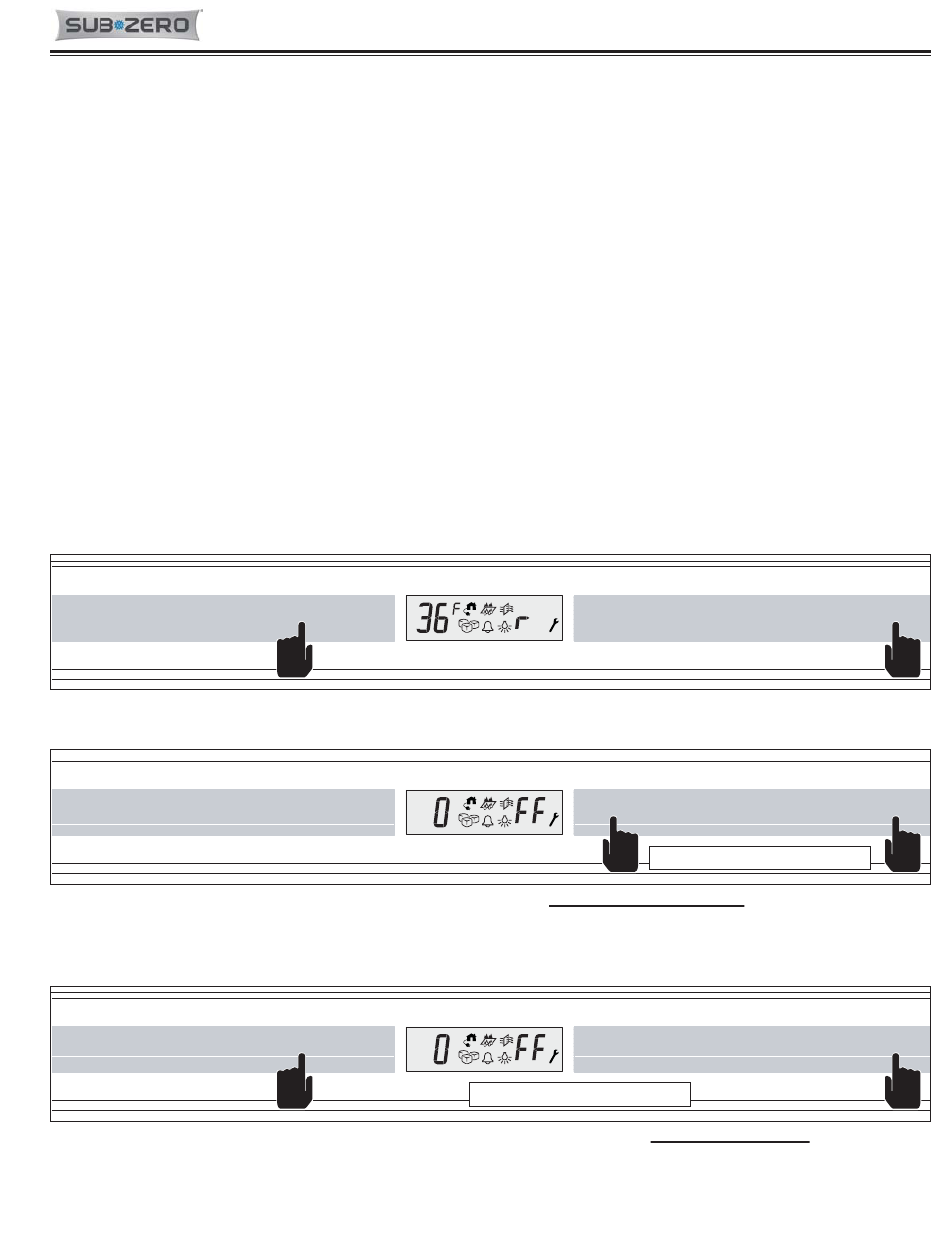

Figure 2-86. Initiate Diagnostic Mode First - Touch and Hold Either COLDER Key, Then the POWER Key
LIGHTS ICE MAKER MAX ICE
Figure 2-87. Initiate Manual Component Activation Mode for Refrigerator Component - While in Diagnostic
Mode, Touch and Hold Refrigerator COLDER and POWER for ten (10) seconds, Then Touch Refrigerator
WARMER or COLDER Key to Activate Components as Indicated in Table on Next Page
LIGHTS ICE MAKER MAX ICE
Figure 2-88. Initiate Manual Component Activation Mode for Freezer Component -
While in Diagnostic Mode, Touch and Hold Freezer COLDER and POWER for ten (10) seconds,
Then Touch Freezer WARMER or COLDER Key to Activate Components as Indicated in Table on Next Page
