Electronic Control

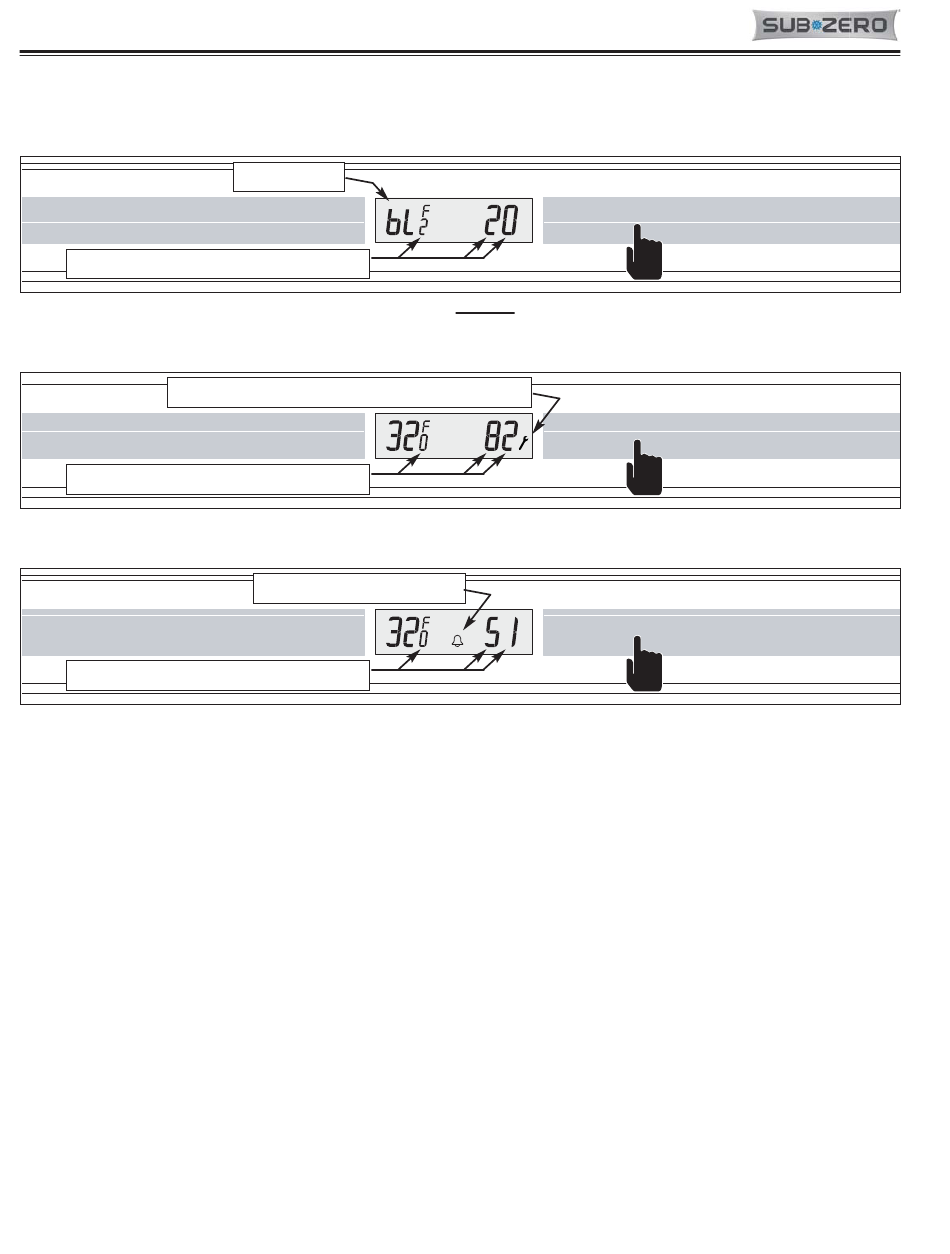

Temperature Log Event Indicators - The diagrams below illustrate possible event indicators that may be
observed while in Temperature Log Recall Mode. (See Figures 2-76 through 2-78)
LIGHTS ICE MAKER MAX ICE
Index of occurrence (220 in this example)
Figure 2-76. "bL" Indicates Index is "BLANK" = No Temperature Logged Yet
(Only possible within first 5 days of unit operation, or after new control board is installed during service)
Indicates POWER key touched, switching unit OFF
LIGHTS ICE MAKER MAX ICE
Index of occurrence (82 in this example)
Figure 2-77. SERVICE Icon Illuminates = Unit was switched OFF During Index by Touching POWER Key
LIGHTS ICE MAKER MAX ICE
Index of occurrence (51 in this example)
Figure 2-78. Bell Illuminates = Indicates Supply Power Failure / Interruption During that Index Period
Temperature Log NOTES:
• If Manual Compartment Disable Mode has been activated during any of the indexes, average temperatures will
continue to be logged, but no event indicator will appear with these temperatures.
• If the unit was in Showroom Mode during any of the indexes, average temperatures will continue to be logged, but
no event indicator will appear with these temperatures.
• If the unit was switched OFF by touching the POWER key during any of the indexes and there was still power sup-
plied to the unit, the average temperatures will continue to be logged. This means temperatures would be expect-
ed to rise and the SERVICE indicator would be present in all indexes in which the unit was switched OFF.
• Temperature Log Recall Mode will end 20 seconds after the last key stroke.
7040317 - Revision A - September, 2015
Built-In (BI) Series
Built-In (BI) Series
"bL" = Blank
COLDER WARMER
COLDER WARMER
Indicates power interruption
COLDER WARMER
(SWS #4380000)
(SWS #4380000)
COLDER WARMER
COLDER WARMER
COLDER WARMER
2-44
