Fault Code Table With Lcd Correlation Diagram - Sub-Zero Wolf BI Series Service Manual

Electronic Control

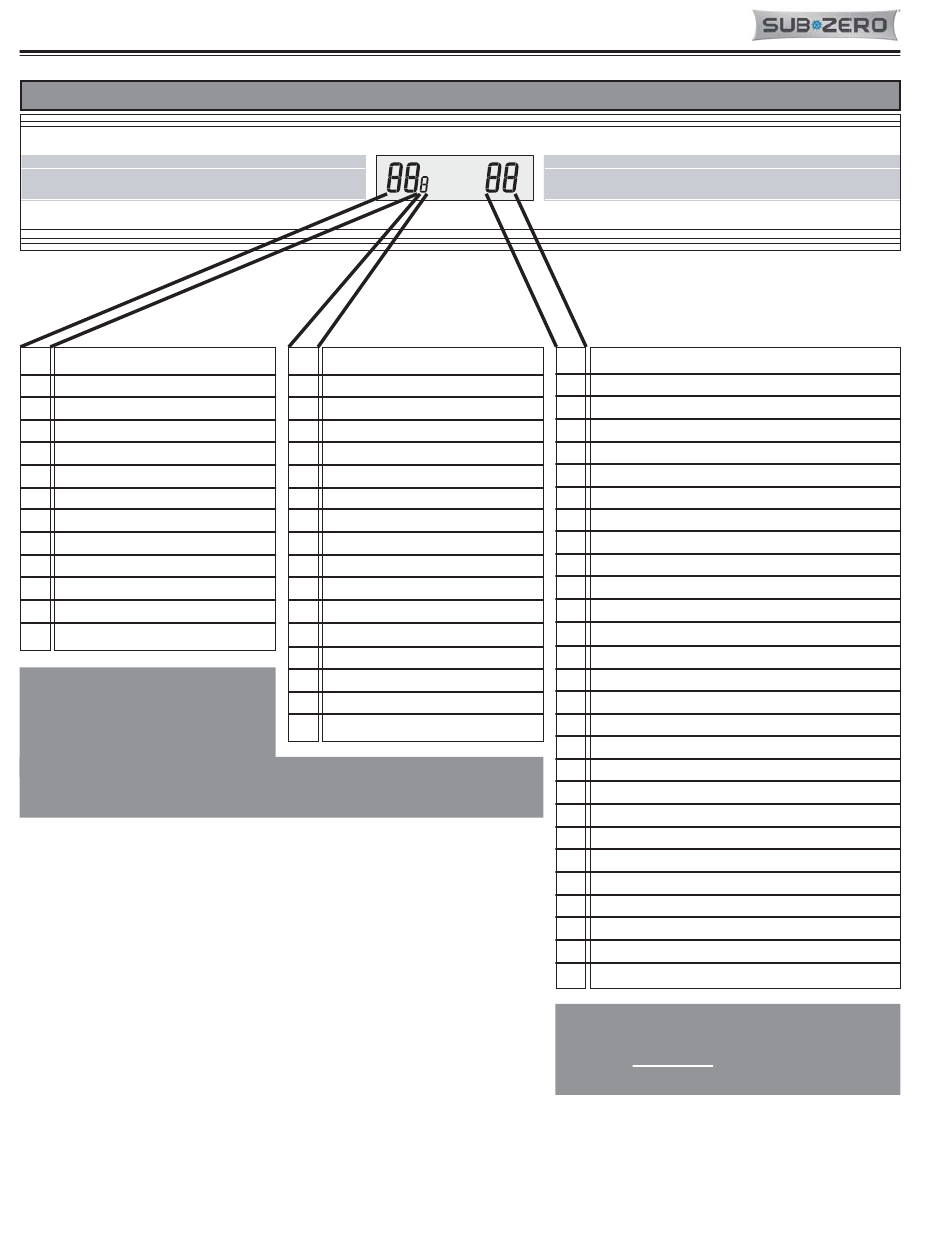

FAULT CODE TABLE WITH LCD CORRELATION DIAGRAM ( PAGE 1 of 2 )
LIGHTS ICE MAKER MAX ICE
10 Thermistor Faults
15 Relay Faults
20 Defrost Heater Faults
30 Ice/Water/Accessory Faults
35 Fan Faults
40 Runtime Faults
44 Glass Heater Faults
45 Lighting Faults
50 Flow Meter
60 Load/Component Faults
90 Control Faults
95 Diagnostics
98 Power Faults
NOTE: These Columns are repeated on next page
NOTE: There are three fault codes not covered in this table, they are "LO C", "H2 LO" and "dO Or". These are
explained under the heading of "Possible Instruction and Error/Fault Indicators" earlier in this section
7040317 - Revision A - September, 2015
Built-In (BI) Series
Built-In (BI) Series
COLDER WARMER
0 Misc
1 Refrigerator
2 Freezer
3 Condenser
4 Defrost System
5 Control System
6 Compressors
7 Ambient
8 Icemaker
9 Dispenser
A Air Purifier
d TC Drawer
F Freezer Evaporator
H High Voltage System
L Lighting
r Refrigerator Evaporator
U Water Systems
(SWS #4380000)
(SWS #4380000)
COLDER WARMER
00 Open
01 Short/Closed
02 Unstable
05 Miswire normal temps
06 Miswire overheat
07 Bad Ohms
09 Too Warm/Large Temp Differential
10 Second Device Open
11 Second Device Short/Closed
12 Second Device Unstable
20 Third Device Open
21 Third Device Short/Closed
22 Third Device Unstable
25 Diagnostics Failure
30 Valve Enabled Too Long
33 Speed Setting too Low
34 Speed Setting too High
35 Fan speed error
36 Fan current too low
37 Fan current too high
38 Fan Power Output Fault
39 DC Fan Output Fault
40 Excessive runtime
42 Primary Heater Fault
43 Secondary Heater Fault
44 Door Heater Output Fault
45 Burned out Light
46 No Position/State Detect
2-40
PURE AIR ALARM
NOTE: This Column is
continued on next page
.
POWER
