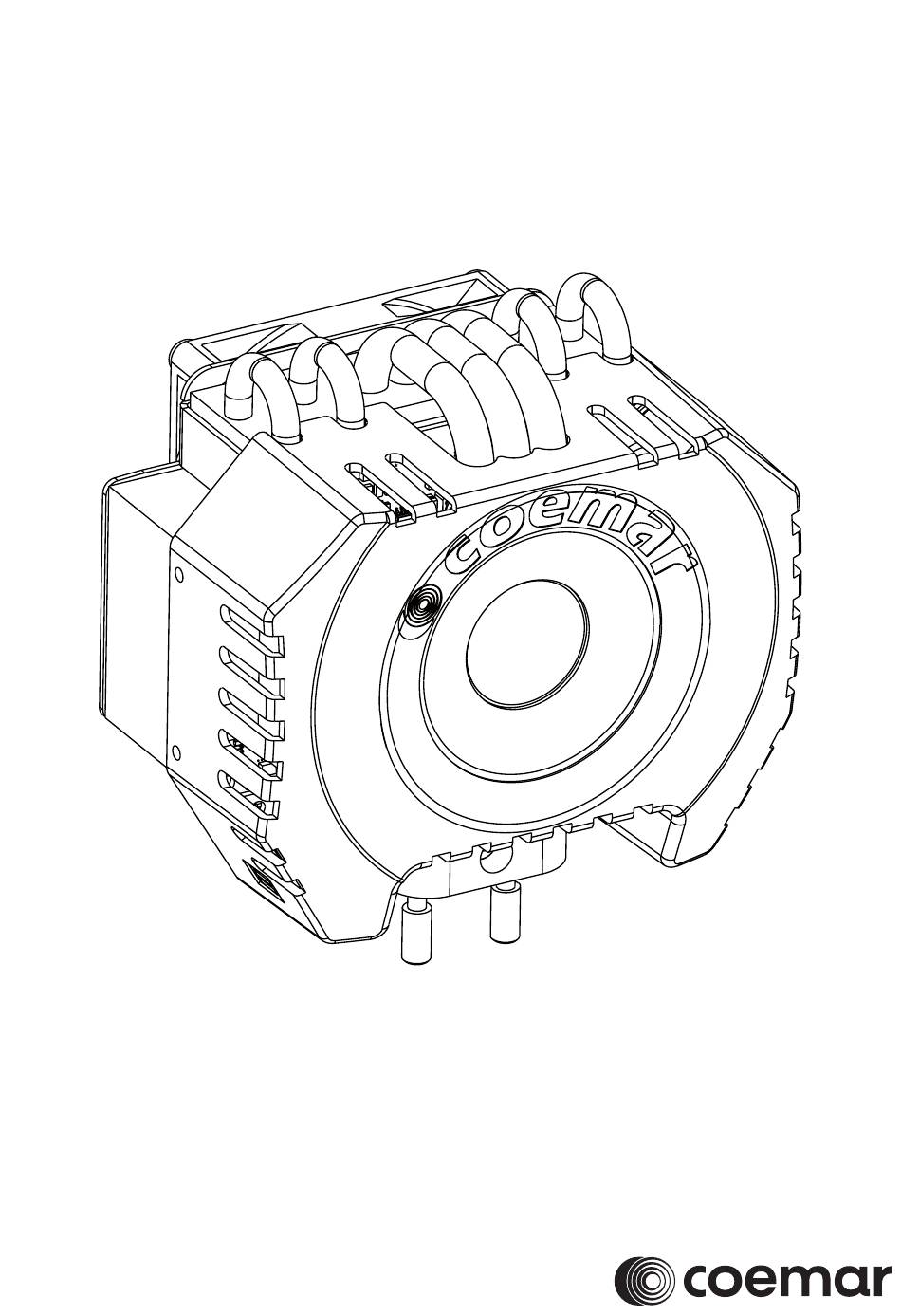

- Page 1 ReLite Led HD USER MANUAL vrs. 3.5 - 19.07.2023...
- Page 2 Coemar ®. If you are downloading files from our web pages for your personal use, make sure to check for updated versions. Coemar ® cannot take any liability whatsoever for downloaded files, as technical data are subject to change without notice.
-
Page 3: Table Of Contents
Italiano Index 1. Packaging and transportation ...................Pag. 4 1.1 Packaging ...........................Pag. 4 1.2 Transportation .......................Pag. 4 2. General information ......................Pag. 4 2.1 Safety informations ....................... Pag. 4 2.2 Warranty conditions ..................... Pag. 5 2.3 EC norms ........................Pag. 5 3. -
Page 4: Packaging And Transportation
1 ReLite Led HD 1 Instruction manual Transportation The ReLite Led HD must be transported exclusively in its original packaging (we suggest to pull it away from your products before any product movement, mainly for the GX9.5 e GY16 pins). -
Page 5: Warranty Conditions
Italiano 3. The level of technology of ReLite Led HD requires the use of specialized personnel for all service applications; refer all work to your authorised Co- emar service centre. 4. A good earth connection is essential for the proper functioning of the pro- jector. -
Page 6: Product Specifications
Italiano . Product specifications Technical characteristics Power supply 100-240 V, auto-sensing, 50/60 Hz Maximum current 0.8 A at 230 V, 1.7 A at 110 V Power factor Cosφ > 0.9 Max power consumption 160 W Color temperature Tungsten: 3200 K - Daylight: 5600 K Color Rendering Index (CRI) avg. -
Page 7: Unit's Main Components
Italiano Unit’s main components Components description A Led Heatsink C Dip-switches Pin Base Cover... -
Page 8: Installation
Italiano Installation Mechanical installation 1. With ReLite Led HD will be possible to give new life to your projector, simply replacing the old lamp with the ReLite Led HD. Note: the fixture’s reflector needs to be removed before the installation. - Page 9 2. Pay attention when inserting the ReLite Led HD into the socket. Do not push the ReLite Led HD from above, but pull it down taking it from the sides. If this step is not respected, the Heat Pipes could bend and damage or, since the Heat Pipes are mechanically connected to the LED, the LED may decentralize.
-
Page 10: How To Install G38 Adaptor
Italiano How to install the G38 adaptor Make sure the ReLite Led HD is not powered; unscrew the screws on both sides (pic. 01), insert it directly into the G22 socket (pic. 02). Tighten the side screws (pic. 03) -
Page 11: Powering Up
All connections should be carried out by a suitably qualified personnel. . Turning the ReLite HD on After having followed the previous steps, turn on the projector, in which the ReLite Led HD is installed, connecting it to the mains power. -
Page 12: Spare Parts
Italiano Spare parts All ReLite Led HD’s spare parts are available from your Coemar service centers. Specifying in detail the projector model and the replacement part requested, will help the service center to serve you in the best way. Code Accessory name O378.002... -
Page 13: Maintenance
If necessary, replace the worn parts. . F.A.Q. and answers The following list shows common issues that may be easily solved. If issues persist, the unit must be repaired by qualified personnel or just contact your Coemar service near you. Question Possible solution Projector not powered: •... -
Page 14: Usage Warnings
5. If only few ReLite Led HD are connected to a power unit of a certain size (2000 W), an additional component called dump load resistor is required, which will charge extra watt to activate the triacs. -
Page 15: User Notes
Italiano User notes ............................................................................................................................................................................................................................................................................................................................................................................ - Page 16 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
- Page 17 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italia tel. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
