Summary of Contents for Wren Drawer Frontal

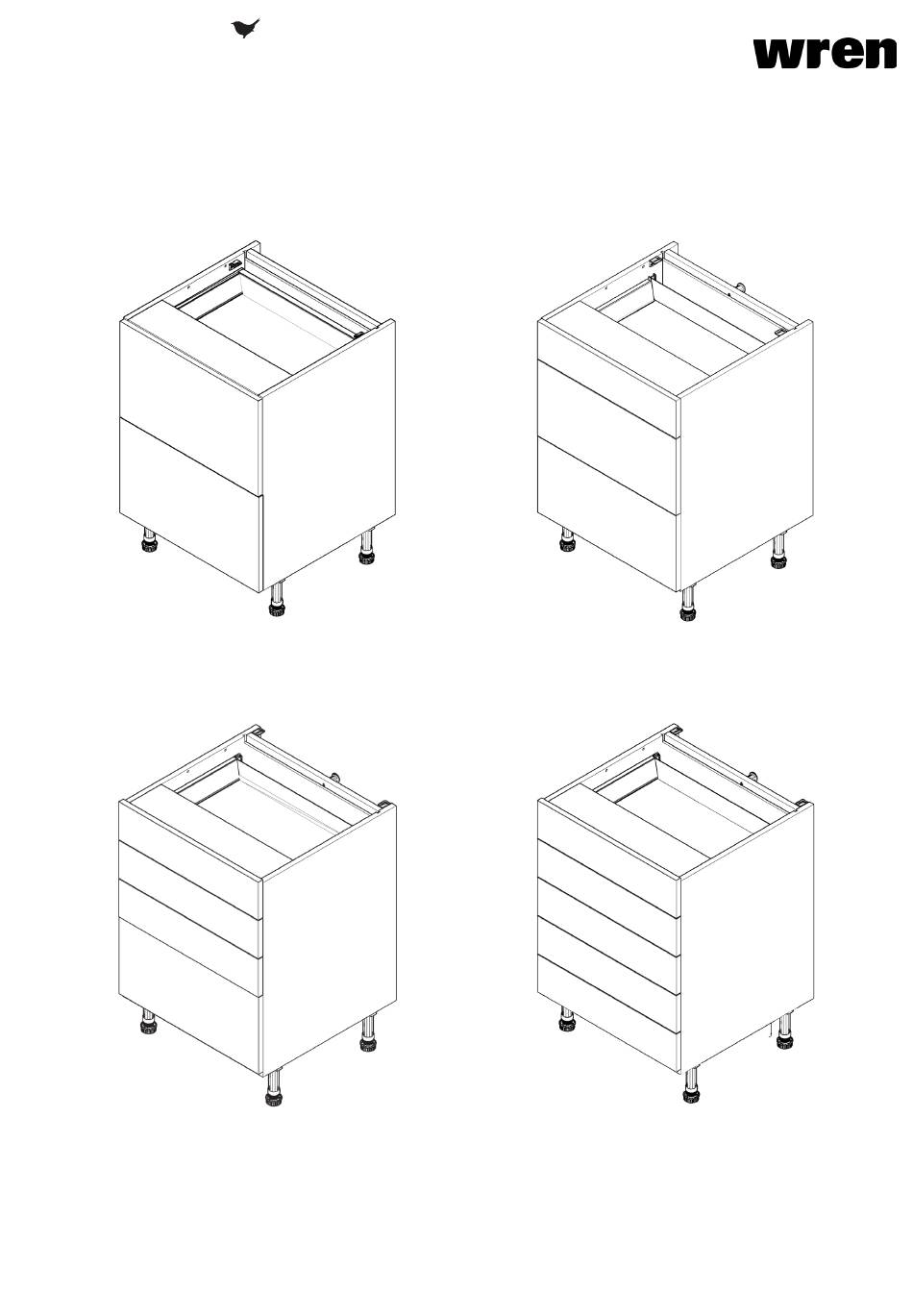

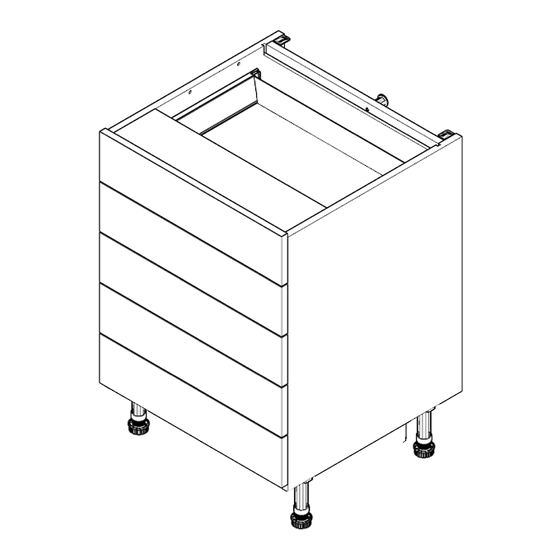

- Page 1 FRONTALS Drawer Frontal Replacement Guide Drawer units shown for illustrative purposes only. For Internal Use: FI.WR.INS.076_WKIN0066_Drawer_ReplaceFRTL_Rev7...
- Page 2 FRONTALS Drawer Frontal Replacement Guide For Internal Use: FI.WR.INS.076_WKIN0066_Drawer_ReplaceFRTL_Rev7...
-
Page 3: Table Of Contents
FRONTALS Drawer Frontal Replacement Guide CONTENTS Grass Drawer Box Removal Grass Drawer Box Insertion Grass Standard Drawer Grass Deep Drawer 5 - 6 Grass Glass Drawer TM Drawer Box Removal TM Drawer Insertion TM Standard Drawer TM Mid & Deep Drawer TM Mid &... -
Page 4: Grass Drawer Box Removal
FRONTALS Drawer Frontal Replacement Guide Removing a drawer is the same process for GRASS DRAWER BOX REMOVAL Standard, Mid, Deep and Glass Drawers. Step 1. Open the drawer that is required to be removed. Pull out the drawer until the runners are at full extension. - Page 5 FRONTALS Drawer Frontal Replacement Guide Installing a drawer is the same process for GRASS DRAWER BOX INSTALLATION Standard, Mid, Deep and Glass Drawers. Step 1. Fully extend the drawer runners out of the unit (for the drawer you are inserting).
-
Page 6: Grass Standard Drawer
Press in the fixing clips half way, located at the bottom of the frontal on both sides of the drawer. Adjust the position of the drawer frontal, left or right. Release the frontal fixing clips on both sides of the drawer to secure the frontal in the new position. -
Page 7: Grass Deep Drawer
Press in the fixing clips half way, located at the bottom of the frontal on both sides of the drawer. Adjust the position of the drawer frontal, left or right. Release the frontal fixing clips on both sides of the drawer to secure the frontal in the new position. -
Page 8: Grass Glass Drawer
FRONTALS Drawer Frontal Replacement Guide GRASS GLASS DRAWER Gallery Rail Head Fixing Clip Deep Drawer Standard Fixing Deep Fixing Step 1. Attach the frontal fixings standard and deep to the draw frontal using 5 x 15mm screws using the screw hole positions as shown on both sides. - Page 9 Press in the fixing clips half way, located at the bottom of the frontal on both sides of the drawer. Adjust the position of the drawer frontal, left or right. Release the frontal fixing clips on both sides of the drawer to secure the frontal in the new position.
-
Page 10: Tm Drawer Box Removal
FRONTALS Drawer Frontal Replacement Guide Removing a drawer is the same process for TM DRAWER BOX REMOVAL Standard, Mid, Deep and Glass Drawers. Step 1. Open the drawer that is required to be removed. Pull out the drawer until the runners are at full extension. - Page 11 FRONTALS Drawer Frontal Replacement Guide Installing a drawer is the same process for TM DRAWER BOX INSTALLATION Standard, Mid, Deep and Glass Drawers. Step 1. Fully extend the drawer runners out of the unit (for the drawer you are inserting).
-
Page 12: Tm Standard Drawer
Step 2. Push fit drawer side fixing clips onto drawer side. Step 3. Drawer frontal adjustment - See page 12 for details. Step 4. Fit drawer cover caps over drawer side adjustment. See page 13 for more details. For Internal Use: FI.WR.INS.076_WKIN0066_Drawer_ReplaceFRTL_Rev7... -
Page 13: Tm Mid & Deep Drawer
Head Step 4. Drawer frontal adjustment - See page 12 for details. Step 5. Fit drawer cover caps over drawer side adjustment. See page 13 for more details. For Internal Use: FI.WR.INS.076_WKIN0066_Drawer_ReplaceFRTL_Rev7... -
Page 14: Tm Mid & Deep Glass Drawer
Depress the rear end clip release catch and lift to remove the Glass Side side. Fixing Clip Step 4. Drawer frontal adjustment - See page 12 for details. Step 5. Fit drawer cover caps over drawer side adjustment. See page 13 for more details. For Internal Use: FI.WR.INS.076_WKIN0066_Drawer_ReplaceFRTL_Rev7 Page 11... -
Page 15: Tm Drawer Adjustment
Drawer Frontal Replacement Guide TM DRAWER ADJUSTMENT Left and Right Adjustment Turn the screw shown to adjust the drawer frontal left & right. Repeat on both sides. Up & Down Adjustment Turn the screw shown to adjust the drawer frontal up & down. -
Page 16: Tm Drawer Side Cover Cap
FRONTALS Drawer Frontal Replacement Guide TM DRAWER SIDE COVER CAPS Step 1 Fit drawer cover caps over drawer side adjustment. Position the edge closest to the frontal first. Drawer cover cap Step 2 Position the far side edge into place.
