5 Terminals
SIVS 610-0

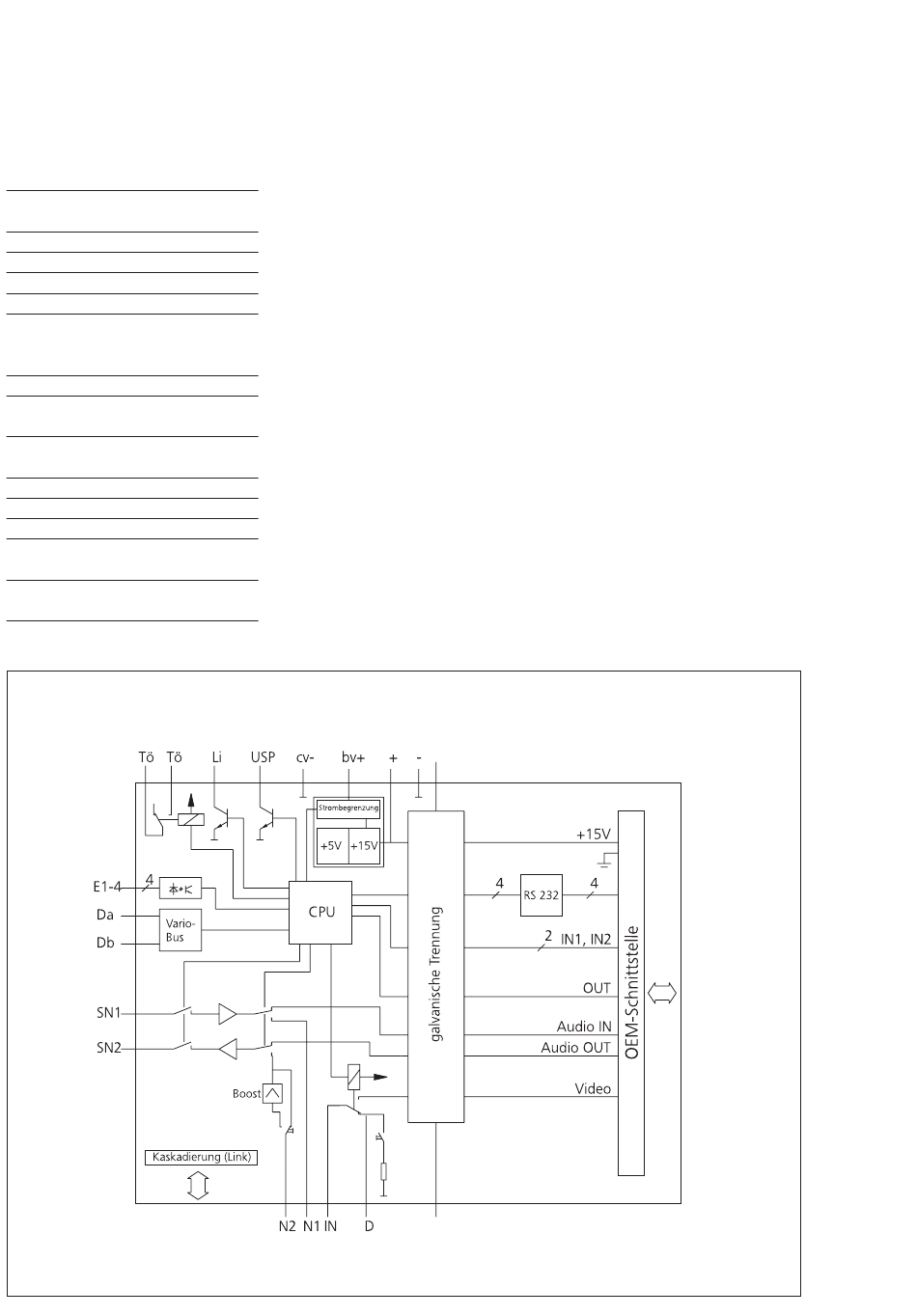

Block diagram SIVS 610-0
G Reference for the inputs
E1–E4
E4 Input 4, not used
E4 Input 3, not used
E4 Input 2, not used
E4 Input 1, not used
cv- Pick off supply voltage
bv+ for Vario bus, 15 V DC,
max. 300 mA
Da/Db Vario bus
+ Supply voltage
- 24-30 V DC
DR Not used,
DR DR via TLC 640-02
Li not used
USP Not used
SN1 RF signal, path
SN2 SIM 740-... to
SIVS 610-...
n1 RF signal for connected
n2 DCA 740-01
