Bus door loudspeaker module, bus call button modules, camera module
8

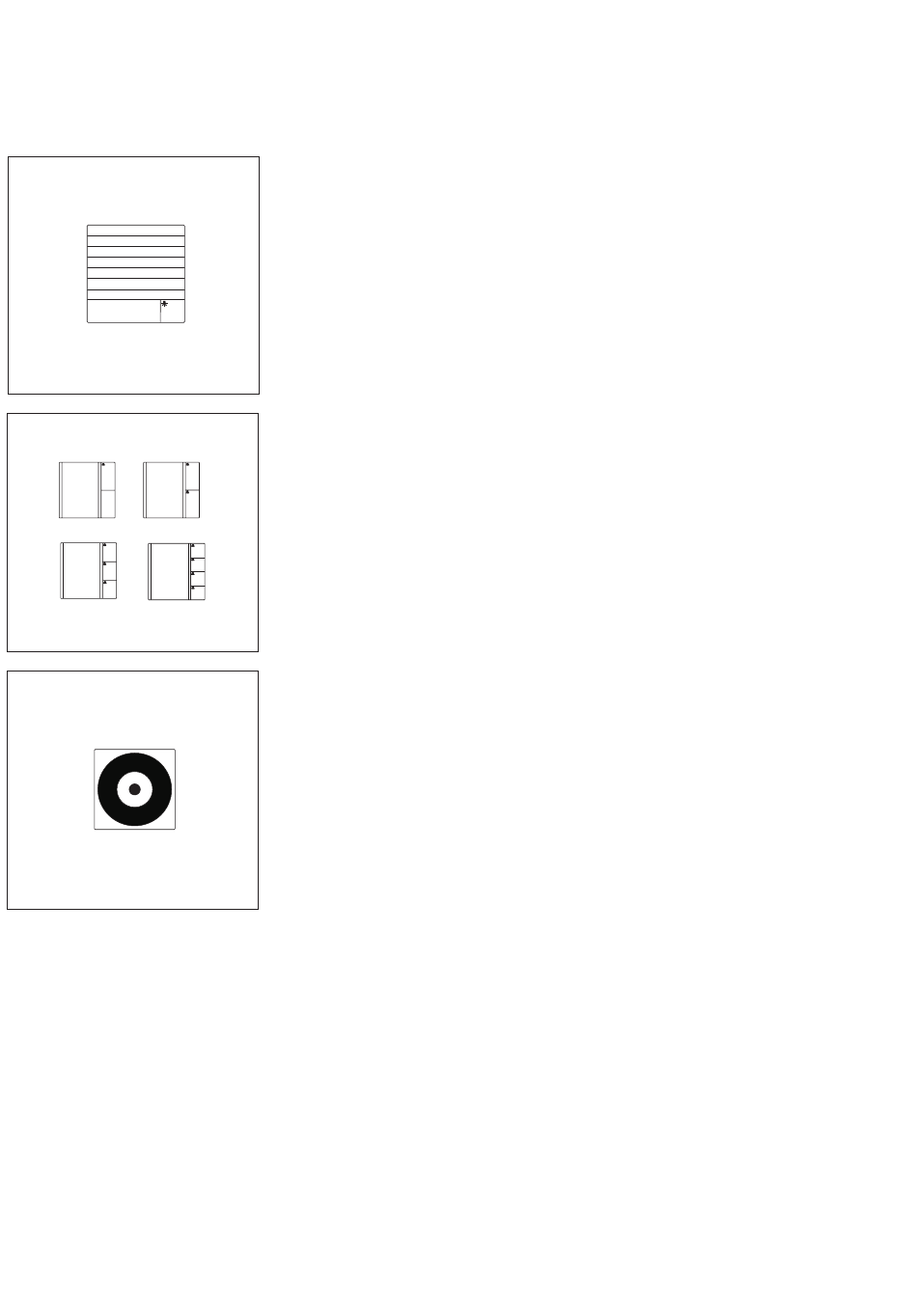

BTLM 650-04
Bus door loudspeaker module for
In-Home bus.
Loudspeaker and microphone
integrated, illuminated light button,
integrated door release contact (DR)
Contact load max. 15 V AC,
30 V DC, 2 A, switching time DR
fixed at 3 seconds. Acoustic
feedback when actuating the call
buttons.
BTM 650-01 - BTM 650-04
Bus call button modules for In-Home
bus.
1-4 call buttons, integrated LED
lighting. Connection via ribbon cable
to the bus door loudspeaker. Supply
to the LED lighting via terminal
b and c with 12 V AC, current
consumption 25 mA per bus call
button module BTM 650-... .
BCMC 650-...
Bus colour camera module for
Siedle-In-Home bus: Video.
Integrated 2-step heating, day/night
switching, infrared lighting and
video signal converter. Supply via
Siedle In-Home bus: Video, heating
supply 12 V AC, 100 mA.
