Components And Specifications - Guardian Fall Protection Halo SRL-LE Instruction Manual

Compatibility: When making connections with Halo SRL-LE, eliminate all possibility of roll-out. Roll-out occurs
when interference between a hook and the attachment point causes the hook gate to unintentionally open
and release. All connections must be selected and deemed compatible with Halo SRL-LE by a Competent
Person. All connector gates must be self-closing and self-locking, and withstand minimum loads of 3,600 lbs.

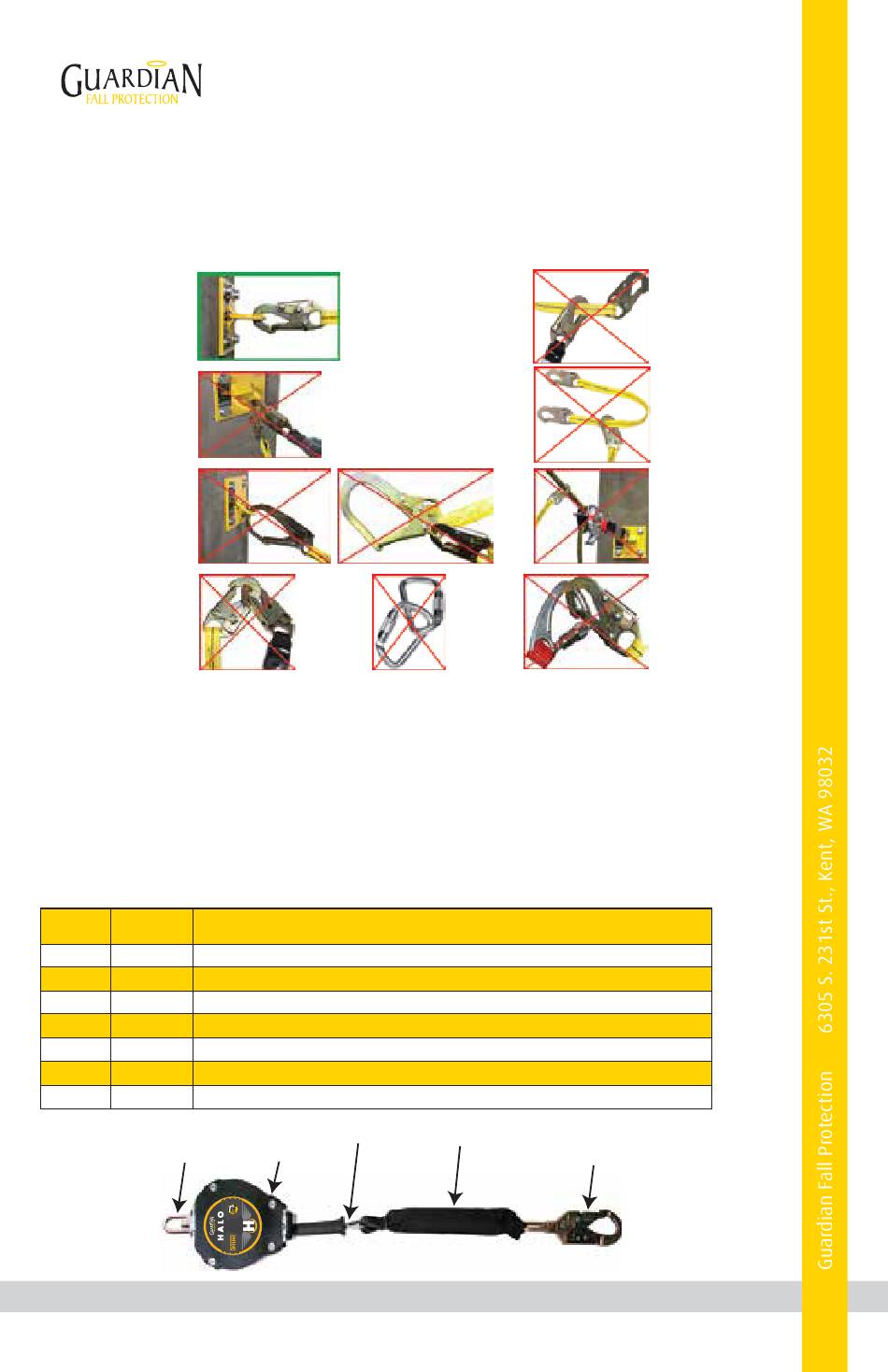

See the following for examples of compatible/incompatible connections:
Connector
closed and
locked to
D-ring. OK.
Two connectors
to same
NO.
D-ring.
Incompatible
or irregular
application,
which may
increase risk
of roll-out. NO.
Two or more
snap hooks or
carabiners
connected to
each other. NO.

Components and Specifications

Materials: aluminum, galvanized steel, stainless steel, zinc-plated steel, polyester, and nylon.
Average arrest force: 900 lbs.
LE Use:
Min. setback distance from edge: 0'
Max. arresting distance: 54" - 102"
Min. fall clearance: 17' - 21'
Part # Length
10920 20'
10922 25'
10924 50'
10925 30'
10927 50'
10928 65'
10929 65'
Carabiner
Connection Point
3
Non-LE Use:
Max. arresting distance: 54"
Min. fall clearance: 9'
Class B SRL
3/16" Galvanized Cable SRL-LE w/Shock Pack, Swivel Top, Snap Hook, Boot Cover, & Carabiner
3/16" Galvanized Cable SRL-LE w/Shock Pack, Swivel Top, Snap Hook, Boot Cover, & Carabiner
3/16" Nylon-Coated Galvanized Cable SRL-LE w/Shock Pack, Swivel Top, Snap Hook, Boot Cover, & Carabiner
3/16" Galvanized Cable SRL-LE w/Shock Pack, Swivel Top, Snap Hook, Boot Cover, & Carabiner
3/16" Galvanized Cable SRL-LE w/Shock Pack, Swivel Top, Snap Hook, Boot Cover, & Carabiner
3/16" Galvanized Cable SRL-LE w/Shock Pack, Swivel Top, Snap Hook, Boot Cover, & Carabiner
3/16" Nylon-Coated Galvanized Cable SRL-LE w/Shock Pack, Swivel Top, Snap Hook, Boot Cover, & Carabiner
Cable Lifeline
Housing
Description
Shock Absorber Connector
(Snap Hook)
Connector
to integral
lanyard.
NO.
Connector
directly to
webbing.
NO.
Connector
directly to
horizontal
lifeline. NO.
