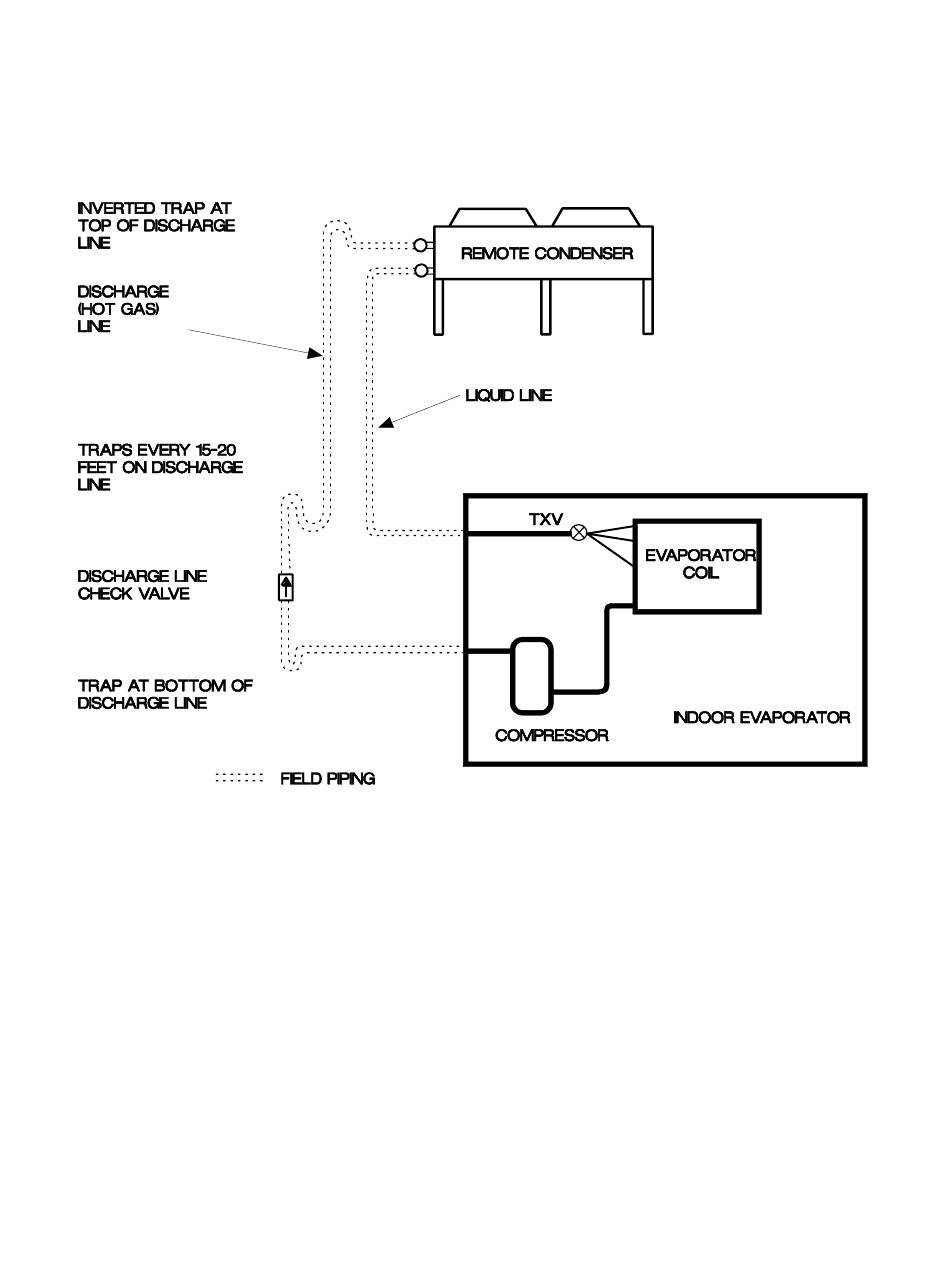

2.7.5 Field Piping, Remote Condenser

2.7.6 Water/Glycol Cooled Unit Piping

Water/Glycol-cooled units are factory-charged and tested. Field-supplied and field-
installed piping is required from the unit to building water or tower water sources or the
fluid cooler (i.e., dry cooler) and pump package. Pipe size will depend on length of run
and the maximum water flow required.
The required field installed fluid cooler pipe sizes may or may not be the same as the
connection sizes on the fluid cooler (refer to the Fluid Cooler User Manual for
connection sizing). This will depend on the length of pipe and the calculated pressure
drop of peripheral components.
Shutoff valves (field provided) should be installed within a few feet of the inlet and
outlet connections of the evaporator to allow the unit to be isolated for service.
